Quality Product Is Our Passion; Service&Innnovation Is Our Mission.

|
| Place of Origin: | China |
| Brand Name: | NANYA |
| Certification: | CE... |
| Model Number: | BY043 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD200000 |
| Packaging Details: | Export standard |
| Delivery Time: | 60-75 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100+ |
| Material: | Sugarcane Pulp, Bamboo Pulp, Wood Pulp, Straw Pulp | Forming: | Vacuum Suction&thermalforming |
|---|---|---|---|
| Drying: | Dry In Mold | Drive: | Servo |
| Voltage: | 220-440V | Dimension: | 4700*2000*2510mm |
| Weight: | 8564kg | Capacity: | 2000-10000pcs/h |
| Certificate: | CE,TUV,SGS |
Description
BY series automatic tableware production line is composed of pulping system, molding system, vacuum system, high pressure water system and air pressure system. Using sugarcane pulp, bamboo pulp, wood pulp, reed pulp, straw pulp and other pulp boards as raw materials, it can produce disposable pulp molded tableware. The raw material is prepared into a certain concentration of pulp by the process of shredding, grinding, adding chemical additives, etc., and then the pulp is uniformly attached to the customized mold to form a wet product through the vacuum effect,and drying is also done by the forming machine,after drying,the robot will transfers the product to the trimming machine.
Details:
Specifications:
| Model Type | TA-01B | TA-02B | TA-05B | TA-10B |
| Capacity | 1800pcs/h | 3500pcs/h | 6000pcs/h | 10000pcs/h |
| Workshop Requirement | 200m2 | 230m2 | 600m2 | 1200 m2 |
| Electricity Consumption | 120kw | 390kw | 550kw | 1100kw |
| Electricity Installed | 200kw | 250kw | 880kw | 1700kw |
| Material Consumption | 25~30kg/h | 50~60kg/h | 120~150kg/h | 250~300kg/h |
| Water Consumption | 80~100kg/h | 150~200kg/h | 500~600kg/h | 1000~1200kg/h |
| Worker Requirement | 3 persons | 4 persons | 6 persons | 10 persons |
| Container Requirement for Shipment | 1 x 40’HQ | 2 x 40’HQ | 4 x 40’HQ | 8 x 40’HQ |
| Forming Type | Vacuum suction, thermoforming | Vacuum suction, thermoforming | Vacuum suction, thermoforming | Vacuum suction, thermoforming |
| Drying Method | Drying in mould | Drying in mould | Drying in mould | Drying in mould |
Notes:
| ||||
Competitive Advantages:
Applications:

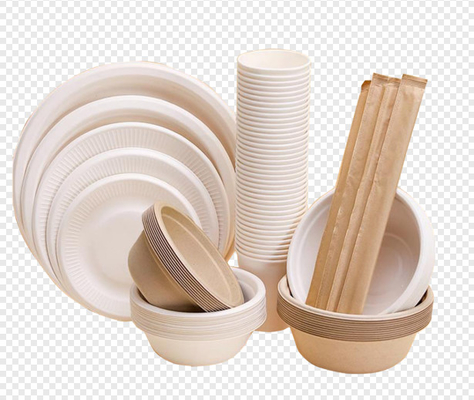

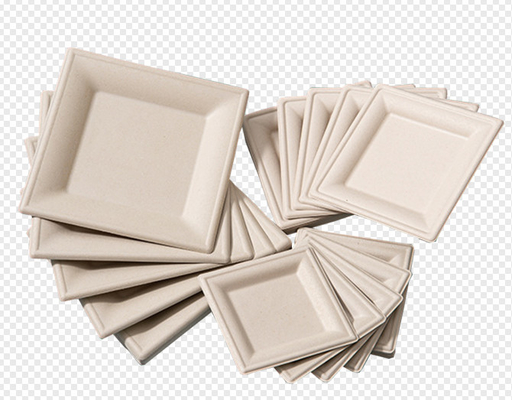

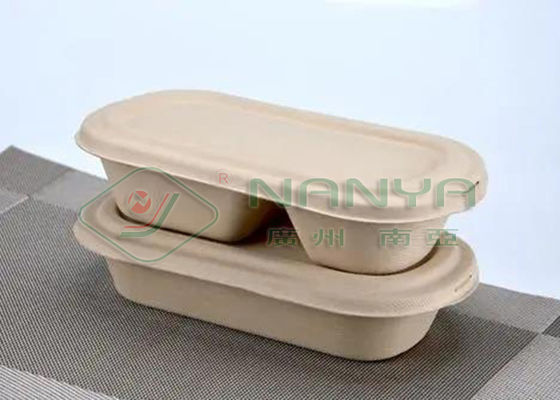

| Food container | Dishware, tableware, lunch box, bowl, cup, clamshell… |
| Artware | Mask, Christmas balls, Easter Eggs , boutiques… |
| Disposable Medical Care Products | Bedpan, sick pad, female urinal… |
| High quality packages | Mobile phone package, camera package,water bottle... |
 | |
Business Terms:
| NO. | ITEM | DESCRIPTION |
| 1 | Payment Terms | 30% down payment by T/T, 70% before shipment by T/T or L/C at sight |
| 2 | Delivery Terms | FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract). |
| 3 | Delivery Time | 75 days |
| 4 | Packages | Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support. |
| 5 | Installation | Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service. |
| 6 | Warranty | 12 months after installation |
| 7 | After service |
|
| 8 | Quotation Validity | 90 days after the offering date |
Contact Person: Mr. Jerry Jiang
Tel: +8613422106696
