270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment

270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment

  • 270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment
  • 270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment
  • 270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment
  • 270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment
  • 270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment
270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment
Product Details:
Place of Origin: China
Brand Name: NANYA
Certification: CE/TUV/SGS/ISO9001
Model Number: TF-06D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 45-120days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets/month
Contact Now
Detailed Product Description
Target Products: Degradable Pulp Molding Dishware Capacity: 180-270kgs/h
Cycle Time: 25-30s/drop Type Of Material: Virgin Pulp;Or Bagasse Pulp; Or Bamboo Pulp; Or Straw Pulp
Water Consumption: 600-800kg/h Material Consumption: 180-270kg Per Hour
Drying Method: Drying In Mold (Thermoforming) Mould Plate Size: 1100×800mm
Maximum Height Of Products: 50mm Minimum Angle Of Products: 105degree
High Light:

Virgin Pulp Plate Making Machine

,

270kgs/h Pulp Plate Making Machine

Pulp Plate Making Machine/ Pulp Tableware products Making Machine/ Pulp Tray Making Machine



Machine Brief Introduction



BY series pulp molding integrated machine is the semi-automatic tableware production equipment developed by NANYA company. The forming and drying/pressing workstations are combined in one machine. The forming workstation is in middle of the machine, the drying/pressing workstations are in left and right side of the machine. The working distance for operator is close, thus the efficiency is higher.



It is used for all kinds of tableware products production, paper plate, meal box, cutlery, coffee cups, etc.



Specification



 NO.              Item                   Information                         Notes
   1   Target products   Degradable pulp molding dishware
   2   Automation

automatic

(Forming, drying/pressing,

edge cutting in one macine)


   3   Capacity   180~250kg per hour
   4   Workshop Recommend   >=1600m2

  It could be adjusted according to

the user's existing workshop

   5   Type of Material   virgin pulp

Wood pulp;

Or bagasse pulp;

Or bamboo pulp;

Or straw pulp

   6   Material consumption   180-270kg per hour
  7a

  Electricity consumption

if heat by conduction oil

  230~320kw   590kw installed

  Fuel consumption

if heat by conduction oil

  Natural gas 70~90m3/h

  conduction oil boiler required:

  thermal power 800000kcal/h

  7b

  Electricity consumption

if heat by electricity

650~950kw

(no fuel consumption)

 1450kw installed
   8   Water consumption   600-800kg/h
   9

  Chemical for Water

Resistance

  6~8kg/h
  10

  Chemical for Oil

Resistance

  1.5~2.5kg/h
  11   Operator Required   6~7 people/shift



  Application

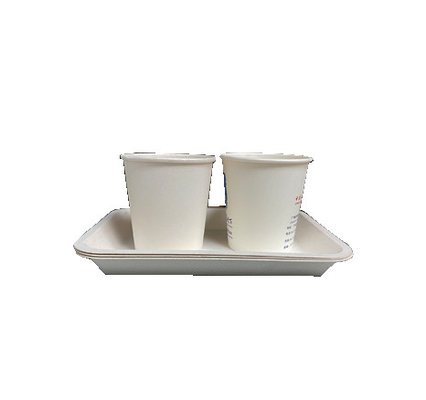

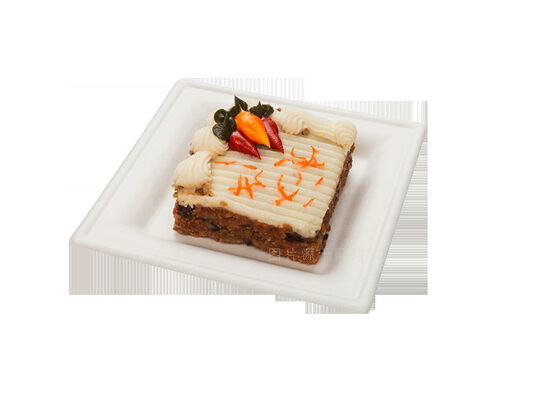

  Food container   Dishware, tableware, lunch box, bowl, coffee cups…
  Cutlery   Fork, Knife, Spoon

270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment 0



270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment 1









 No.

           Item

                              Characteristic

                 Remarks

  1

 Overall appearance

1. Adopt forming/drying integrated structure, compact structure and convenient to operate.

2. The whole surface is covered with SUS304 stainless steel plate, with good

rust prevention, beautiful appearance and long service life.

    270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment 2
  2

 More homogeneous pulp supply

1. To ensure homogeneous sucking pulp during production, and the weight deviation of each product is less than 5% ,

2. Forming mold goes down into pulp tank and suck.

Concentration in the pulp tank could be less than 0.3%.


  3

 High assembly accuracy

1. The deviation of flatness and parallelism between top and bottom mold plate is less than 0.2mm, which ensures the precision when closing.

2. Four-column is made by 80mm hard chromium guide rod guiding structure, guide length of movable template is 250mm, running more smoothly and accurately.

270kgs/h Virgin Pulp Plate Making Machine Pulp Tray Making Equipment 3
