1100*800mm Paper Plate Making Machine

1100*800mm Paper Plate Making Machine

    • 1100*800mm Paper Plate Making Machine
    • 1100*800mm Paper Plate Making Machine
    • 1100*800mm Paper Plate Making Machine
  • 1100*800mm Paper Plate Making Machine

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: NANYA
    Certification: CE
    Model Number: TS-05B

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 45~75days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Paper Plate Making Machine Forming Type: Vacuum Suction / Thermoforming
    Application: Paper Plate / Food Container Raw Material: Bagasse Pulp / Bamboo Pulp / Virgin Pulp
    Mold Size: 1100*800mm Heating Source: Electricity Or Thermo-oil
    Drive System: Hydraulic Control System: PLC + Touch Screen Control
    Capacity: 3~4 Ton Per Day Automation: Semi-automatic
    High Light:

    paper plate manufacturing machine

    ,

    paper plates making machine

    Microwaveable Bagasse Fiber Paper Plate Food Container Making Machine




    Paper Plate Making Machine Introduction:


    1. Application: High quality pulp molded products, such as tableware, art ware, disposable medical care products, high quality industrial package, etc.

    2. This is a Semi-Automatic pulp molding Tableware Production Line, around 3~4 ton per day capacity.

    3. Machine structure: Forming stage ×1 in the middle, hot press stage ×2 on the two sides. After products are formed in the middle stage, need labor to transfer to dry and hot press.

    4. Raw material: Virgin paper sheet, like sugarcane bagasse pulp, bamboo pulp, wood pulp and straw pulp and etc.



    Paper Plate Making Machine Specifications:

    Model Type

    TS-05B Microwaveable Bagasse Fiber Paper Plate Food Container Making Machine ​

    Mold Platen Size 1100*800mm

    Capacity

    3~4 ton/day

    Automation

    Semiautomatic (Could be improved to fully automatic by match additional robot)

    Workshop Requirement

    ≥600 m2

    Electricity Consumption

    120 kw

    Electricity Installed

    220 kw

    If Heat by Conduction Oil Natural Gas: 35~50m³/h
    Raw Material bagasse pulp/bamboo pulp/straw pulp/wood pulp

    Material Consumption

    120~ 180 kg/h

    Water Consumption

    300 ~ 400 kg/h

    Worker Requirement

    12 persons / shift



    Main Advantages of Semi-Automatic Tableware Production Line:


    1. Save initial investment amount;

    2. Suitable to apply to the countries or areas where the labor cost is cheaper;

    3. The mold cost for semi automatic tableware machine is cheaper;

    4. Simple and convenient to operate and maintain.



    Working Processes:


    Pulping System: Virgin paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.



    Forming And Hot-Pressing System (with the function of forming, drying, hot pressing and stacking): The pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; the products can be transferred and stacked by workers or by robot arms.



    Vacuum System: Supply vacuum for forming machine.



    Air Compressor System: Supply compressed air for forming machine.



    Cementing Machine & Laminating Machine: Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines.



    Youtube Video Link how this production line works:

    https://www.youtube.com/watch?v=ZVzzpF2ghRw&t=11s

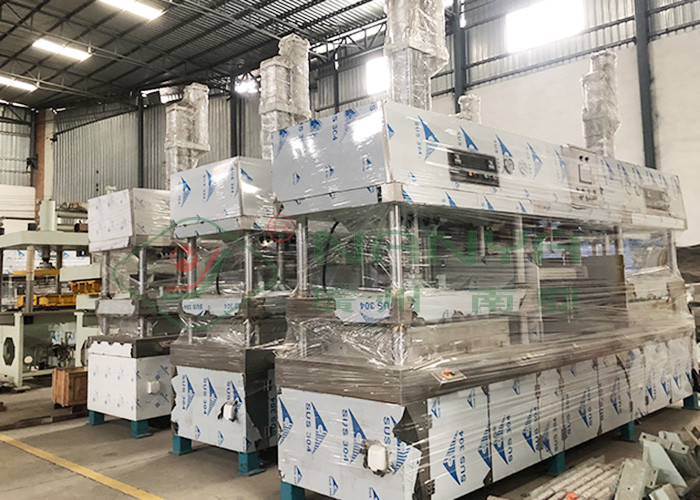

    Main Machine Photo:


    1100*800mm Paper Plate Making Machine 0



    Final Products:

    Tableware

    Paper food container/bowl/plate/cup ect…

    Artware

    Mask, Christmas balls, Easter Eggs , boutiques…

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    High quality packages

    Mobile phone package, camera package, cosmetic box.

    1100*800mm Paper Plate Making Machine 1



    Why Choose NANYA:


    1. High efficient, low energy consume, have long using life.
    2. Easy to operate, low labor force cost, large output .
    3. Stable final product quality (same weight ,dimension, good look)
    4. Professional technical support, superior after-sales service.
    5. Medium investment, high profit.
