220V 450kg / Hour Fiber Molding Machine Biodegradable Tableware Machine

Name: 220V 450kg / Hour Fiber Molding Machine Biodegradable Tableware Machine
Brand: NANYA
SKU: TF-10D
Rating: 4.5 (107 reviews)

Product Details:

Place of Origin:	China
Brand Name:	NANYA
Certification:	CE/TUV/SGS/ISO9001
Model Number:	TF-10D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Packing
Delivery Time:	45-120days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	Paper Pulp Plate Making Machine	Capacity:	300~450kg Per Hour
Model:	TF-10D	Automation:	Fully-automatic
Forming Type:	Vacuum Suction / Thermoforming	Standard:	CE/TUV/SGS/ISO9001
Voltage:	220 V - 450 V	After-sales Service:	Engineers Available To Service Overseas Or Online Installation Guide
High Light:	450kg / Hour Fiber Molding Machine , 220V Fiber Molding Machine , Biodegradable Tableware Machine

Fiber Molding Machine/ Pulp Plate Makine Machine/ Biodegradable Tableware Machine/ Pulp Meal Box Making Machine

Description Of Pulp Molding Equipment

Pulp molded tableware is made form sustainable food grade virgin paper pulp, like bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
In the process adding food grade chemical agent, forming under dewatering, dry inside special molds, then trimming and disifection.

Specification Of Pulp Molding Equipment

NO.	Item	Information	Notes
1	Target products	Degradable pulp molding dishware
2	Automation	Automatic
2	Automation	(Forming, drying/pressing, edge cutting in one macine)
3	Capacity	300-450 kg per hour
4	Workshop Recommend	>=2000m2	It could be adjusted according to the user's existing workshop
5	Type of Material	virgin pulp	Wood pulp;
			Or bagasse pulp;
			Or bamboo pulp;
			Or straw pulp
6	Material consumption	300-450kg per hour
7a	Electricity consumption	350~500kw	900kw installed
	if heat by conduction oil	350~500kw	900kw installed
	Fuel consumption	Natural gas 100~150m3/h	conduction oil boiler required: thermal power 1200000kcal/h
	if heat by conduction oil	Natural gas 100~150m3/h	conduction oil boiler required: thermal power 1200000kcal/h
7b	Electricity consumption	1100~1500kw	2300kw installed
7b	if heat by electricity	(no fuel consumption)	2300kw installed
8	Water consumption	600-800kg/h
9	Chemical for Water Resistance	10~15kg/h
10	Chemical for Oil Resistance	2~ 3kg/h
11	Operator Required	7~9 people/shift

Descriptions:

Model: BY043

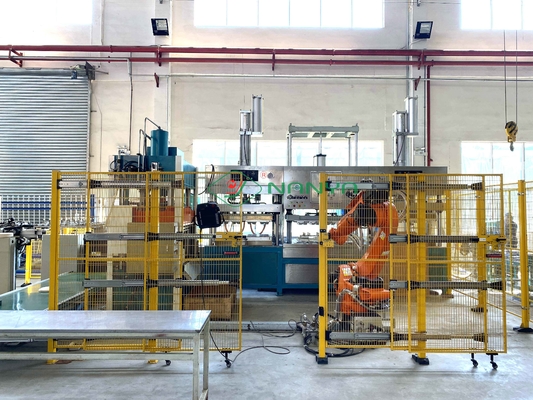

Fully automatic machine for pulp molding products. Forming, drying, edge trimming, stacking runs in one machine automatically.
Mould plate size: 1100×800mm;
Include one forming station + two drying/pressing station + one trimming & stacking station.
Forming method: Vacuum sucking (reciprocating type).
Drying method: thermal forming (drying in mold).
Heating by electricity or conduction oil;
Cycle time: around 25second for tableware products;
Production capacity:6-9 ton/day(24h);
All parts that contact the pulp are stainless steel.
PLC + touch screen control; The main electrical elements are Siemens; The main pneumatic element is FESTO or SMC.

Application Of Pulp Molding Equipment

Manufacturing Plant
Tableware making machine

Advantages Of Pulp Molding Equipment

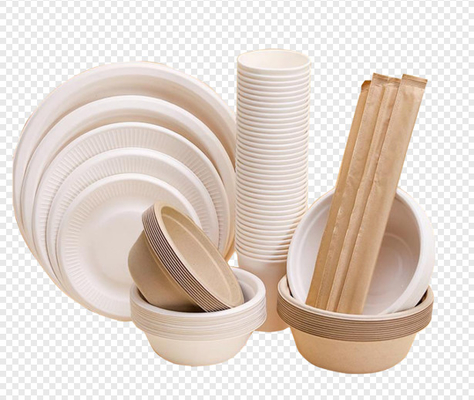

1.Mainly producing the pulp molded products, such as meal box, meal tray, coffee cups, cutlery, etc.
2.Material for the molded pulp products is bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.

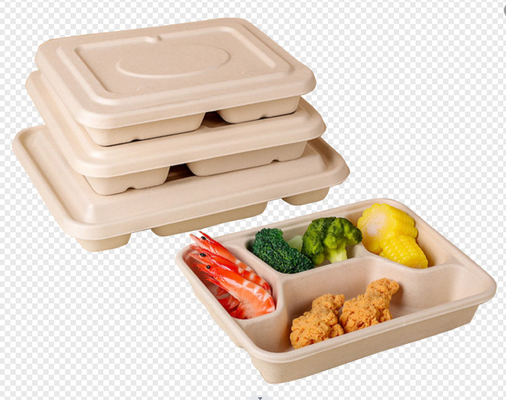

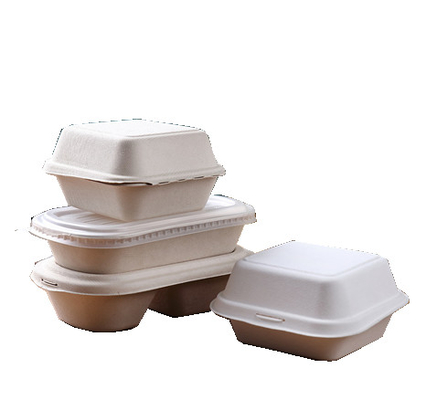

Food container	Dishware, tableware, lunch box, bowl, coffee cups…
Cutlery	Fork, Knife, Spoon

220V 450kg / Hour Fiber Molding Machine Biodegradable Tableware Machine 1

Our services

After-sales Service: Engineers available to service machinery overseas
After Warranty Service: Video technical support, Online support

FAQ:

How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
What can you buy from us?
The whole production line, such as Hydrapulper, Forming machine,etc
What kind of material we can use as the raw material?
Any kind of waste paper like bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
What kind of Fuel can be used for the whole production line?
Electricity, conduction oil.

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China.
3	Delivery time	150days. (if the holiday of Chinese New Year is during the manufacture time, Delivery time should extend 30 days)
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 1 engineer to instruct buyer for installation, test-run and training. All the charges of air ticket, VISA , accommodation and food of the engineer should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90days after the offering date.
