Quality Product Is Our Passion; Service&Innnovation Is Our Mission.
|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard Export Packing|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30sets per month|
|Product Name:||Paper Pulp Plate Making Machine||Capacity:||250~350kg Per Hour|
|Forming Type:||Vacuum Suction / Thermoforming||Standard:||CE/TUV/SGS/ISO9001|
|Voltage:||220 V - 450 V||After-sales Service:||Engineers Available To Service Overseas Or Online Installation Guide|
Semi Automatic Tableware Making Machine,
Tableware Making Machine 8 Ton / Day
Semi-automatic Tableware Making Machine/ Pulp Plate Making Machine/ Pulp Meal Box Making machine 6-8ton/day
Description Of Pulp Molding Equipment
Pulp molded tableware is made form sustainable food grade virgin paper pulp, like bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
In the process adding food grade chemical agent, forming under dewatering, dry inside special molds, then trimming and disifection.
Specification Of Pulp Molding Equipment
|1||Target products||Degradable pulp molding dishware|
|(Forming, drying/pressing in one macine)|
|3||Capacity||250-300 kg per hour|
|4||Workshop Recommend||>=2000m2||It could be adjusted according to the user's existing workshop|
|5||Type of Material||virgin pulp||Wood pulp;|
|Or bagasse pulp;|
|Or bamboo pulp;|
|Or straw pulp|
|6||Material consumption||300-400kg per hour|
|7a||Electricity consumption||240~300kw||500kw installed|
|if heat by conduction oil|
|Fuel consumption||Natural gas 80~120m3/h||conduction oil boiler required: thermal power 1200000kcal/h|
|if heat by conduction oil|
|7b||Electricity consumption||900~1300kw||1800kw installed|
|if heat by electricity||(no fuel consumption)|
|9||Chemical for Water Resistance||10~15kg/h|
|10||Chemical for Oil Resistance||2~ 3kg/h|
|11||Operator Required||24~26 people/shift|
Application Of Pulp Molding Equipment
Tableware making machine
Advantages Of Pulp Molding Equipment

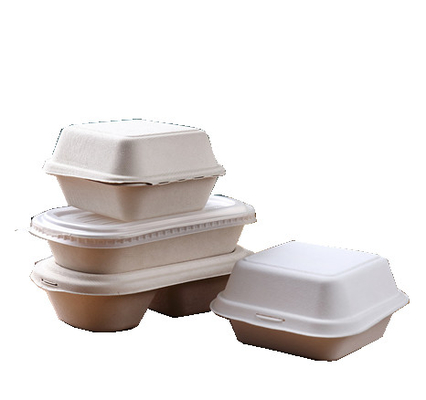

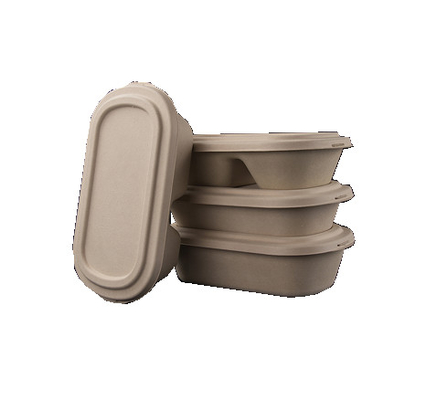

1.Mainly producing the pulp molded products, such as meal box, meal tray, coffee cups, cutlery, etc.
2.Material for the molded pulp products is bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
|Food container||Dishware, tableware, lunch box, bowl, coffee cups…|
|Cutlery||Fork, Knife, Spoon|
After-sales Service: Engineers available to service machinery overseas
After Warranty Service: Video technical support, Online support
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
What can you buy from us?
The whole production line, such as Hydrapulper, Forming machine,etc
What kind of material we can use as the raw material?
Any kind of waste paper like bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
What kind of Fuel can be used for the whole production line?
Electricity, conduction oil.
30% down payment by T/T,
70% before shipment by T/T or L/C at sight
|2||Delivery Terms||FOB Guangzhou, China.|
(if the holiday of Chinese New Year is during the manufacture time, Delivery time should extend 30 days)
Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.
Seller should appoint 1 engineer to instruct buyer for installation, test-run and training.
All the charges of air ticket, VISA , accommodation and food of the engineer should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
|6||Warranty||12 months after installation|
|8||Quotation Validity||90days after the offering date.|
Contact Person: Mr. Jerry Jiang
