Biodegradable Paper Tableware Making Machine Flexible And Precise Production

Biodegradable Paper Tableware Making Machine Flexible And Precise Production

  • Biodegradable Paper Tableware Making Machine Flexible And Precise Production
  • Biodegradable Paper Tableware Making Machine Flexible And Precise Production
  • Biodegradable Paper Tableware Making Machine Flexible And Precise Production
Biodegradable Paper Tableware Making Machine Flexible And Precise Production
Product Details:
Place of Origin: Guangdong China(Mainland)
Brand Name: NANYA
Certification: CE
Model Number: TA-10B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: Normally 90 days
Payment Terms: T/T or western Union or L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Tableware Making Machine Material: Biodegradable Paper
Automation: Automated Forming Type: Dry And Cut In Mold
Raw Material: Sugarcane Pulp/ Clean Paper Pulp Warranty: 12 Months
Feature: Flexible And Precise Production Heating Fuel: Electricity Or Thermo Conduction Oil
Production: Disposible Tableware, Paper Plate,food Box Dimension(L*W*H): Depends On Final Production Line
High Light:

Paper Plate Manufacturing Machine

,

Paper Dish Making Machine

Biodegradable Paper Tableware Making Machine Flexible And Precise Production



Tableware Making Machine Brief Introduction



- Cost-effective smart system
- Flexible and precise production and operation
- Safe and simple operational maintenance
- Modern remote intelligent production monitoring



Tableware Making Machine Main Parameters:


Model Type

TA-10B Tableware Making Machine

Forming Machine Quantity 10 sets of forming machines

Capacity

300~400kg/h)

Workshop Required

≥2000 m2

Electricity Consumption

450 kw

Material Consumption

300 ~ 400 kg/h

Water Consumption

1000 ~ 1200 kg/h

Worker Requirement

6~8 persons

Container Requirement for Shipment

8 x 40’ HQ

Forming Type

Vacuum suction

Drying Method

Drying in mould





Tableware Making Machine Main Features:


Water Trimming  With water trimming process, can be trimming free. The edge trimming machine is optional.
Fuel Consumption Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler.
Environment Impact No waste water or waste air will be discharge during running.
Final Products Food grade and 100% biodegradable and environmental friendly.





Flow Chart Explanation:


Pulping System: Clean virgin paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.



Forming And Hot-Pressing System (with the function of forming, drying, hot pressing and stacking): The pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; finally products will be transferred and stacked together.



Vacuum System: Supply vacuum for forming machine.



Air Compressor System: Supply compressed air for forming machine.



Cementing Machine & Laminating Machine: Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines.

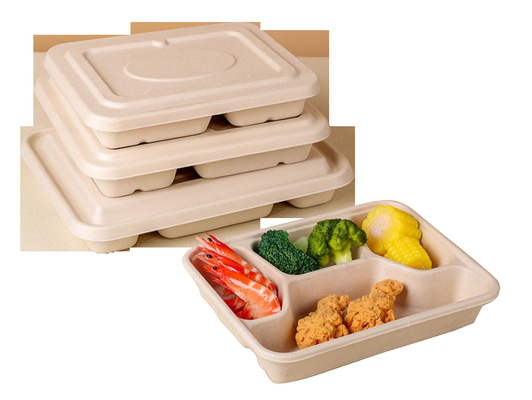

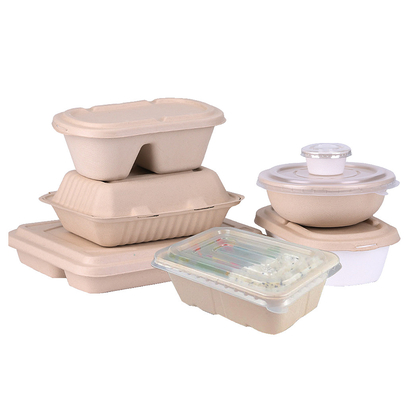

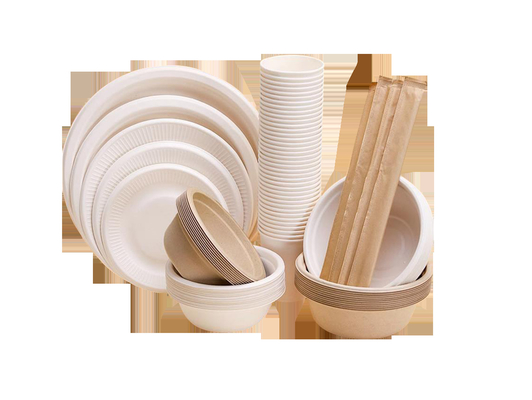

Finished Products:


By changing moulds, the same machine can make different products
Tableware Products tableware, catering ware, pulp molded plate, paper bowl, food containers, saucers, food containers and etc
High quality packages Mobile phone package, camera package, makeup box,

High quality food package

Cup holder, fruit trays, egg trays, egg box,

Artware

Mask, Christmas balls, Easter Eggs , boutiques…

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

Biodegradable Paper Tableware Making Machine Flexible And Precise Production 0




What We Provide:


1. Pulp Molding Machine Manufacturing, including tableware thermoforming machines, egg tray/egg box/ fruit tray machines, machines for general quality industrial packages and high quality industrial packages.

2. Mould, Tool and Die Set Manufacturing. We have our mould center, we have professional team for designing and making moulds.

3. Project Management/Turn-key production line. We will make quotation and analysis based on customer’s investment and capacity and provide the complete production line.

4. Training and Transfer of know-how. We will send 1 or 2 engineers to customer's plant for installation guidance and debug; Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
