Sustainable Tableware Sugarcane Automated Pulp Molding Machine
Brief Introduction of this Production Line:
The Z series pulp molding production line is the first fully servo-controlled automatic pulp molding product production equipment developed by our company. It integrates the forming, drying and shaping, trimming, and stacking processes into a single production line. Qualified pulp is sent into the machine, and the finished products can be automatically produced. The equipment has a high degree of automation and high production efficiency.
This machine is suitable for producing pulp molded tableware (various fast food boxes, dishes, bowls, etc.) and high-quality wet-pressed pulp mold products (such as fine packaging, decorative materials, handicrafts, etc.)
Main Parameters:
|
Model Type
|
YC042Z
|
| Forming Machine Quantity |
1 set |
|
Mold plate size
|
1300×1100mm, one forming postion and two hot pressing positions.
|
|
Maximum product height
|
80mm |
| Raw Material |
Sugarcane pulp/clean paper pulp |
|
Electrical control method
|
Siemens PLC, touch screen
|
|
Maximum working pressure
|
100tons |
|
Cycle time
|
40-90s |
|
Forming Type
|
Vacuum suction
|
|
Drying Method
|
Drying in mould
|
Main Features:
| Automation |
Full automatic pulp molding tableware production line(forming/drying/pressing/trimming integrative machine) |
|
Control
|
All the operations of this equipment are achieved through pneumatic control system and electrical control system for automatic control. The product thickness, weight, moisture content and other indicators can be adjusted as needed. It can meet the production requirements of various different thickness products.
|
| Fuel Consumption |
Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler. |
| Environment Impact |
No waste water or waste air will be discharge during running. |
| Final Products |
Food grade and 100% biodegradable and environmental friendly. |

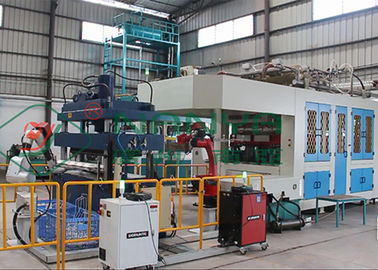

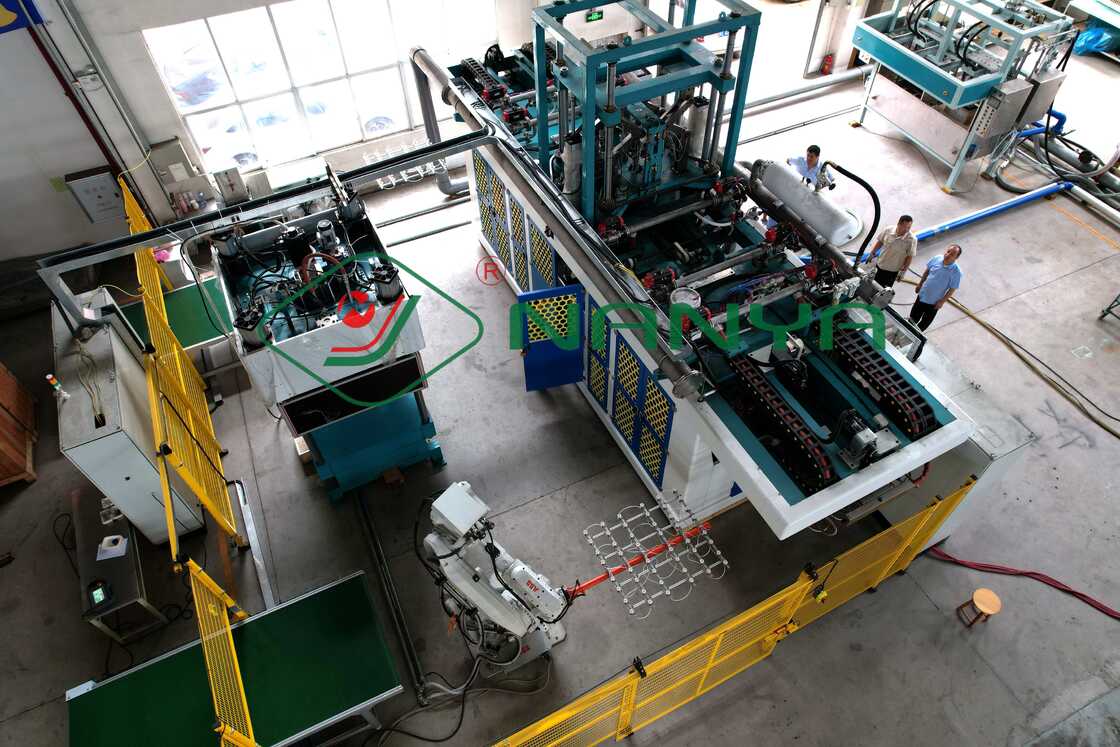

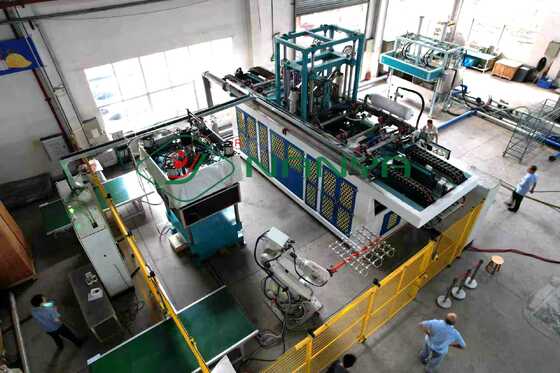

Main Machine Picture:
Flow Chart Explanation:
Pulping System: Clean virgin paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.
Forming And Hot-Pressing System (with the function of forming, drying, hot pressing): The pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; finally products will be transferred for trimming.
Vacuum System: Supply vacuum for forming machine.
Air Compressor System: Supply compressed air for forming machine.
Cementing Machine & Laminating Machine: Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines.
Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.(Optional for automatic forming machine)
Disinfect System: UV or microwave disfect, then go to package.

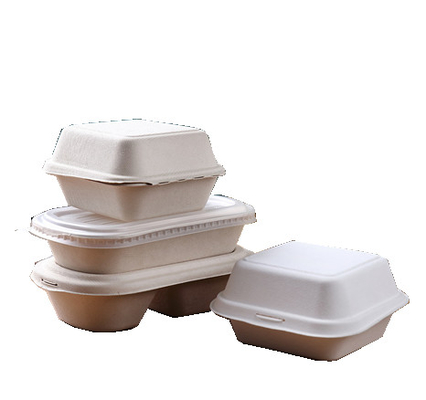

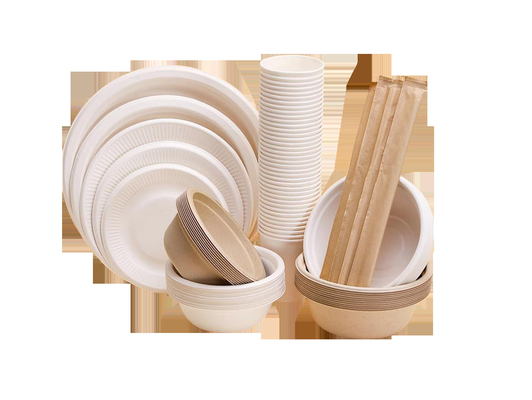

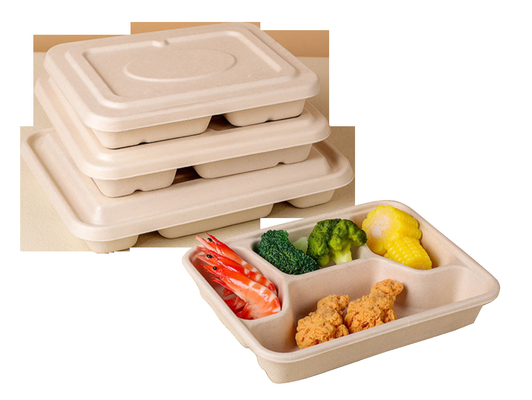

Finished Products:
| By changing moulds, the same machine can make different products |
| Tableware Products |
tableware, catering ware, pulp molded plate, paper bowl, food containers, saucers, cups,food containers and etc |
| High-end quality packages |
Mobile phone package, camera package, makeup box, |
|
|
|
|
|
Business terms:
|
NO.
|
ITEM
|
DESCRIPTION
|
|
1
|
Delivery Port
|
Guangzhou or Shenzhen, China.
|
|
2
|
Delivery Time
|
Normally 120 days
|
|
3
|
Packages
|
Export standard packing
|
|
4
|
Installation
|
Appoint 1or 2 engineers to instruct buyer for installation, test-run and training.
|
|
5
|
Warranty
|
Life-long service, one year warranty( three year warranty for main machines)
|
