300Kg/H Biodegradable Pulp Molding Tableware Equipment 40 Ton Pressure

300Kg/H Biodegradable Pulp Molding Tableware Equipment 40 Ton Pressure

  • 300Kg/H Biodegradable Pulp Molding Tableware Equipment  40 Ton Pressure
  • 300Kg/H Biodegradable Pulp Molding Tableware Equipment  40 Ton Pressure
  • 300Kg/H Biodegradable Pulp Molding Tableware Equipment  40 Ton Pressure
300Kg/H Biodegradable Pulp Molding Tableware Equipment  40 Ton Pressure
Product Details:
Place of Origin: Guangdong, China(mainland)
Brand Name: NANYA
Certification: CE
Model Number: TA01~TA10B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 60-120 Days
Payment Terms: T/T, L/C, Cash or Western Union
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Product Name: Pulp Molding Equipment Platen Size: 1300*1100mm(2 Working Ststions)
Capacity: 30~300 Kg / H Drying Way: Heat & Dry In Mold
Applications: Tableware; Dinnerware; Plate; Bowl... Max. Pressure: 40 Ton, Hydropneumatic
Raw Material: Bagasse Pulp Or Bamboo Pulp Or Wood Pulp Heating Fuel: Thermal Oil Or Electricity Or Steam
Control By: PLC + Touch Screen + Simens Forming Type: Reciprocating Forming
High Light:

300 Kg / H Paper Tableware Equipment

,

Vacuum suction Paper Tableware Equipment

,

120kw Pulp Products Molding Machine

300Kg/H Biodegradable Pulp Molding Tableware Equipment 40 Ton Pressure



Introduction:

1. This  is the fully automatic bagasse fiber tableware production line. Product forming, heating and hot-press and stacking in one forming machine.

2. This production line includes pulping system, forming and hot press system, vacuum system, air compressor system, trimming system, disinfection system.

3. Raw material: virgin pulp, like sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp, reed pulp and etc.

4. By changing moulds, the same forming machine can make different shape of products, such as paper plates, paper bowls, lunch boxes, cups and etc.

5. Can add robots, can edge trimming and stacking automatically.


Main Technical Data:

Model Type

TA-01B

TA-02B

TA-05B

TA-10B

Forming Machine 1 set  2 sets 5 sets 10 sets

Capacity

1800pcs/h

3500pcs/h

9000pcs/h

18000pcs/h

Workshop Required

200m2

230m2

600m2

1200 m2

Electricity Consumption

120kw

390kw

550kw

1100kw

Electricity Installed

200kw

250kw

880kw

1700kw

Material Consumption

25~30kg/h

50~60kg/h

120~150kg/h

250~300kg/h

Water  Consumption

80~100kg/h

150~200kg/h

500~600kg/h

1000~1200kg/h

Worker Requirement

3 persons

4 persons

6 persons

10 persons

Container Required for Shipment

1 x 40’HQ

2 x 40’HQ

4 x 40’HQ

8 x 40’HQ

Forming Type

Vacuum suction

Vacuum suction

Vacuum suction

Vacuum suction

Drying Method

Thermoforming

Thermoforming

Thermoforming

Thermoforming

Notes:

  1. The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products.
  2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

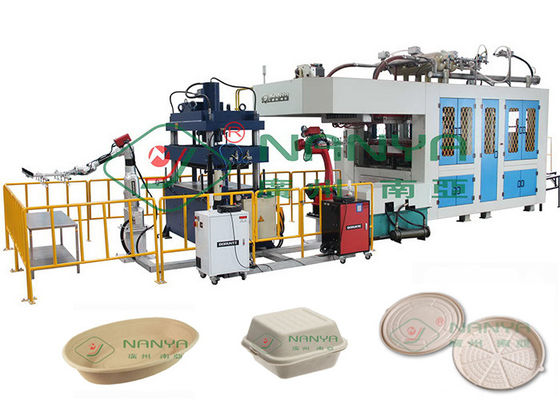

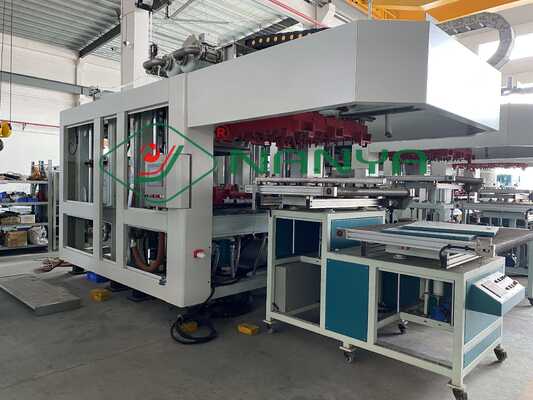

Forming Machine Image:

300Kg/H Biodegradable Pulp Molding Tableware Equipment  40 Ton Pressure 0

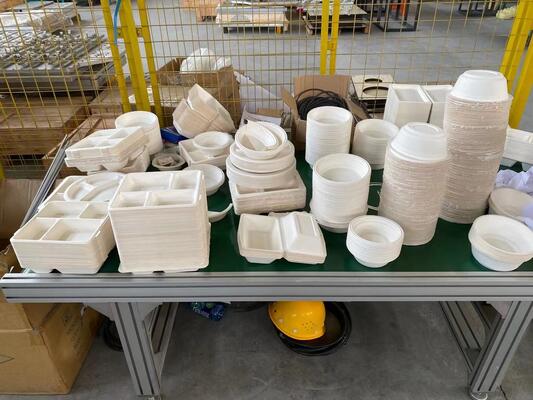

Applications:

All kinds of tableware items plates, bowls, lunch boxes, food trays, cups and etc.
High quality packages for  cell phone, make up products, laptop, jewelry and etc.
Artwork 3D ceiling panel, masks, Easter egg , medical care items and etc.
300Kg/H Biodegradable Pulp Molding Tableware Equipment  40 Ton Pressure 1



Youtube Video Links:

The below are the YOUTUBE Links showing how these fully automatic tableware production line work:

(1) https://www.youtube.com/watch?v=7YLnwE5lqJw

(2) https://www.youtube.com/watch?v=PrmRiMvirr8

(3) with robot video: https://youtu.be/X6yGLDTzT3Q

For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



Advantages of Bagasse Tableware Production Line:

1. Fully Automatic Tableware Making Production Line

2. Mainly used for high quality products , such as tableware, dishware and some high-grade pulp molding products.

3. The products are 100% disposable and environmental friendly.

4. Wtare resistant and oil resistant and food grade.



Installation & After Sales Service:

1  We will send 1 or 2 engineers to customer's plant for installation guidance and debug;
2  After commissioning, our engineers will offer the training, including two parts: explanation and practice.
3  Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
4  After engineers back to China, video conference or remote control guidance are available to solve questions.



Q & A

Q: What capacity can I choose:

A: We will match the forming machine quantity to meet your capacity demand.



Q: Can I customize mould?

A: Yes, we have our mould centre. We can make moulds according to customer's sample or drawing.



Q: What other fuel can I choose for heating products?

A: You can use electricity or thermo-oil or steam. But you need to prepare a boiler if you choose thermo-oil heating or steam.



Q: Can you offer the detailed layout on how to build up my workshop?

A: Yes, we will design and offer detailed layout and construction drawings to you.
