Virgin Paper Pulp Molding Euipment Food Plate / Lunch Box Machine

Product Details:

Place of Origin:	Guangdong, China(mainland)
Brand Name:	NANYA
Certification:	CE
Model Number:	TA-01B~TA-10B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Strong and Suitable for Marine Shipment
Delivery Time:	Normally 100 days
Payment Terms:	L/C, T/T, Cash, Western Union
Supply Ability:	1000sets/year

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Euipment	Capacity:	40~400 Kg/h
Drying:	Drying In Mould	Fuel:	Electricity / Conduction Oil
Production:	Food Plate/ Lunch Box / Cup/ Bowl	Raw Material:	Clean Virgin Paper
Automation:	Fully Automatic	Forming Type:	Reciprocating
Forming Efficiency:	40~50 Seconds/cycle
Highlight:	Pulp Molding Machinery , Pulp Moulding Machinery , Lunch Box Pulp Molding Machine

Virgin Paper Pulp Molding Euipment Food Plate/ Lunch Box Machine

Introduction of Sugarcane Tableware Production Line:

1. This is the fully automatic sugarcane tableware production line. Product forming, heating and hot-press and stacking in one forming machine.
2. This production line includes pulping system, forming and hot press system, vacuum system, air compressor system, trimming system, disinfection system.
3. Raw material: virgin pulp, like sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp, reed pulp and etc.
4. By changing moulds, the same forming machine can make different shape of products, such as paper plates, paper bowls, lunch boxes, cups and etc.

Main Technical Data:

Model Type	TA-01B	TA-02B	TA-05B	TA-10B
Forming Machine	1 set	2 sets	5 sets	10 sets
Capacity	1800pcs/h	3500pcs/h	9000pcs/h	18000pcs/h
Workshop Required	200m²	230m²	600m²	1200 m²
Electricity Consumption	120kw	390kw	550kw	1100kw
Electricity Installed	200kw	250kw	880kw	1700kw
Material Consumption	25~30kg/h	50~60kg/h	120~150kg/h	250~300kg/h
Water Consumption	80~100kg/h	150~200kg/h	500~600kg/h	1000~1200kg/h
Worker Requirement	3 persons	4 persons	6 persons	10 persons
Container Required for Shipment	1 x 40’HQ	2 x 40’HQ	4 x 40’HQ	8 x 40’HQ
Forming Type	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming
Drying Method	Drying in mould	Drying in mould	Drying in mould	Drying in mould
Notes: The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Capacity & Product & Fuel Consumption & Workshop:

Capacity	We will match the forming machine quantity to meet customer's capacity demand.
Product	We will make moulds according to customer's sample or drawing.
Fuel Consumption	Can use electricity or thermo-oil
Workshop	We will design and offer detailed layout and construction drawings to customer.

Advantages of Sugarcane Tableware Production Line:

1. Fully Automatic Tableware Making Production Line
2. Mainly used for high quality products , such as tableware, dishware and some high-grade pulp molding products.
3. The products are 100% disposable and environmental friendly.
4. Wtare resistant and oil resistant and food grade.

Flow Chart of Production Line:

Virgin Paper Pulp Molding Euipment Food Plate / Lunch Box Machine 0

Applications:

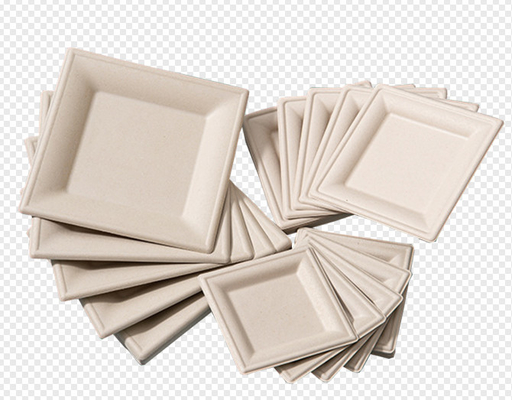

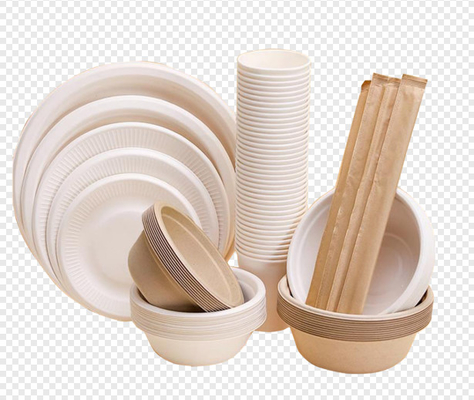

Food trays	Dishware, tableware, paper cups, lunch box, bowl, clamshell…
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
High quality packages	Mobile phone package, camera package,

About NANYA Company:

1. With 30 years of experience, we will make quotation and analysis based on customer’s investment and capacity.
2. Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
3. Life-long service, sustainable supply and upgrade of parts and components, One-year warranty( three-year warranty for mechanical parts and main machine)
4. NANYA has more than 60% of the domestic demands, already exported to over 80 countries and regions
5. Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.

Installation & After Sales Service:

1. We will send 1 or 2 engineers to customer's plant for installation guidance and debug;
2. After commissioning, our engineers will offer the training, including two parts: explanation and practice.
3. Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
4. After engineers back to China, video conference or remote control guidance are available to solve questions.
