Pulp Food Container Making Machine / Pulp Tableware Products Making Machine

Product Details:

Place of Origin:	China
Brand Name:	NANYA
Certification:	CE/TUV/SGS/ISO9001
Model Number:	YC041

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Export Standard Packing
Delivery Time:	60-1200days
Payment Terms:	L/C, T/T
Supply Ability:	20sets/month

Contact Now

Detailed Product Description

Model:	YC041	Raw Material:	Bagasse Pulp, Bamboo Pulp, Virgin Pulp, Etc
Capacity:	30~40kg Per Hour	Material Consumption:	30-45kg Per Hour
Water Consumption:	80-120kg/h	Mould Plate Size:	1300×1100mm
Highlight:	pulp food container making machine , pulp tableware products machine , pulp molding equipment with warranty

Pulp molding tableware making production

Driven by the global "plastic ban" and the green consumption wave, the market for eco-friendly pulp molded tableware is experiencing explosive growth. Are you looking for an efficient, stable device that can produce high-quality products to seize this historic opportunity? Our fully automatic pulp molded tableware production line is your ultimate solution for devoting yourself to environmental protection and building a leading competitive edge. From raw material pulping to finished products, we offer a whole production line to help you quickly build a modern intelligent factory.

Automatic Virgin Pulp Molding Equipment Tableware Thermoforming Machine

Pulp Molding Equipment Descriptions:

Product Type: Tableware Making Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: TA-01B
Voltage: 220V-440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Pulp Molding Equipment Specifications:

Model Type	TA-01B
Forming machine	YC040
Height of product available	≤100mm
Capacity	30~40kg/h
Workshop Requirement	≥300㎡
Electricity Consumption for Heating	70~100KWH
Electricity Installed(Except of heating part)	18KW
Working Cycle	30 to 80 seconds adjustable
Vacuum input required	Vacuum pressure: -0.08~-0.06MPa;
Compressed air input required	Pressure: 0.5~0.6MPa;
Worker Requirement	4-5 people/shift
Forming Type	Vacuum suction
Drying Method	Thermal forming (Drying in mold)
Notes: The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Pulp Molding Equipment Advantages:

Overseas technical support available
Proprietary technology
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
30 years experience in this field, Chinese reliable supplier, supported by the government and university.

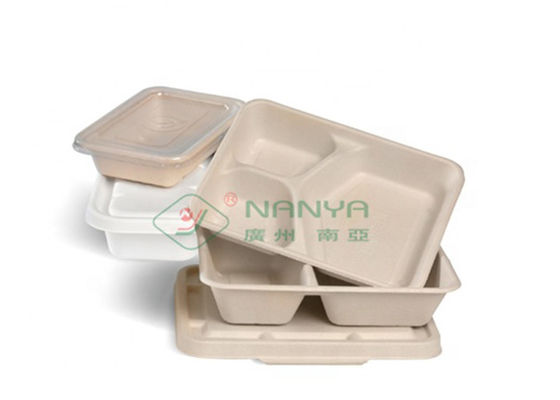

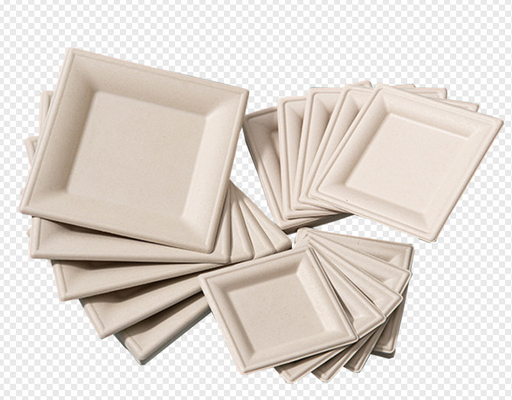

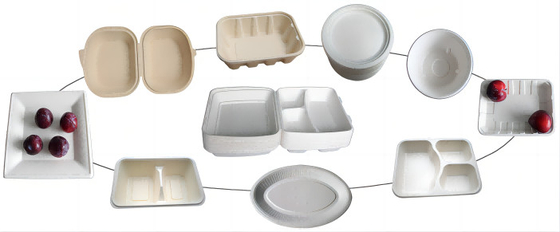

Pulp Molding Equipment Applications:

Food packaging	Bowl, plate,sushi tray,clamshell, fork, knife,cup,spoon..
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
High quality packages	Mobile phone package, camera package,

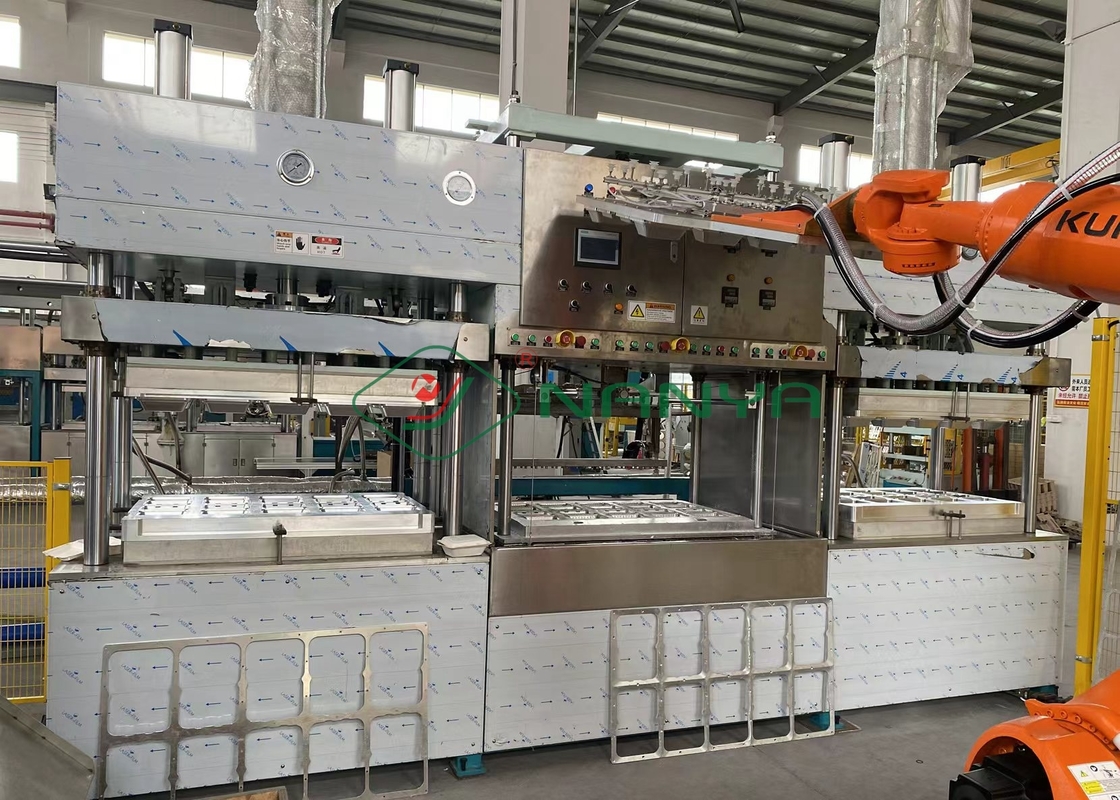

Machine Glance:

Pulp Food Container Making Machine / Pulp Tableware Products Making Machine

Business Terms:

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	60~120 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.Engineer instruction fee is USD200/day each person
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
