Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line

Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line

  • Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line
  • Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line
  • Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line
  • Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line
Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line
Product Details:
Place of Origin: China(mainland)
Brand Name: Nanya
Certification: CE,TUV,SGS, ISO9001
Model Number: ER3000-A~ER6000-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: Normally 45-75 days
Payment Terms: L/C, T/T, Cash, Western Union
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Processing Material: Waste Paper Fuel: Diesel, Heavy Oil, LPG, Natural Gas, Coal, Wood, Steam…
Dryer: Single Layer Automatic Dryer Capacity: 3000~6000 Pcs/h

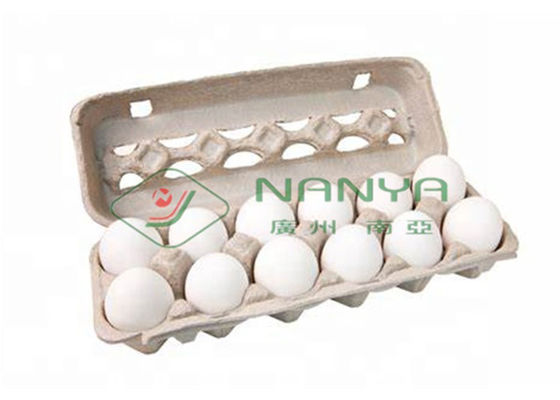

Forming Type: Rotary Production: Egg Tray, Egg Carton, Fruit Tray, Cup Carrier, Disposable Medical Care Products
High Light:

Pulp Molding Production Line

,

Pulp Molding Machinery

,

Rotary Pulp Egg Tray Making Machine

Fully Automatic Pulp Molding Egg Tray Production Line 3000Pcs to 6000Pcs Per Hour


Specifications:



Model Type

ER3000-A

ER4000-A

ER5000-A

ER6000-A

Capacity

3000pcs/hour

4000pcs/hour

5000pcs/hour

6000pcs/hour

Workshop Requirement

500m2

600m2

700m2

800m2

Electricity Consumption

~120kw
(180kw installed)

~160kw
(250kw installed)

~200kw
(300kw installed)

~220kw
(360kw installed)

Material Consumption

180~210kg/h

250~280kg/h

320~350kg/h

360~400kg/h

Water Consumption

600~800kg/h

800~1000kg/h

1000~1200kg/h

1200~1400kg/h

Worker Requirement

4~5person

4~5person

4~5person

5~6person

Container Requirement for Shipment

6 x 40HQ

7 x 40HQ

8 x 40HQ

9 x 40HQ

Forming Machine

Rotary type with 8 plates. Each for 3pcs/time

Rotary type with 8 plates. Each for 4pcs/time

Rotary type with 8 plates. Each for 5pcs/time

Rotary type with 8 plates. Each for 6pcs/time

Drying Production Line

42mx2.2mx3.6m

42mx2.6mx3.6m

42mx3.0mx3.6m

42mx3.4mx3.6m

Remarks:

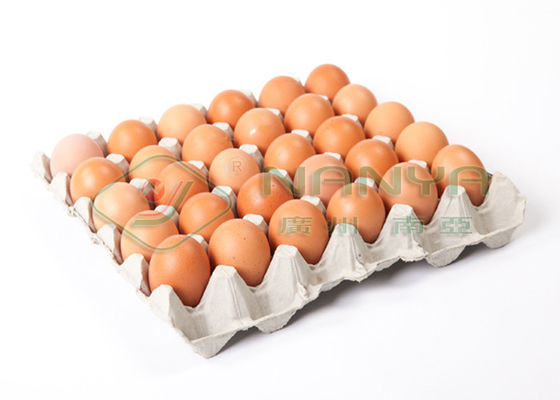

1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.




Fuel Consumption (One Item Selectable)



Type

ER3000-A

ER4000-A

ER5000-A

ER6000-A

Natural Gas

60~70m3/h

80~90m3/h

100~110m3/h

110~120m3/h

LPG

21~24m3/h

28~32m3/h

35~39m3/h

40~45m3/h

Diesel

50~60kg/h

68~76kg/h

85~92kg/h

95~100kg/h

Heavy Oil

52~62m3/h

70~80kg/h

88~95kg/h

98~105kg/h

Steam

1.1~1.3ton/h

1.4~1.6ton/h

1.7~1.9ton/h

1.9~2.2ton/h

Wood

210~240kg/h

280~320kg/h

350~390kg/h

400~450kg/h

Coal

140~160kg/h

180~210kg/h

220~250kg/h

260~300kg/h



Descriptions:

  • Fully Automatic Egg Tray Production Line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
  • Status: Brand new
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: ER3000-A~ER6000-A
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas


Competitive Advantages:

  • Fully automatic
  • Energy saving and labor utilization
  • High quality egg tray machine
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese Famous Trademark
  • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
  • The standing director of Chinese packaging association



Business Terms:



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45~75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date




Product Show:

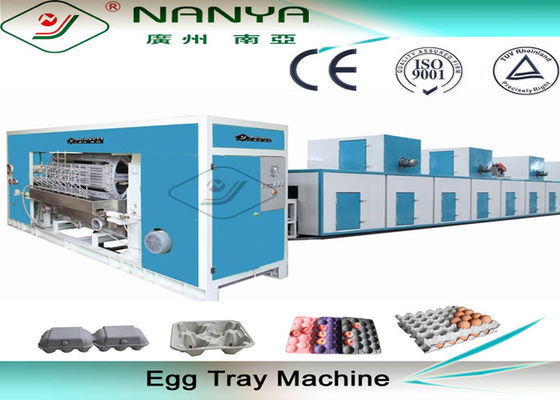

Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line 0


Technological Process:

Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line 1


Applications:

Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line 2


Company Profile:

Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line 3
Fully Automatic Pulp Molding Equipment , High Efficiency Egg Tray Production Line 4
