Quality Product Is Our Passion; Service&Innnovation Is Our Mission.

|
| Place of Origin: | Guangdong, China(Mainland) |
| Brand Name: | NANYA |
| Certification: | CE |
| Model Number: | ER3000-B~ER6000-B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Strong and Suitable for Marine Shipment |
| Delivery Time: | Normally 100-120 days |
| Payment Terms: | L/C, T/T，Cash, Western Union |
| Supply Ability: | 100 sets/ years |
| Production Name: | Pulp Molding Egg Tray Making Machine | Capacity: | 3000~6000 Pcs/Hour |
|---|---|---|---|
| Dryer: | 6-Layers Metal Dryer | Fuel: | Diesel/Heavy Oil/LPG/Natural Gas/Coal/Wood… |
| Material: | Waste Paper / Recycle Paper | Application: | Egg Tray/egg Carton/fruit Tray/ Kidney Tray... |
| Guarantee: | 12 Months | Automation: | Fully Automatic |
| Forming Type: | Rotary | Forming Efficiency: | 16-17 Cycles/min |
| High Light: | Pulp Molding Machinery,Pulp Moulding Machinery,CE Approval Egg Tray Machine |
||

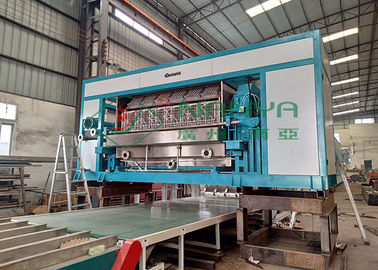

Large Capacity Pulp Molding Equipment / Egg Tray Egg Carton Production Line
Descriptions:
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Guangdong, China
Approval: CE
Warranty: Life-long service, sustainable supply and upgrade machine and parts. 1 year warranty( three-year warranty for main machine)
Capacity: 3000~6000pcs/hr (30-egg tray)
Mainly applied for egg tray, egg carton, fruit tray, cup carrier, bottle tray etc.
Raw material: Any kind of waste paper like waste carton, old newspaper, books, A4 paper etc, and easy to get
Automation: Fully-automatic control
Specifications:
| Model | Capacity | Forming Machine | Drying System | Workshop Space | Operator Required |
| ER3000-B | 3000pcs/hour | Rotary type with 8 plates. Each for 3pcs/time | 20x2.2x4m 6-Layers |
400m2 | 4~5persons |
| ER4000-B | 4000pcs/hour | Rotary type with 8 plates. Each for 4pcs/time | 20x2.6x4m 6-Layers |
500m2 | 4~5persons |
| ER5000-B | 5000pcs/hour | Rotary type with 8 plates. Each for 5pcs/time | 20x3.0x4m 6-Layers |
600m2 | 4~5persons |
| ER6000-B | 6000pcs/hour | Rotary type with 8 plates. Each for 6pcs/time | 20x3.4x4m 6-Layers |
700m2 | 5~6persons |

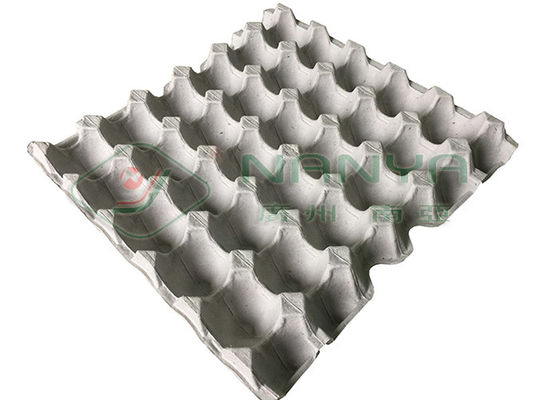

| Notess: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant . |
|||||
Production Consumption:
| Model | Electricity Consumption | Material Consumption | Water Consumption | Natural gas | LPG | Diesel |
| (Choose one one fuel from three fuel type) | ||||||
| ER3000-B | ~115kw (170kw installed) |
180~210kg/h | 600~800kg/h | 55~65m3/h | 19~22m3/h | 45~55kg/h |
| ER4000-B | ~150kw (240kw installed) |
250~280kg/h | 800~1000kg/h | 70~80m3/h | 25~29m3/h | 62~70kg/h |
| ER5000-B | ~190kw (290kw installed) |
320~350kg/h | 1000~1200kg/h | 85~95m3/h | 31~35m3/h | 79~87kg/h |
| ER6000-B | ~210kw (350kw installed) |
360~400kg/h | 1200~1400kg/h | 100~110m3/h | 36~40m3/h | 92~100kg/h |
How the Production Line Works:
1. Pulping System: Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
2. Forming Syatem: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.
3. Drying System: After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.
4. Vacuum System: Supply vacuum for forming machine.
5. Air Compressor System: Supply compressed air for forming machine.
6. Stacking & Packing System: Cutting the extra edges of products, to get more compact and neat edge.
Applications:
1. Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;
2. Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;
3. Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items
4. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…
What We Provide:
1. Pulp Molding Machine Manufacturing, including egg tray/egg box/ fruit tray machines, tableware thermoforming machines, machines for general quality industrial packages and high quality industrial packages.
2. Mould, Tool and Die Set Manufacturing. We have our mould center, we have professional team for designing and making moulds.
3. Project Management/Turn-key production line. We will make quotation and analysis based on customer’s investment and capacity and provide the complete production line.
4. Training and Transfer of know-how. We will send 1-2 engineers to customer's plant for installation guidance and debug; Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
Business Terms:
| NO. | ITEM | DESCRIPTION |
| 1 | Delivery Port | Guangzhou or Shenzhen, China. |
| 2 | Delivery Time | Normally 100~120 days |
| 3 | Packages | Strong and Suitable for Marine Shipment |
| 4 | Installation | Appoint 1-2 engineers to instruct buyer for installation, test-run and training. |
| 5 | Warranty | Life-long service, one year warranty( three year warranty for main machines) |
