Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine

Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine

Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine

Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine

Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	NANYA
Certification:	CE
Model Number:	YC042Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	150 Days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	50 Sets Per Year

Contact Now

Detailed Product Description

Product Name:	Full Automatic Servo Pulp Molding Machine	Model:	YC042Z
Mold Plate Size:	1300×1100mm	Mode:	One Forming Position And Two Hot Pressing Position
Adaptation To The Product's Height:	≤80mm
Highlight:	fully automatic pulp tableware machine , pulp molding tableware making machine , tableware machine with pulp molding

Fully automatic pulp molding machine for tableware products with big capacity

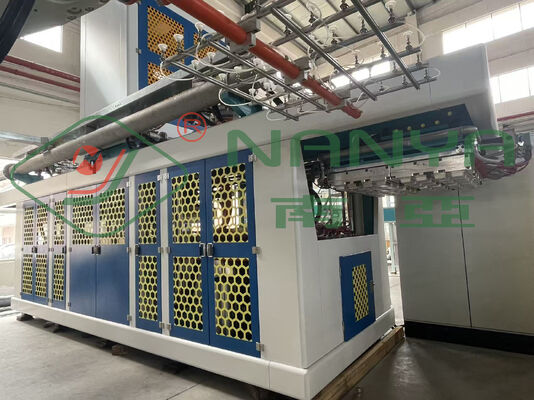

YC042 Pulp Molding Machine

A machine that uses specialized molds to automatically produce eco-friendly, disposable pulp products through vacuum forming, dehydration, and in-mold drying. The process ensures high-density, strong, and smooth finished products. Waterproof/oil-resistant additives can be included for enhanced functionality.

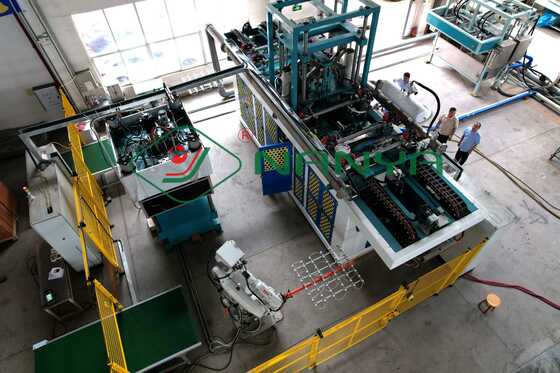

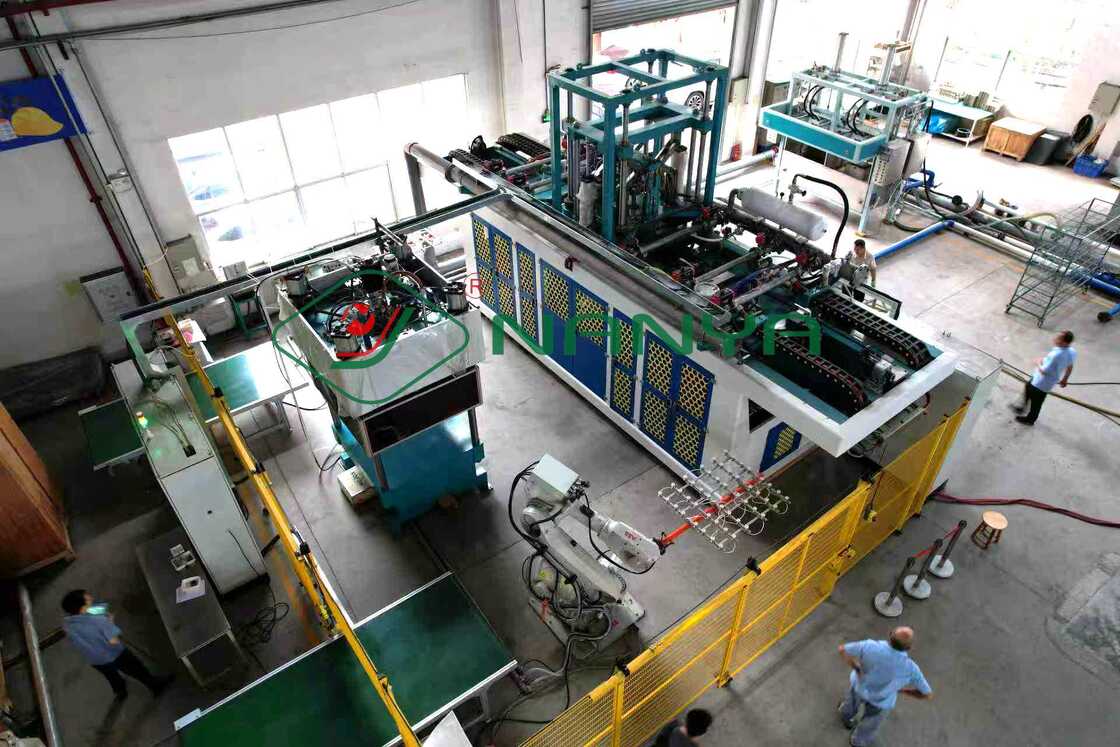

Z-Series Fully Automated Pulp Molding Line

An integrated production line that combines molding, drying, trimming, and stacking into one seamless process. Delivers finished products automatically with high efficiency and superior automation.

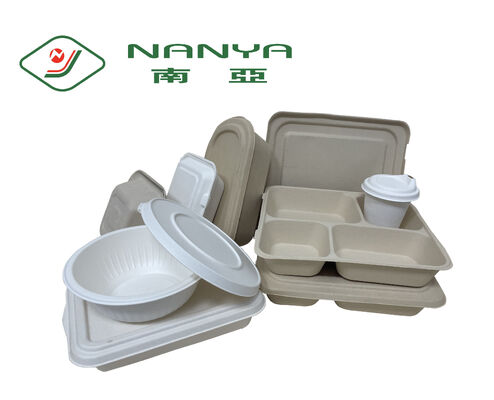

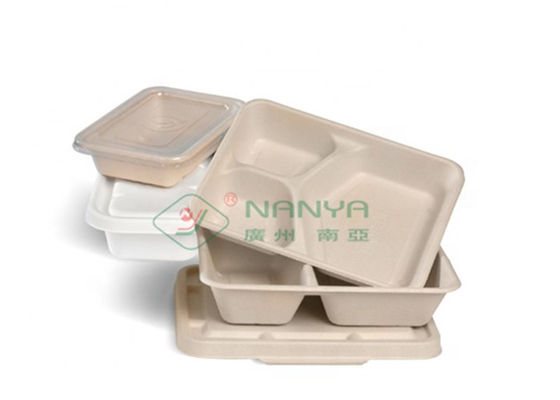

This machine is ideal for producing both pulp-molded tableware (e.g., fast-food containers, plates, bowls) and high-quality wet-press paper mold products (e.g., premium packaging, decorative items, crafts).

Basic technical parameters

Model	YC042Z
Mold plate size	1300×1100mm
Circuit control method	Siemens PLC, touch screen
Adaptation product height (mm)	≤80mm
Molding method	Pulp suction
Working cycle	40-90s
Vacuum requirement for work	-0.05~-0.07Mpa
Production line dimensions (mm)	9700mm ×9100mm×5000mm

Application

Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine 0

Fully automatic pulp molding machine for tableware products/ Pulp tableware making machine/ Tableware machine 1
