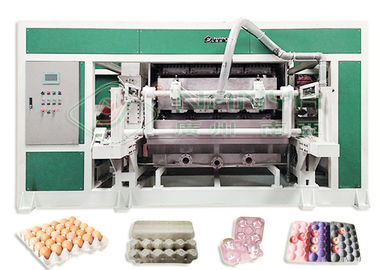

Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving

Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving

  • Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving
  • Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving
  • Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving
Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving
Product Details:
Place of Origin: Guangzhou, China
Brand Name: NANYA
Certification: CE
Model Number: ER4000-B
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 100 Days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 30 Sets Per Year
Contact Now
Detailed Product Description
Product Name: Egg Tray Forming Machine Capacity: 4000Pcs / H
Shaping Machine: Rotary Type After Service: Overseas Available
Feature: Water Saving Voltage: 220V/380V
Automation: Full Automated Fuel Type: Natural Gas / Diesel And Etc
High Light:

Egg Tray Forming Machine

,

Egg Tray Equipment

Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving


Egg Tray Forming Machine Descriptions:


High automation, low labor cost

Water saving

Low production cost

Energy saving(by 30%-50% compared with other manufacture)

Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)

Stable final product quality(same weight, same dimention, strong and good look)



Egg Tray Forming Machine Parameters:



 Product Name  Egg Tray Forming Machine
 Model Type  ER4000-B
 Output  4000pcs/h (base on 30-packed egg tray, size 300x300mm, weight 65g~70g)
 Workshop Required  ≥600 m2 (for reference only, can adjust according to actual size of client’s plant.)
 Applicable Industries  Poultry, agriculture, carton production industry, printing industry, paper industry
 Container Required  7 x 40 HQ
 Forming Machine   Rotary type with 8 plates. Each for 4 pcs/time
 Metal Dryer Size  22x1.6x4m  6-Layers
 Fuel for Dryer  LPD / Natural gas / Diesel / Steam / Wood / Coal and etc.


Egg Tray Forming Machine Consumption:



 Electricity Consumption  ~160 kw/h
 Electricity Installed  250 kw
 Material Consumption  250~280 kg/h
 Water Consumption  1.0~1.5 ton/h
Operator Required  4~5 persons/shift

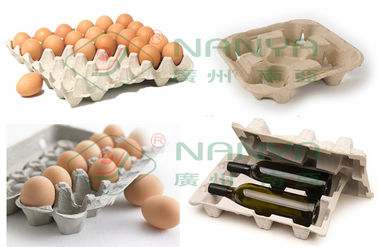

Egg Tray Forming Machine Applications:


 1  15, 20,30,40packed egg tray… quail egg tray
 2  6, 10,12,15,18,24 packed egg carton…
 3  Fruit tray, seeding cup and other Agricultural products
 4  2 or 4 packed cup holder
 5  Disposable Medical Care Products like bedpan, sick pad, female urinal…


Egg Tray Forming Machine Details



Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving 0

Rotary Egg Tray Forming Machine / Egg Tray Equipment Energy Saving 1

How this Production Line Works:

1. Pulping System: put raw material into hydrapulper, grinding with water. Adjust the pulp into certain density.
2. Forming System: the adjusted pulp will transfer to rotary machine, products will be formed in the moulds with the vacuum suction.
3. Drying System: products will drop down on the metal dryer for drying.
4. Hot Press System: for egg tray and fruit tray, they don't need this process; but for egg carton, this process is compulsory.
5. Stacking & Packing System: After dried or after hot press, the products will go to package. Court the number of the dried products, separate them and stack them up.

YOUTUBE Video Links:

https://youtu.be/dBXeqLyIC44


Main Business Terms:



 Payment Terms Can accept T/T, L/C, Cash, or Western Union
 Delivery Terms FOB Guangzhou, China. (CNF and CIF are also available.)
 Delivery Time 100~120 days
 Package  Export Standard Packing
 Warranty 1 year
 Installation Supplier should appoint 2 engineers to instruct buyer in installation, test-run and training
 Quotation Validity  90 days after the offering date
 Warranty Life-long service, sustainable supply and upgrade machine and parts. 1 year warranty( three-year warranty for mechanical parts and main machine)
