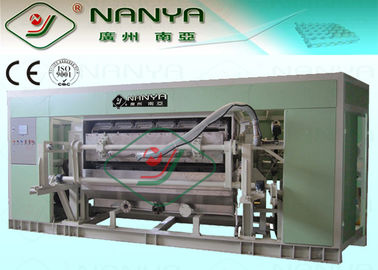

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment
8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment
8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: ER6000-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45-75 Days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 6000Pcs / H
Drying Type: Hot Air Dry Processing Material: Waste Paper / Waste Carton / Newspaper / White Paper
Forming Type: Vacuum Suction After-sales Service Provided: Engineers Available To Service Overseas
Voltage: 220 V - 450 V Standard: CE/TUV/SGS/ISO9001
Applicationa: Egg Tray, Egg Carton, Fruit Tray, Medical Tray
High Light:

Egg Tray Production Line

,

Egg Tray Forming Machine

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment





Specifications:



Model Type

ER6000-B

Capacity

6000 pcs/hour

Workshop Requirement

700 m2

Electricity Consumption

~210 kw

Electricity Installed

350 kw

Material Consumption

360~400 kg/h

Water Consumption

1200~1400 kg/h

Worker Requirement

5~6 persons

Container Requirement for Shipment

9 x 40 HQ

Forming Machine (Rotary Type)

Rotary type with 8 plates. Each for 6 pcs/time

Drying Line

22x3.4x4m  6-Layers

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





Fuel Consumption   (One Item Selectable)



Natural gas

100~110 m3/h

LPG

36~40 m3/h

Diesel

90~98 kg/h

Heavy Oil

92~100 kg/h

Steam

1.8~2.0 ton/h

Wood

360~400 kg/h

Coal

240~270 kg/h





Descriptions:

  • It’s a fully automatic egg tray production line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
  • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
  • Products are produced automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: ER6000-B
  • Voltage: 220V - 450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas

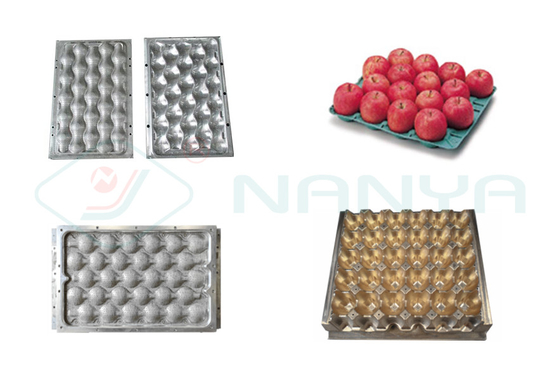

Applications:

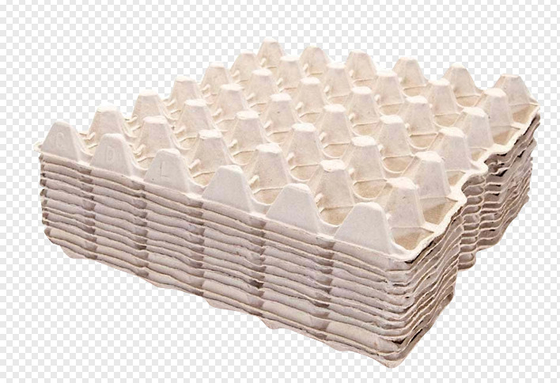

Egg tray

20,30,40packed egg tray…  quail egg tray

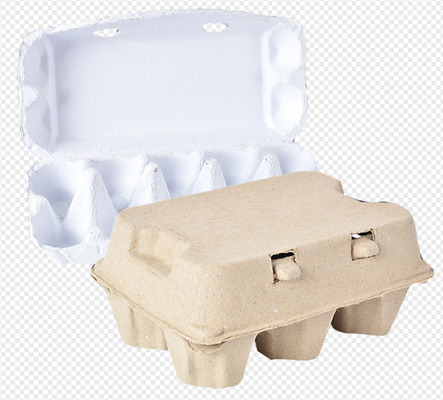

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment 0

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment 1





Working Theory:

  • The track or worker carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor firstly;
  • Then the conveyor pours down the raw material into the hydrapulper mixing with certain mater;
  • Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
  • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped on the working platform.
  • Finally the wet products will move into the drying line automatically. After a round or two, the products will get totally dry  and then go into stacker and get packed.



Technological process:

8 Sides Rotary Egg Tray Making Machine , Cup Holder Pulp Molding Equipment 2



Competitive Advantages:

  • Fully automatic production line
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 30 years experience in this field, Chinese reliable supplier, supported by the government and universities.
  • The standing director of Chinese packaging association



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
