6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment

6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment

    • 6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment
    • 6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment
    • 6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment
    • 6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment
    • 6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment
  • 6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 75~100 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Name: Pulp Molding Equipment Dryer Fuel: Gas / Coal / Biomass / Steam / Electricity
    Production: Egg Tray, Egg Box, Fruit Tray, Cup Carrier Control By: PLC + Touch Screen + Simens
    Layer: Multiple Layers Capacity: ~6000 Pcs/hr (based On 30 Egg Tray)
    Raw Material: Recycling Paper Forming Type: Rotary Forming
    Condition: 2020 Brand New Automation: Automated
    High Light:

    Egg Box Pulp Molding Equipment

    ,

    6000 pcs/hr Pulp Molding Equipment

    6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment





    Pulp Molding Equipment Introduction

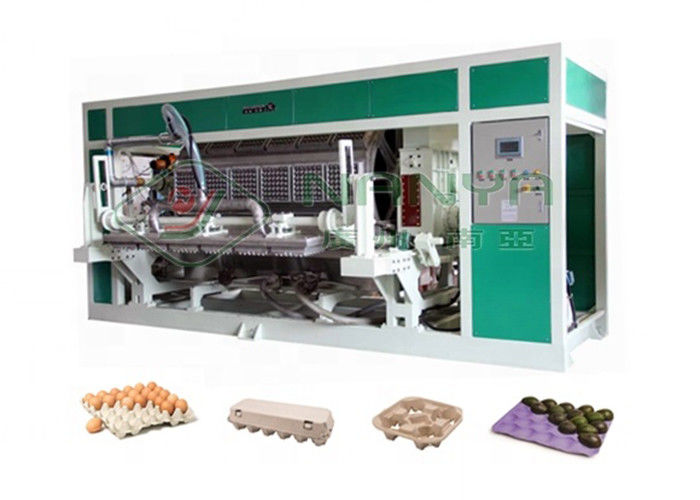

    Pulp Moulding Machinery is the machine which can use all kinds of waste paper as the raw material to produce egg tray, egg box, pizza box, industrial tray and other packing products etc. by changing different moulds. It has received good reputation for its good quality, high output, low energy-consuming and low maintenance.



    Pulp Molding Equipment Specifications:

    Model Type ER6000-B Pulp Molding Equipment
    Capacity 6000 pcs/hour (based on 30 egg tray)
    Workshop Requirement 700 m2
    Electricity Consumption ~210 kw
    Electricity Installed 350 kw
    Material Consumption 360~400 kg/h
    Water Consumption 1200~1400 kg/h
    Worker Requirement 5~6 persons
    Container Requirement for Shipment 9 x 40 HQ
    Forming Machine (Rotary Type) Rotary type with 8 plates. Each for 6 pcs/time
    Drying Line 22x3.4x4m 6-Layers
    Dryer Fuel  LPG, Diesel, Natural gas, Heavy oil, Steam, Wood, Coal...



    Production Information and Our Warranty:



    • Status: 2020 Brand new
    • Product Type: Egg Tray Machine
    • Processing Type: Pulp Molding Equipment
    • Place of origin: Guangdong, China
    • Brand: NANYA
    • Model Type: ER6000-B
    • Voltage: 220V - 450V
    • Approval: CE,
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas
    • 100% environmentally production process
    • Raw material: Any kind of waste paper, like old newspaper, waste carton, old books etc, and easy to get.



    Pulp Molding Machine Applications:

    Egg tray 20,30,40packed egg tray… quail egg tray
    Egg carton 6, 10,12,15,18,24 packed egg carton…
    Agricultural products Fruit tray, seeding cup
    Cup salver 2, 4 cup salver
    Disposable Medical Care Products Bedpan, sick pad, female urinal…
    packages Shoe tree, industrial package…
    6000 pcs/hr Automatic Rotary Egg Tray / Egg Box Molding Equipment 0



    How does this production line works:

    Pulping System Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.

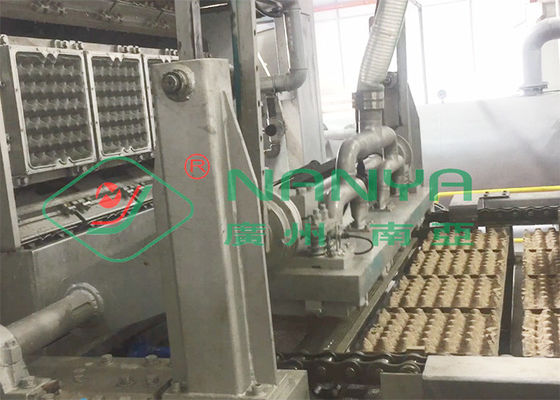

    Forming System When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.
    Drying System After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.
    Stacking & Packing System After dried, the products will go to package. Court the number of the dried products, sperate them and stack them up.




    Youtube video links:



    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4



    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.
