Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine

Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine

    • Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine
    • Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine
    • Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine
    • Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine
  • Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine

    Product Details:

    Place of Origin: Guangdong, China(Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ER3000-B~ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Strong and Suitable for Marine Shipment
    Delivery Time: Normally 100-120 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 100 sets/ years
    Contact Now
    Detailed Product Description
    Product Name: Rotary Egg Tray Machine Product Type: Pulp Molding Equipment
    Dryer: 6-Layers Dryer Fuel: Diesel/LPG/Natural Gas/Coal/Wood…
    Material: Waste Paper / Waste Carton / Newspaper Application: Egg Tray,egg Carton,fruit Tray,cup Carrier
    Capacity: 3000~6000pcs/h Automation: Fully Automatic
    Forming Type: Rotary Forming Control By: PLC + Touch Screen
    High Light:

    3000pcs/H Pulp Molding Equipment

    ,

    PLC Pulp Molding Equipment

    Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine




    Descriptions:


    • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.

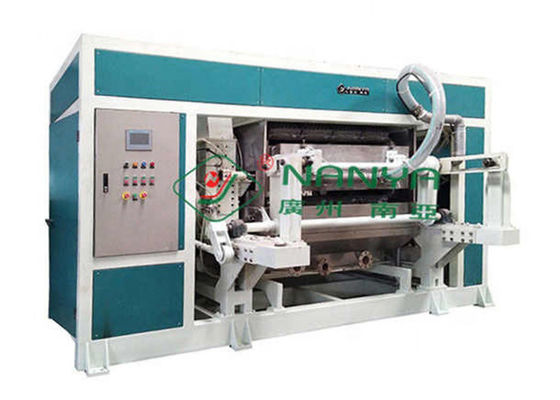

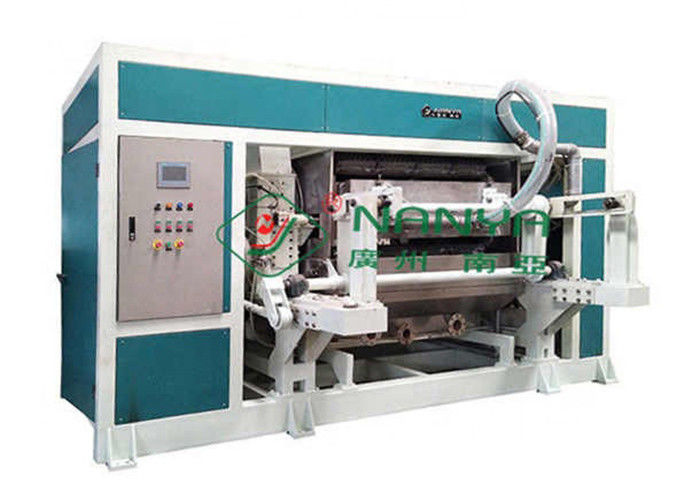

    • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a six layer drying line, and corollary equipments.
    • Products are produced automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
    • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



    Specifications:


    Model Capacity Forming Machine Drying System Workshop Space Operator Required
    ER3000-B 3000pcs/hour Rotary type with 8 plates. Each for 3pcs/time 20x2.2x4m
    6-Layers
    400m2 4~5persons
    ER4000-B 4000pcs/hour Rotary type with 8 plates. Each for 4pcs/time 20x2.6x4m
    6-Layers
    500m2 4~5persons
    ER5000-B 5000pcs/hour Rotary type with 8 plates. Each for 5pcs/time 20x3.0x4m
    6-Layers
    600m2 4~5persons
    ER6000-B 6000pcs/hour Rotary type with 8 plates. Each for 6pcs/time 20x3.4x4m
    6-Layers
    700m2 5~6persons
    Notess:
    1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
    2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant .



    Production Consumption:


    Model Electricity Consumption Material Consumption Water Consumption Natural gas LPG Diesel
    (Choose one one fuel from three fuel type)
    ER3000-B ~115kw
    (170kw installed)
    180~210kg/h 600~800kg/h 55~65m3/h 19~22m3/h 45~55kg/h
    ER4000-B ~150kw
    (240kw installed)
    250~280kg/h 800~1000kg/h 70~80m3/h 25~29m3/h 62~70kg/h
    ER5000-B ~190kw
    (290kw installed)
    320~350kg/h 1000~1200kg/h 85~95m3/h 31~35m3/h 79~87kg/h
    ER6000-B ~210kw
    (350kw installed)
    360~400kg/h 1200~1400kg/h 100~110m3/h 36~40m3/h 92~100kg/h



    How the Production Line Works:


    1. Pulping System: Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.

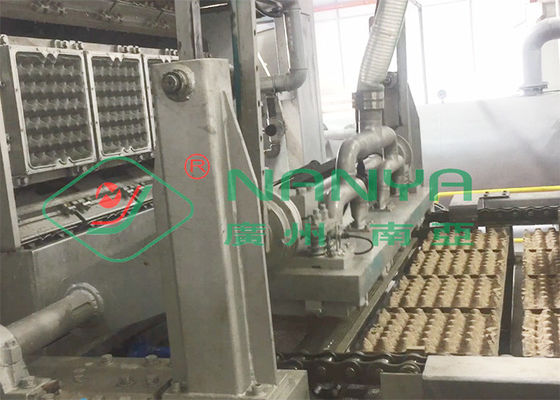

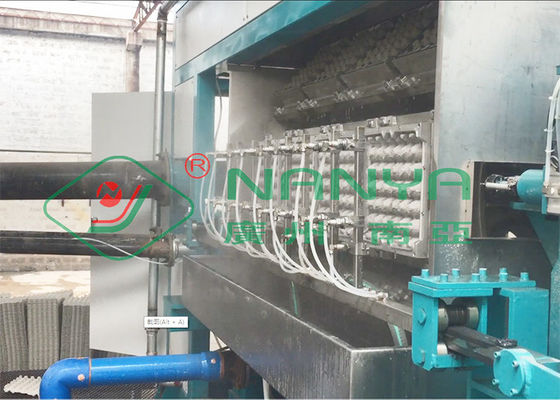

    2. Forming Syatem: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.



    3. Drying System: After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.



    4. Vacuum System: Supply vacuum for forming machine.



    5. Air Compressor System: Supply compressed air for forming machine.



    6. Stacking & Packing System: Cutting the extra edges of products, to get more compact and neat edge.



    YOUTUBE Links:


    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4



    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



    Applications:

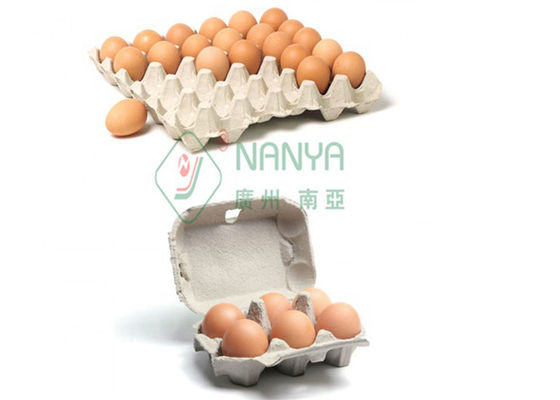

    1. Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;

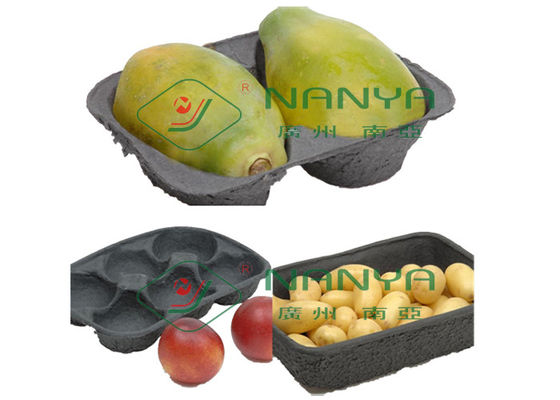

    2. Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;

    3. Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items

    4. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

    Paper Pulp Molding Equipment Automatic 30 Holes Egg Tray Machine 0



    Product Ranges:


    1. We make and offer egg tray/fruit tray machines, tableware making machines, high quality and general quality industrial package machines, medical care product making machine, hot press machine and moulds and so on.

    2. For egg tray/egg box machines, we have fully automatic and semi automatic production lines and many capacities for your choice. All the technical data will be matched based on your required.

    3. For semi automatic production line, the minimum capacity is 400pcs/h, the maximum capacity is 2000pcs/h; for fully automatic production line, the minimum capacity is 600pcs/h, the maximum capacity is 6000pcs/h.



    Business Terms:


    NO. ITEM DESCRIPTION
    1 Payment terms T/T, L/C, Cash etc
    2 Delivery terms FOB, CNF, CIF etc
    3 Delivery Port Guangzhou or Shenzhen, China.
    4 Delivery Time Normally 100~120 days
    5 Packages Strong and Suitable for Marine Shipment
    6 Installation Appoint 2 engineers to instruct buyer for installation, test-run and training.
    7 Warranty Life-long service, one year warranty( three year warranty for main machines)
