High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery

High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery

    • High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery
    • High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery
    • High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery
  • High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery

    Product Details:

    Place of Origin: China(mainland)
    Brand Name: Nanya
    Certification: CE,TUV,SGS, ISO9001
    Model Number: ER6000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 75~100 days
    Payment Terms: L/C, T/T,Cash, Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Name: Pulp Molding Machine Fuel: Gas / Coal / Biomass / Steam / Electricity
    Production: Egg Tray, Egg Carton, Fruit Tray, Cup Carrier After-Sale Service: Engineers Available To Service Machinery Overseas
    Capacity: 1 Ton/24hours Layer: Multiple Layer
    Feature: High Power Raw Material: Recycling Paper
    High Light:

    Pulp Molding Machinery

    ,

    Pulp Moulding Machinery

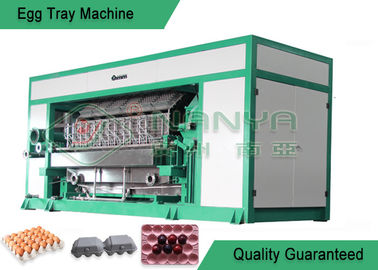

    High Power Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery



    Pulp Molding Machine Introduction



    Pulp Moulding Machinery is the machine which can use all kinds of waste paper as the raw material to produce egg tray, egg box, pizza box, industrial tray and other packing products etc. by changing different moulds. It has received good reputation for its good quality, high output, low energy-consuming and low maintenance.
    The raw material use general waste paper, like old book, newspaper.carton books ,etc



    Pulp Molding MachineSpecifications:



    Model Type ER6000-B Pulp Molding Machine
    Capacity 6000 pcs/hour
    Workshop Requirement 700 m2
    Electricity Consumption ~210 kw
    Electricity Installed 350 kw
    Material Consumption 360~400 kg/h
    Water Consumption 1200~1400 kg/h
    Worker Requirement 5~6 persons
    Container Requirement for Shipment 9 x 40 HQ
    Forming Machine (Rotary Type) Rotary type with 8 plates. Each for 6 pcs/time
    Drying Line 22x3.4x4m 6-Layers



    Fuel Consumption (One Item Selectable)



    Natural gas 100~110 m3/h
    LPG 36~40 m3/h
    Diesel 90~98 kg/h
    Heavy Oil 92~100 kg/h
    Steam 1.8~2.0 ton/h
    Wood 360~400 kg/h
    Coal 240~270 kg/h



    Production Information and Our Warranty:



    • Status: Brand new
    • Product Type: Egg Tray Machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong, China
    • Brand: NANYA
    • Model Type: ER6000-B
    • Voltage: 220V - 450V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas



    Pulp Molding Machine Applications:

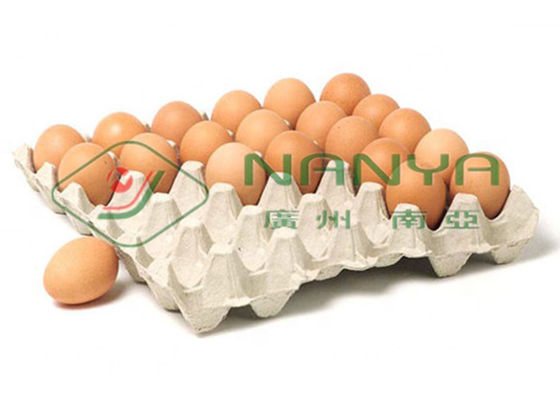

    Egg tray 20,30,40packed egg tray… quail egg tray

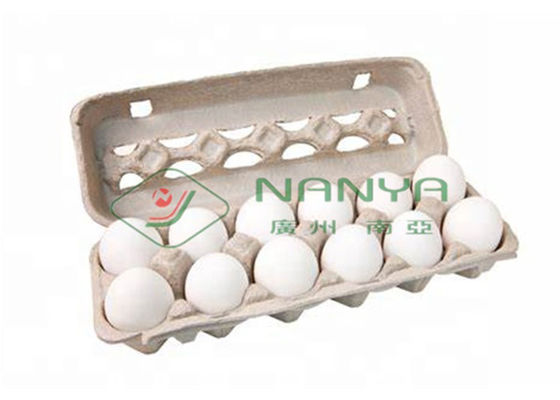

    Egg carton 6, 10,12,15,18,24 packed egg carton…
    Agricultural products Fruit tray, seeding cup
    Cup salver 2, 4 cup salver
    Disposable Medical Care Products Bedpan, sick pad, female urinal…
    packages Shoe tree, industrial package…


    High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery 0
    High Output Pulp Molding Machine / Recycled Paper Pulp Moulding Machinery 1



    How does this production line works:

    Pulping System Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
    Forming System When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.
    Drying System After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.
    Stacking & Packing System After dried, the products will go to package. Court the number of the dried products, sperate them and stack them up.




    Youtube video links:



    4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



    6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



    3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



    4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



    6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4



    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.
