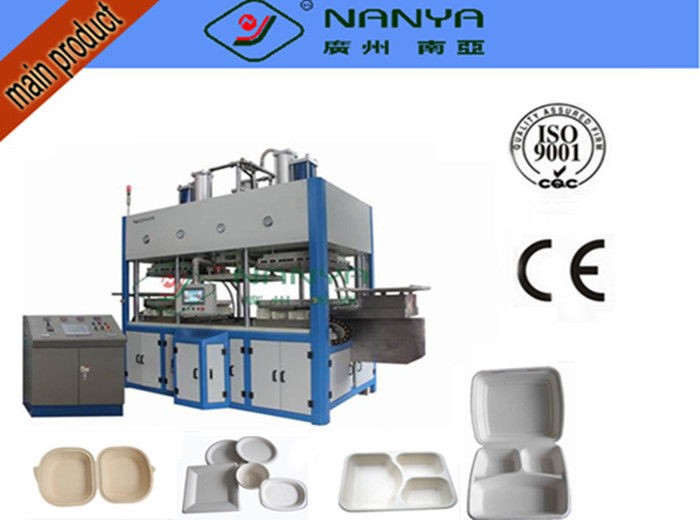

Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying

Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying

  • Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying
  • Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying
  • Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying
Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying
Product Details:
Place of Origin: China(mainland)
Brand Name: Nanya
Certification: CE,TUV,SGS, ISO9001
Model Number: YC030
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: Normally 45-75 days
Payment Terms: L/C, T/T,Cash, Western Union
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Product Name: Fully Automatic Tableware Forming Machine Fuel Type: Electricity And Conduction Oil…
Forming Type: Thermoforming Drying Applications: Dishware , Tableawre, Industrial Packaging
After-Sale Service: Engineers Available To Service Machinery Overseas Automation: Fully-automatic
Warranty: 12 Months Processing Material: Bagassse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp
High Light:

Paper Plate Making Machine

,

Paper Plate Manufacturing Machine

Fully Automatic Biodegradable Paper Pulp Molding Tableware Thermoforming Machine


Specifications:


Product Name

Fully Automatic Forming Machine

Model Type

YC030

Work Table Dimension

1100*800mm

Maximum Boost Pressure of Hydraulic Cylinder

40tons

Hot-press Mould Closing Height

80mm

Product Height

≤100mm

Nominal Voltage

380V

Rated Power

5kw

Machine Dimension for Transportation

5230*2200*2480mm3

The Whole Machine Dimension

5230*2200*3715 mm3

Working Period

20-80s (Adjustable)

Circuit Control Mode

PLC & Touch Screen

Solenoid Valve

DC24V

Maximum Electrical Heating Power

105kw

Forming Method

Vacuum Forming

Drying Method

Thermoforming Drying

Normal Working Air Pressure

0.6-0.75PMa

Vacuum Pressure

-0.06-0.075PMa



Descriptions:

  • The processes of forming, drying and shape finishing are done in one machine automatically and continuously.
  • Hydraulic drive pressing
  • Siemens Servo motor driver for transversal moving
  • With auto mould washing and edge washing.
  • PLC + touch screen control
  • Stainless pulp tank
  • The main electrical elements are Siemens.
  • The main pneumatic element is FESTO or SMC.


Competitive Advantages:

  • Fully automatic
  • Energy saving and labor utilization
  • High quality egg tray machine
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
  • The standing director of Chinese packaging association


Production Information and Our Warranty :

  • Fully Automatic Tableware Production Line
  • Mainly used for the gigh-grade pulp molding products, such as dish trays, tableware, cup carriers, mask and some inside industrial packaging for electronic devices.
  • Status: Brand new
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: Fully Automatic Tableware Forming Machine
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Monthes
  • After-Sale Service: Engineers available to service machinery overseas


Applications:


Food container

Dishware, tableware, lunch box, bowl…

Artware

Mask, Christmas balls, Easter Eggs , boutiques…

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

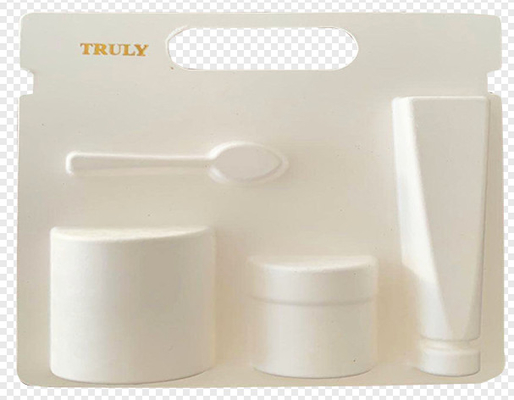

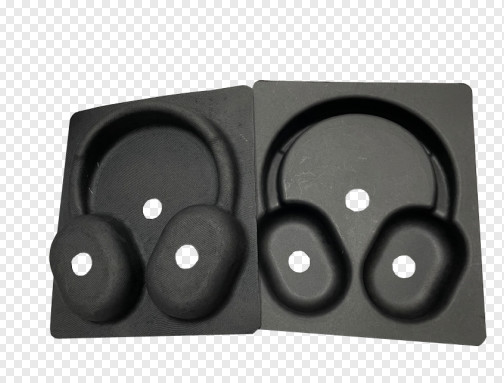

High quality packages

Mobile phone package, camera package,

Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying 0



Business Terms:


NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date



Schematic Diagram:
Thermoforming Pulp Moulded Products Tableware Making Machine - Thermoforming Drying 1
