Quality Product Is Our Passion; Service&Innnovation Is Our Mission.
 |
| Place of Origin: | China |
| Brand Name: | NANYA |
| Certification: | CE/TUV/SGS/ISO9001 |
| Model Number: | TF-10D |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 45-120days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50sets/month |
| Target Products: | Degradable Pulp Molding Dishware | Automation: | Automatic (Forming, Drying/pressing, Edge Cutting In One Machine) |
|---|---|---|---|
| Capacity: | 300~450kg Per Hour | Workshop Recommend: | >=2000m2 |
| Type Of Material: | Virgin Pulp;Or Bagasse Pulp; Or Bamboo Pulp; Or Straw Pulp | Operator Required: | 7~9 People/shift |
| High Light: | Bagasse Pulp Tableware Making Machine,300kg Per Hour Tableware Making Machine,Degradable Paper Plate Making Machine |
||
Pulp Plate Making Machine/Pulp Tableware Products Making Machine/Pulp Tray Making Machine
Machine Introduction

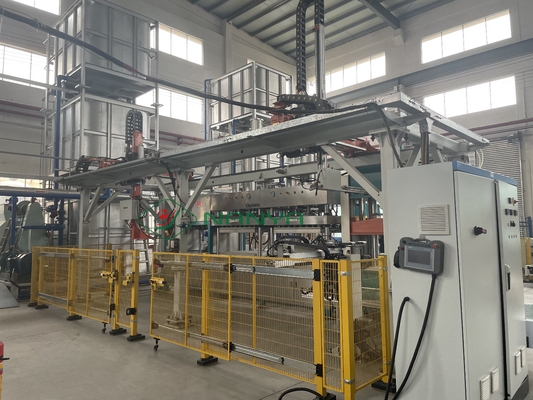

YDQ series pulp molding all-in-one machine with manipulator is an automatic tableware production equipment developed by Nanya Company. Forming and drying/pressing stations combined in one machine. The forming station is in the middle of the machine, and the hot press/drying station are on the left and right sides of the machine.
Used in the production of various tableware products, such as paper plates, lunch boxes, tableware, coffee cups, etc.
Please kindly see the parameters as below:
| NO. | Item | Information | Notes |
|
1 |
Target products |
Degradable pulp molding dishware | |
|
2 |
Automation |
automatic (Forming, drying/pressing, edge cutting in one machine) |
|
| 3 | Capacity | 300~450kg per hour | |
| 4 | Workshop Recommend | >=2000m2 |
It could be adjusted according to the user's existing workshop |
|
5 |
Type of Material |
virgin pulp |
Wood pulp; Or bagasse pulp; Or bamboo pulp; Or straw pulp |
|
6 |
Material consumption |
300-450kg per hour | |
|
7a |
Electricity consumption if heat by conduction oil |
350~500kw | 900kw installed |
|
Fuel consumption if heat by conduction oil |
Natural gas 100~150m3/h |
conduction oil boiler required: 1200000kcal/h |
|
|
7b |
Electricity consumption if heat by electricity |
1100~1500kw (no fuel consumption) |
2300kw installed |
| 8 | Water consumption | 600-800kg/h | |
|
9 |
Chemical for Water Resistance |
10~15kg/h |
|
|
10 |
Chemical for Oil Resistance |
2~3kg/h |
|
|
11 |
Operator Required |
7~9 people/shift |
Process:
Application:
