Quality Product Is Our Passion; Service&Innnovation Is Our Mission.
 |
| Place of Origin: | Guangdong China(Mainland) |
| Brand Name: | NANYA |
| Certification: | CE |
| Model Number: | TA-05B |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | Normally 90 days |
| Payment Terms: | T/T or western Union or L/C |
| Supply Ability: | 50 sets per month |
| Product Name: | Tableware Making Machine | Machine Type: | Pulp Molding Machine |
|---|---|---|---|
| Automation: | Automatated | Forming Type: | Reciprocating |
| Drying: | Thermoforming | Raw Material: | Bagasse Pulp/Bamboo Pulp/Straw Pulp/Wood Pulp |
| Warranty: | 12 Months | Control By: | PLC + Touch Screen |
| Heating Fuel: | Electricity Or Thermo Conduction Oil | Drive System: | Hydraulic |
| High Light: | Paper Plate Making Machine,Paper Plate Manufacturing Machine,Food Container Pulp Tableware Machine |
||
Disposable Wood Pulp Food Container Tableware Making Machine
Main Parameters:
|
Model Type |
TA-05B |
| Forming Machine Quantity | 5 sets of forming machines |
|
Capacity |
7000 pcs/h (120~150kg/h) |
|
Workshop Required |
600 m2 |
|
Electricity Consumption |
450 kw |
|
Electricity Installed |
220 kw |
| Raw Material | bagasse pulp/bamboo pulp/straw pulp/wood pulp |
|
Material Consumption |
120 ~ 150 kg/h |
|
Water Consumption |
500 ~ 600 kg/h |
|
Worker Requirement |
6 persons |
|
Container Requirement for Shipment |
4 x 40’ HQ |
|
Forming Type |
Vacuum suction |
|
Drying Method |
Drying in mould |
|
Notes:
|
|
Main Features:
| Automation | Full automatic pulp molding tableware production line(forming/drying/pressing integrative machine) |
| Water Trimming | With water trimming process, can be trimming free. The edge trimming machine is optional. |
| Fuel Consumption | Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler. |
| Environment Impact | No waste water or waste air will be discharge during running. |
| Final Products | Food grade and 100% biodegradable and environmental friendly. |
Production Information and Our Warranty:

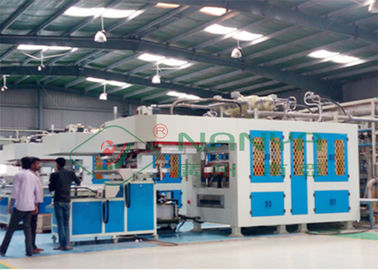

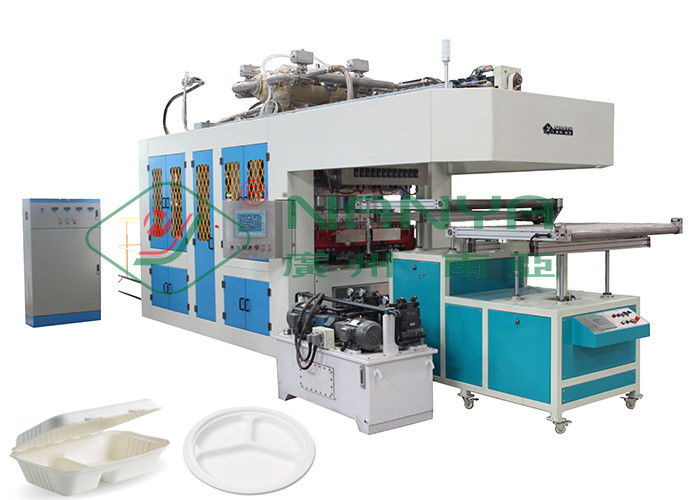

Main Machine Picture:
Flow Chart Explanation:
Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
Forming and Drying System: When adjusting the pulp consistency, the pulp will go to the forming machine. Products will be formed on the moulds. Then needs labor to transfer products on heating hot press moulds.
Vacuum System: Supply vacuum for forming machine.
Air Compressor System: Supply compressed air for forming machine.
Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.(Optional for automatic forming machine)
Disinfect System: UV or microwave disinfect, then go to package.

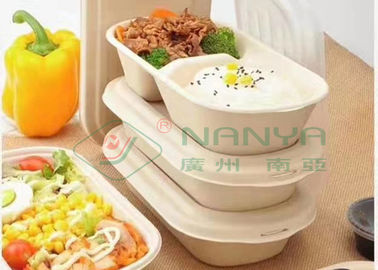

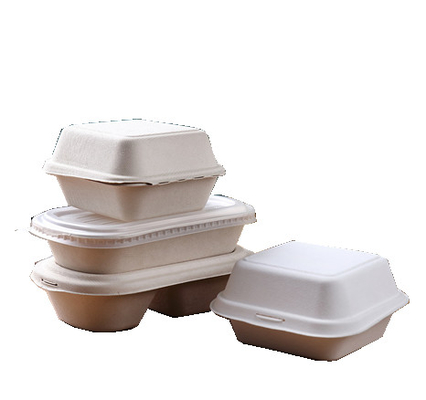

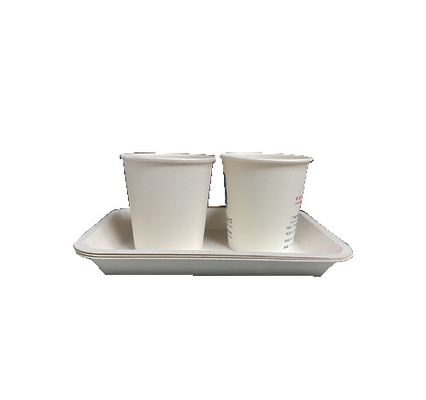

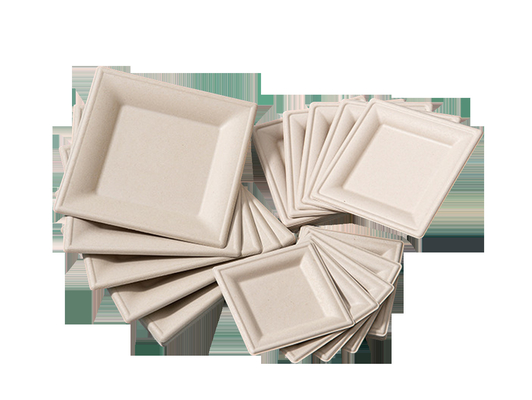

Finished Products:
| By changing moulds, the same machine can make different products | |
| Tableware Products | Paper plates, paper bowls, cups, lunch boxes, container, etc. |
| High quality packages | Mobile phone package, camera package, makeup box, |
|
High quality food package |
Cup holder, fruit trays, egg trays, egg box, |
|
Artware |
Mask, Christmas balls, Easter Eggs , boutiques… |
|
Disposable Medical Care Products |
Bedpan, sick pad, female urinal… |
|
|
|
Business Terms:
|
NO. |
ITEM |
DESCRIPTION |
|
1 |
Delivery Port |
Guangzhou or Shenzhen, China. |
|
2 |
Delivery Time |
Normally 90 days |
|
3 |
Packages |
Export standard packing |
|
4 |
Installation |
Appoint engineers to instruct buyer for installation, test-run and training. |
|
5 |
Warranty |
Life-long service, one year warranty( three year warranty for main machines) |
NANYA Advantages:
- Established in 1994, pioneer and leader in pulp molding industry
- Professional in all kind of pulp molding machine, having over 100 model machine for choosing
- Offer whole line of machine, also design service
- Offer Installation service/ Training service
- Considerate after sales service, reply in 24 hours
