Quality Product Is Our Passion; Service&Innnovation Is Our Mission.
 |
| Place of Origin: | Guangdong China(Mainland) |
| Brand Name: | NANYA |
| Certification: | CE |
| Model Number: | TA-10B |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | Normally 90 days |
| Payment Terms: | T/T or western Union or L/C |
| Supply Ability: | 50 sets per month |
| Product Name: | Tableware Making Machine | Automation: | Automatic |
|---|---|---|---|
| Raw Material: | Sugarcane Pulp/ Clean Paper Pulp | Warranty: | 12 Months |
| Installation: | Engineer Available Abroad Service | Heating Fuel: | Thermo Conduction Oil |
| Production: | Disposible Tableware, Paper Plate,food Box | Dimension(L*W*H): | Depends On Final Production Line |
| Highlight: | Paper Plate Manufacturing Machine,Paper Dish Making Machine,CE Biodegradable Paper Plate Making Machine |
||
Paper Plate Tableware Making Machine Dry And Cut In Mold CE Certificate
Tableware Making Machine Brief Introduction
1. NANYA automated pulp molding production line can make table ware, catering ware, pulp molded plate, paper bowl, food containers, cup holders, saucers, food containers and etc.
2. Take sugarcane pulp or reeds pulp, straw pulp, bamboo pulp and other clean paper pulp as raw material, 100% biodegradable.
Tableware Making Machine Main Parameters:
|
Model Type |
Paper Plate Tableware Making Machine Dry And Cut In Mold CE Certificate |
| Forming Machine Quantity | 10 sets of forming machines |
|
Capacity |
300~400kg/h) |
|
Workshop Required |
≥2000 m2 |
|
Electricity Consumption |
450 kw |
|
Electricity Installed |
350~500 kw(heating by thermo conduction oil) |
| Raw Material | Sugarcane pulp/clean paper pulp |
|
Material Consumption |
300 ~ 400 kg/h |
|
Forming Type |
Vacuum suction |
|
Drying Method |
Drying in mould |
Tableware Making Machine Main Features:
| Automation | Full automatic pulp molding tableware production line(forming/drying/pressing integrative machine) |
| Water Trimming | With water trimming process, can be trimming free. The edge trimming machine is optional. |
| Fuel Consumption | Can use electricity or thermo conduction oil. If choose thermo conduction oil heating, need to prepare a boiler. |
| Environment Impact | No waste water or waste air will be discharge during running. |
| Final Products | Food grade and 100% biodegradable and environmental friendly. |

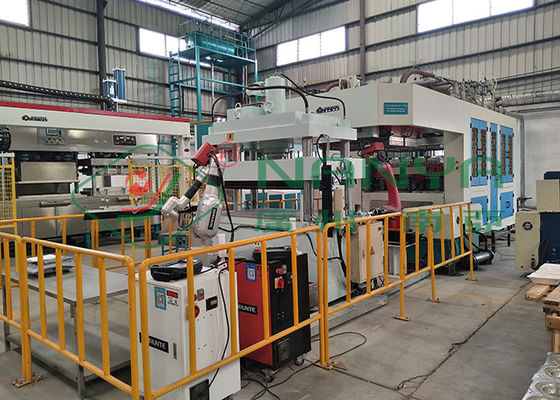

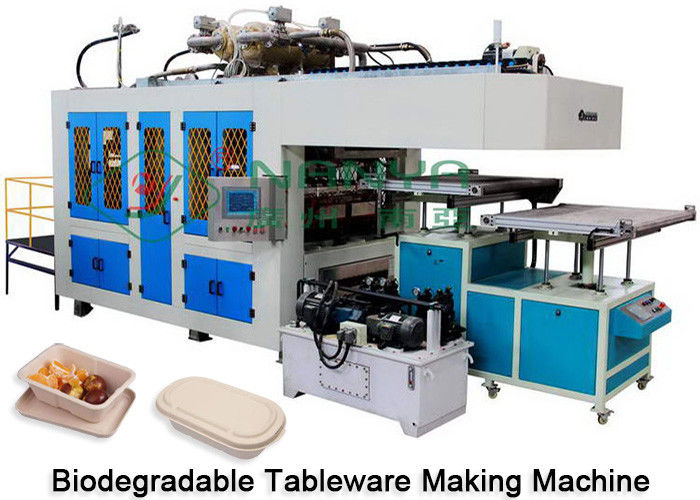

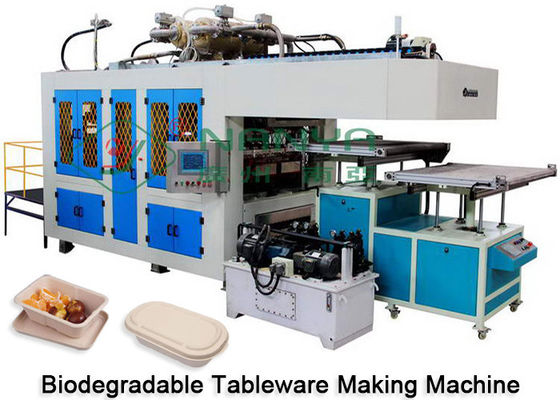

Tableware Making Machine Picture:
Flow Chart Explanation:
Pulping System: Clean virgin paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.
Forming And Hot-Pressing System (with the function of forming, drying, hot pressing and stacking): The pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; finally products will be transferred and stacked together.
Vacuum System: Supply vacuum for forming machine.
Air Compressor System: Supply compressed air for forming machine.
Cementing Machine & Laminating Machine: Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines.
Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.(Optional for automatic forming machine)
Disinfect System: UV or microwave disfect, then go to package.
https://www.youtube.com/watch?v=Gsc2hTq77rY

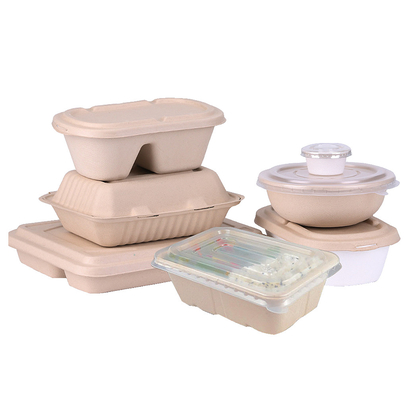

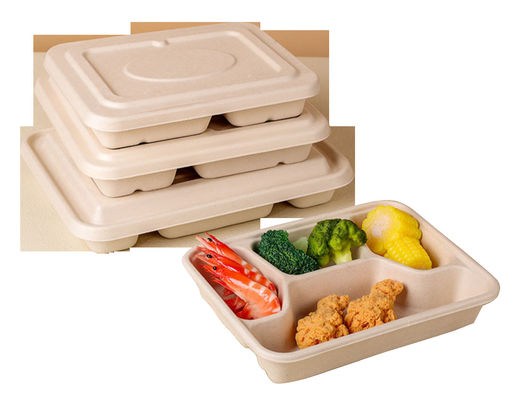

Finished Products:
| By changing moulds, the same machine can make different products | |
| Tableware Products | tableware, catering ware, pulp molded plate, paper bowl, food containers, saucers, food containers and etc |
| High quality packages | Mobile phone package, camera package, makeup box, |
|
High quality food package |
Cup holder, fruit trays, egg trays, egg box, |
|
Artware |
Mask, Christmas balls, Easter Eggs , boutiques… |
|
Disposable Medical Care Products |
Bedpan, sick pad, female urinal… |
|
|
|
What We Provide:
1. Pulp Molding Machine Manufacturing, including tableware thermoforming machines, egg tray/egg box/ fruit tray machines, machines for general quality industrial packages and high quality industrial packages.
2. Mould, Tool and Die Set Manufacturing. We have our mould center, we have professional team for designing and making moulds.
3. Project Management/Turn-key production line. We will make quotation and analysis based on customer’s investment and capacity and provide the complete production line.
4. Training and Transfer of know-how. We will send 1 or 2 engineers to customer's plant for installation guidance and debug; Training includes the structure explanation of the equipment, production technology, maintenance and common troubleshooting and practical exercises.
