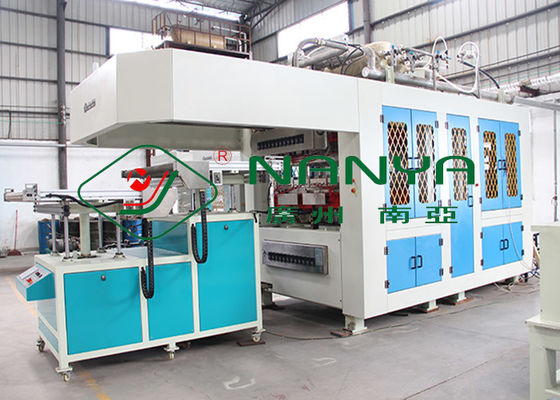

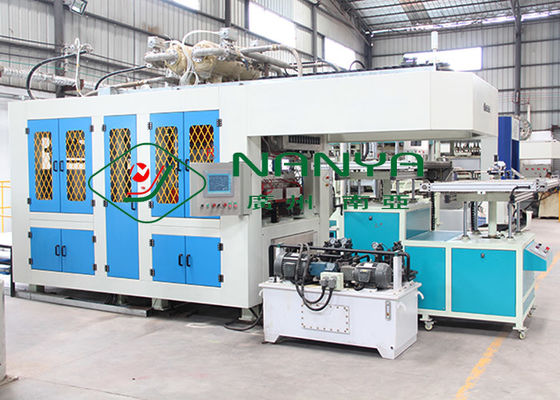

Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H

Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H

Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H
Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H
Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: TA-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45~75 Days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 50 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Application: Dishware, Tableware
Capacity: 3000pcs/h Processing Material: Bagasse Pulp Or Bamboo Pulp Or Straw Pulp Or Wood Pulp
Automation: Fully Automatic Voltage: 220V - 450V
Forming Type: Vacuum Suction / Thermoform Drying Type: Drying In Mould
Highlight:

Paper Plate Making Machine

,

Paper Plate Manufacturing Machine

Eco-firendly Bamboo Fiber Tableware Making Machine , Paper Plate Molding Machinery 3000Pcs / H



Specifications:



Model type

TA-02

Capacity

3000pcs/h

Workshop requirement

300m2

Electricity consumption

200kw

Electricity Installed

250kw

Material consumption

50~60kg/h

Water consumption

150~200kg/h

Worker requirement

4 persons

Container requirement for shipment

2 x 40’HQ

Forming type

Fully automatic thermoforming

Drying method

Drying in mould

Notes:

1. The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products.

2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Description:

  • This is a Fully Automatic pulp molding Production Line
  •  It’s mainly used for high quality pulp molded products.  Such as dishware, artware, disposable medical care products, high quality industrial package...
  •  This type of production line is constituted by a hydrapulper system, a fully automatic thermoforming machine(forming/drying/pressing integrative machine), and corollary equipments.
  • Products are output automatically from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: thermoforming Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: TA-02
  • Voltage: 220-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Monthes
  • After-Sale Service: Engineers available to service machinery overseas



Applications:



Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Artware

Mask, Christmas balls, Easter Eggs , boutiques…

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

High quality packages

Mobile phone package, camera package,

Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H 0





Competitive Advantages:

  • Fully automatic
  • Siemens servo motor applied.
  • Energy saving and labor utilization
  • High quality thermoforming machine, forming, drying, pressing finished automatically in one machine
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 30 years experience in this field, Chinese reliable supplier, supported by the government and university.
  • The standing director of Chinese packaging association



Working Theory:

  • The track or worker carries the raw material into the conveyor;
  • The conveyor pours down the raw material into the hydrapulper mixing with certain mater;
  • The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
  • Next the pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped and dried on the working platform;
  • After that the products need to be edged and disinfected.


Schematic Diagram:



Eco - Firendly Paper Bowl Making Machine , Paper Cup Machine 3000Pcs / H 1



Business Terms:



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service
  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
