| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | Nanya |
| Certification: | CE |
| Model Number: | TS-01 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 45~75 days |
| Payment Terms: | T/T or Western Union or L/C or Cash |
| Supply Ability: | 50 sets per month |
| Product Name: | Paper Plate Making Machine | Automation: | Semi Automatic |
|---|---|---|---|
| Process Type: | Pulp Molding Machine | Application: | Dinnerware , Tableware |
| Raw Material: | Virgin Bagasse/bamboo/straw/wood Pulp | Warranty: | 12 Months |
| Drying Type: | Thermal Forming | Heating: | Electricity/Thermal Oil |
| High Light: | paper plate forming machine,paper plates making machine |
||
Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware
Paper Plate Making Machine Introduction
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
The raw material is the clean virgin paper, like the sugarcane bagasse pulp, bamboo pulp, straw pulp, wood pulp and etc.
Paper Plate Making MachineTechnical Parameters
| Model type | TS-01 Semi Automatic Paper Plate Making Machine For Dinnerware , Tableware |
| Capacity | 800~1000pcs/h (Base on 8' round plate) |
| Mould Platen Size | 900*600mm |
| Mould Quantity | 1 set of Forming Mould & 2 sets of Hot Press Mould |
| Workshop Required | >=200m2 |
| Electricity Consumption | 55~60kw/h (82kw installed) |
| Material Consumption | 15~20kg/h |
| Type of Material | Virgin bagasse/bamboo/straw/wood pulp |
| Water Consumption | 40~50kg/h |
| Worker Required | 4 persons |
| Container Required | 1 x 40’HQ |
| Forming Type | Vacuum suction, thermoforming |

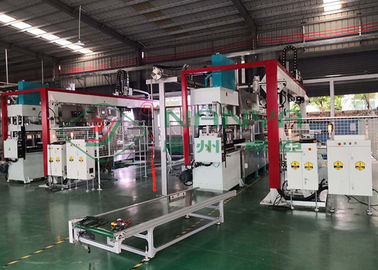

Main Machine Image:
Working System:
Pulping System: Turn clean virgin paper into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.
Forming System: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.
Drying System: After forming, the tranfer moulds will move forward hot press moulds automatically. The procedures of forming, drying and hot-press shaping are completed in the forming machine.
Products:
The below are products made by our machine, by changing moulds, the machine can make different products.
YOUTUBE Links:
| Semi Automatic Tableware Production Line | https://www.youtube.com/watch?v=ZVzzpF2ghRw&t=11s |
| For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us. | |
