Waste Paper Turnover Semi-automatic Industrial Packaging Products Forming Machinery

Waste Paper Turnover Semi-automatic Industrial Packaging Products Forming Machinery

Product Details:

Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: CW201

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30~60 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Automation: Semi-automatic
Forming Type: Vacuum Suction Standard: CE/TUV/SGS/ISO9001
Application: Egg Tary / Egg Carton / Egg Box / Fruit Tray / Artcraft / Mediacal Products... Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
After-sales Service Provided: Engineers Available To Service Overseas Machine Dimension: 3100×1300×2400mm

Waste Paper Turnover Semi-automatic Industrial Packaging Products Forming Machinery





Specifications:



Model Type

CW201

Product Name

Semi-automatic reciprocating double cylinder forming machine

 Nominal Voltage

220V±10%

Rated Frequency

50Hz

Absorbing Pulp Time

0~30seconds (Adjustable)

Dehydrating Time

0~30seconds (Adjustable)

Production Cycle

10~60seconds(Adjustable)

Vacuum

-0.07 ~ -0.05MPa

Input Air Pressure

0.5~0.6MPa

Power Consumption

≤1KW

Cylinder Diameter

100mm

Cylinder Route

650 mm

The Height of the product

≤180mm

Mould Plate Size

1000×660mm

Machine Dimension

3100×1300×2400mm

For this type of machine, we have mould plate sizes of 500*700mm,600*700mm and 600*800mm for customer’s choice.





Descriptions:

  • This is a semi-automatic reciprocating cylinder forming machine.
  • Semi-automatic forming machine needs workers operating for the connection from forming to drying process.
  • Paper pulp molding machine for industrial packaging takes paper pulp as raw material, and absorbs the pulp into the mould under the help of vacuum. After a while, the machine makes products reach the specific thickness and dry wet ratio. After the processes of shifting mould and demoulding, the products are formed completely.
  • This machine can produce two kinds of products with different shapes and thickness at the same time.

  • This kind of machine has simple structure and flexible configuration and it is easy to operate. And the price is quite competitive.
  • We adopt the advanced PLC and touch screen to operate the machine. The pulp tanks and control cabinet are made of stainless steel material. All these parts make the machine good performance and long service life.



Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: Semi-automatic reciprocating double cylinder forming machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: CW201
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas



Competitive Advantages:

  • Energy saving and labor utilization
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
  • The standing director of Chinese packaging association



Applications:

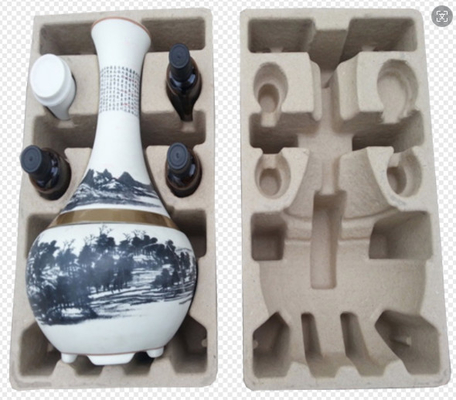

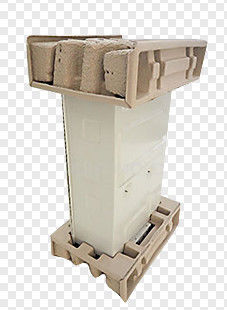

High Quality Packages & Shockproof Packaging

Mobile Phone Package, Camera Package, Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns

Cup salver

2, 4 cup salver

Artware

Mask, Christmas Balls, Easter Eggs , Boutiques…

Agricultural products

Fruit tray, seeding cup

Disposable Medical Care Products

Bedpan, Sick Pad, Female Urinal…

Waste Paper Turnover Semi-automatic Industrial Packaging Products Forming Machinery







Business Terms:



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

30-60 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
