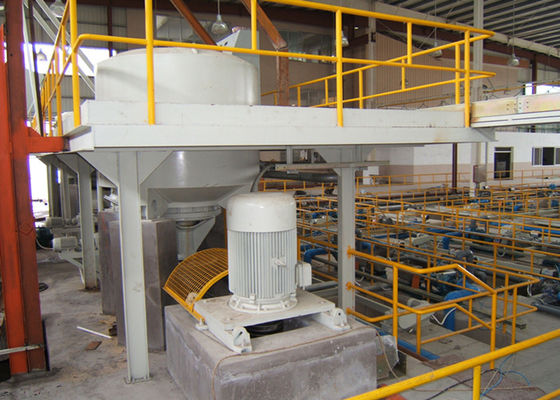

Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h

Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h

  • Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h
  • Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h
  • Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h
Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: ZJ040-37
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 30~60 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Standard: CE/TUV/SGS/ISO9001
Applications: Egg Tray, Fruit Tray, Coffee-cup Tray, Medical Tray, Craft... Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
After-sales Service Provided: Engineers Available To Service Overseas Warranty: 12 Months
Capacity: 5~6 Tons/day Product Dimension: 2400x1500x2200mm
High Light:

Paper Tray Forming Machine

,

Tray Forming Equipment

Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h


Specifications:



Model Type

ZJ040-37

Product Name

Vertical Hydrapulper

Capacity

5~6 tons/day

Volume

2.5m3

Dielectric Consistence

5~7%

Power installation

37kw

Voltage

380V

Impeller Knife

Cast Iron

Material Code

Q235 6mm & Cast Iron

Rotational Speed

380r/min

Driving V-belt

C4400 *5

The Inner Diameter of the Tank

1500mm

The Aperture of the Sieve Plate

3~6mm

Product Dimension

2400x1500x2200mm

For vertical hydrapulper, we have 1.5m3,2 m3 3.2 m3 and 5m3 volumes for customer’s choice.



Descriptions:

  • A whole pulp-making system includes a hydrapulper, a pulp pump, a water pump and a agitator.
  • Hydrapulper is the main equipment in pulp making system. It stirs and crushes the raw materials (wasted paper or original pulp plate) of the paper molding products with the help of hydraulic force. Then the hydrapulper mixes them into the water. And the pulp material is formed which meets the requirement and can make the pulp molding products anytime.
  • The standard model hydrahpulper consists of 0.5m3-5m3 specifications. The allocated motor power ranges from 5.5-75kw, which meets the needs of processing of different sizes products quite well. According to clients’ special requirements, the equipments of other specifications and full-stainless can be provided as well.


Production Information and Our Warranty:

  • Status: Brand New
  • Model Tpye: ZJ040-37
  • Product Type: Paper Pulp Hydrapulper
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Voltage: 380V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas


Competitive Advantages:

  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
  • The standing director of Chinese packaging association


Applications



Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Food container

Dishware, tableware, lunch box, bowl…

Artware

Mask, Christmas balls, Easter Eggs , boutiques…

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

High quality packages

Mobile phone package, camera package,



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

30-60 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date



 Schematic Diagram

Paper Pulp Fruit Tray Forming Machine Vertical Hydrapulpter / 250~300kg/h 0
