Semi-automatic Reciprocating Single Cylinder Egg Tray Forming Equipment

    • Semi-automatic Reciprocating Single Cylinder Egg Tray Forming Equipment
    • Semi-automatic Reciprocating Single Cylinder Egg Tray Forming Equipment
    • Semi-automatic Reciprocating Single Cylinder Egg Tray Forming Equipment
  • Semi-automatic Reciprocating Single Cylinder Egg Tray Forming Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: CW030

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30~60 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Automation: Semi-automatic
    Forming Type: Vacuum Suction Standard: CE/TUV/SGS/ISO9001
    Application: Egg Tary / Egg Carton / Egg Box / Fruit Tray / Artcraft / Mediacal Products... Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
    After-sales Service Provided: Engineers Available To Service Overseas Machine Dimension: 1900×1300×2650mm

    Semi-automatic Reciprocating-Single Cylinder Egg Box Forming Equipment





    Specifications:



    Model Type

    CW030

    Product Name

    Semi-automatic reciprocating-single cylinder forming machine

     Nominal Voltage

    220V±10%

    Rated Frequency

    50Hz

    Absorbing Pulp Time

    0~30seconds (Adjustable)

    Dehydrating Time

    0~30seconds (Adjustable)

    Production Cycle

    10~60seconds(Adjustable)

    Vacuum

    -0.07 ~ -0.05MPa

    Input Air Pressure

    0.5~0.6 M Pa

    Power Consumption

    ≤1KW

    Cylinder Diameter

    125mm

    Cylinder Route

    650 mm

    The Height of the product

    ≤180mm

    Mould Plate Size

    1000×660mm

    Machine Dimension

    1900×1300×2650mm





    Descriptions:

    • This is a semi-automatic reciprocating-single cylinder forming machine
    • Semi-automatic forming machine needs workers operating for the connection from forming to drying process.
    • Paper pulp molding machine for industrial packaging takes paper pulp as raw material, and absorbs the pulp into the mould under the help of vacuum. After a while, the machine makes products reach the specific thickness and dry wet ratio. After the processes of shifting mould and demoulding, the products are formed completely.
    • This machine can produce two kinds of products with different shapes and thickness at the same time.
    • We adopt the advanced PLC and touch screen to operate the machine. The pulp tanks and control cabinet are made of stainless steel material. All these parts make the machine good performance and long service life.



    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Semi-automatic reciprocating-single cylinder forming machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: CW030
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Monthes
    • After-Sale Service: Engineers available to service machinery overseas



    Competitive Advantages:

    • Energy saving and labor utilization
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association



    Applications:

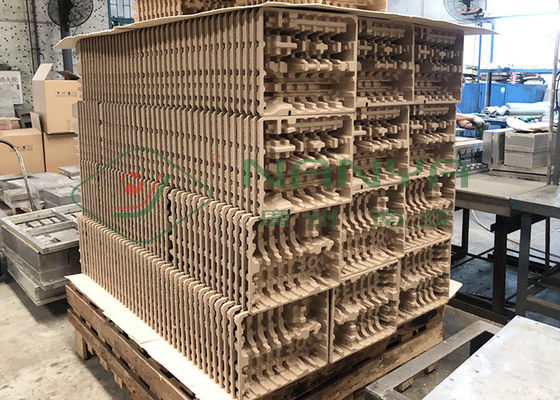

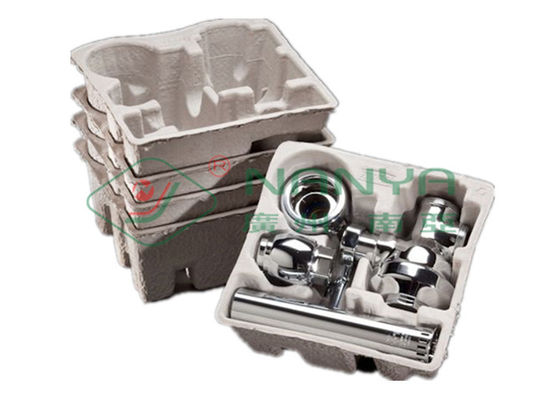

    High Quality Packages & Shockproof Packaging

    Mobile Phone Package, Camera Package, Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns

    Cup salver

    2, 4 cup salver

    Artware

    Mask, Christmas Balls, Easter Eggs , Boutiques…

    Agricultural products

    Fruit tray, seeding cup

    Disposable Medical Care Products

    Bedpan, Sick Pad, Female Urinal…

    Semi-automatic Reciprocating Single Cylinder Egg Tray Forming Equipment





    Business Terms:



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    30-60 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
