Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing

    • Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing
    • Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing
    • Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing
    • Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing
  • Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing

    Product Details:

    Place of Origin: Guangzhou, China(mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: CY201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: contact us and get the latest price
    Packaging Details: Export Standard Packing
    Delivery Time: Normally 45 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Name: Single Turnover Forming Machine Capacity: 80~100 Kgs/h
    Forming Type: Reciprocating Application: Inner Industrial Packing
    Automation: Fully-automatic Plate Size: 1000*660mm
    Weight: 3000KG Product Height: <=150mm

    Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing





    Main Technical Data



    Machine Type CY201
    Capacity 80~100kg/h
    Raw Material  waste paper / waste carton / newspaper / books...
    Forming Method Vacuum suction, turning type
    Mould Plate Size 1000*660mm
    Cycle Time 12~15s (for around 80grams). (For different product, the cycle may differ).
    Product Height <=150mm
    Application Inner Industrial Packing
    Motor Power

    3kw

    Machine weight 3000kg





    Detailed Product Description​:



    1. The machine is for pulp molding products.
    2. Output on the product collection table automatically.
    3. Computers monitor the entire process and manage the production.
    4. The pulp tank is made from SUS304 stainless steel, which is corrosion resistance.
    5. PLC and touch screen controlled.
    6. Driver of forming mould turning: hydraulic drive.
    7. Drive of transfer mould moving: cylinder.
    8. The main Pneumatic parts brand: SMC/ARK.
    9. The main electronic parts brand: Siemens.





    How This Machien Works:



    1. The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
    2. With the help of vacuum and compressored air, the products will be formed on the moulds.
    3. After forming, the up mould will move forward and drop on the dryer  automatically.
    4. The forming products don’t to be transferred by workers, save labors and high efficiency.
    5. This machine can be applied to manufacturing large quantity of pulp molding products, especially the high industrial packages items.





    Competitive Advantages:



    1. Quality Guarantee: Professional pulp molding machine making experience, we set up in 1994 and we have over 20 years' experience.
    2. Technical Guidance: overs engineering service is available. And we also support video conference support.
    3. Good Price: We are the factory and we make the machines. The price offered by us is quite honest and fair.
    4. Good Service: We will reply your enquiry and questions within 24 hours.

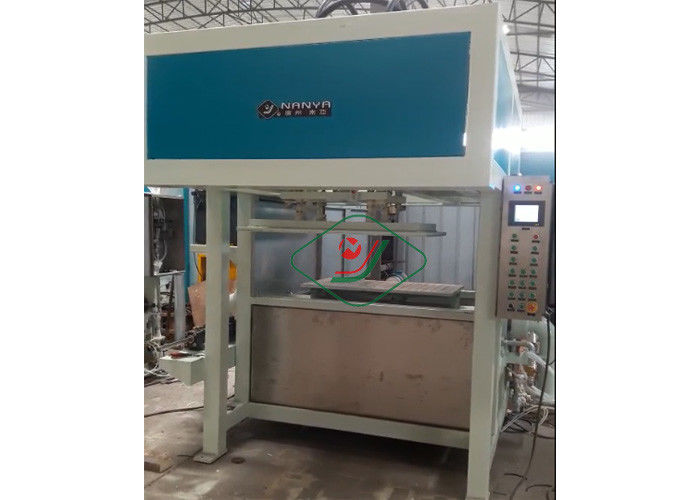

    Machine Picture:



    Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing





    Product Show: :



    1. Inner industrial packages, like for TV, fan, battery, air conditioner and other electrical items.
    2. Egg tray/egg box/fruit tray/ 2 cup holder/ 4 cup holder / seeding cup
    3. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

    The below is one type product made by this machine, by changing moulds, the machine can make different products.



    Single Turnover Reciprocating Tray Forming Machine for Pulp Molding Packing





    Business Terms:



    Payment Terms 30% down payment before production; 70% balance payment before delivery.
    Delivery Terms FOB Guangzhou, China. (CNF and CIF are also available.)
    Delivery Time 45 days
    Package Nude Packing
    Warranty 12 months
    Installation Overseas engineering service is available
    Quotation Validity 90 days after the offering date
    Aftersales Service We will send some spare parts for hot press use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation.
