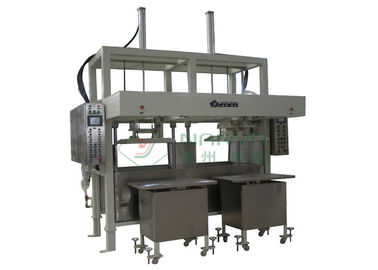

Double Plate Reciprocating Egg Tray Forming Machine , Pulp Moulding Machinery

    • Double Plate Reciprocating Egg Tray Forming Machine , Pulp Moulding Machinery
    • Double Plate Reciprocating Egg Tray Forming Machine , Pulp Moulding Machinery
    • Double Plate Reciprocating Egg Tray Forming Machine , Pulp Moulding Machinery
  • Double Plate Reciprocating Egg Tray Forming Machine , Pulp Moulding Machinery

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: CY010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30~60 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Automation: Full-automatic
    Forming Type: Vacuum Suction Standard: CE/TUV/SGS/ISO9001
    Applications: Egg Tray, Fruit Tray, Coffee-cup Tray, Medical Tray, Craft... Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
    After-sales Service Provided: Engineers Available To Service Overseas Warranty: 12 Months

    Automatic Double Plate Reciprocating Egg Tray/ Industrial Packages Forming Machine


    Specifications:


    Model Type

    CY010

    Product Name

    Automatic forming machine with double cylinders and double positions

     Nominal Voltage

    220V±10%

    Rated Frequency

    50Hz

    Absorbing Pulp Time

    0~30seconds (Adjustable)

    Dehydrating Time

    0~30seconds (Adjustable)

    Production Cycle

    12~60seconds(Adjustable)

    Vacuum

    -0.07 ~ -0.05MPa

    Input Air Pressure

    0.5~0.7MPa

    Power Consumption

    ≤1KW

    Cylinder Diameter

    100mm

    Cylinder Route

    650 mm

    Maximum Height

    760mm

    Mineral Height

    110mm

    The Height of the product

    ≤160mm

    Mould Plate Size

    800×600mm×2

    Machine Dimension

    2400×2500×3060mm

    For this type of machine, we have mould plate sizes of 500*700mm,600*700mm and 600*800mm for customer’s choice.



    Descriptions:

    • This is an automatic forming machine with double cylinders and double positions
    • Paper pulp molding machine for industrial packaging takes paper pulp as raw material, and absorbs the pulp into the mould under the help of vacuum. After a while, the machine make products reach the specific thickness and dry wet ratio. After the processes of shifting mould and demoulding, the products are formed completely.
    • Auto discharge machine transfers the formed and dehydrated products from forming machine to material receiving platform by the cylinder driving power. In this way, it needs less labor intensity, improves the productivity and enhances the handling safety.
    • We adopt the PLC control and touch screen in the machine, which make the machine operated safely, stably and easily.


    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Automatic forming machine with double cylinders and double positions
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: CY010
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas


    Competitive Advantages:

    • Fully automatic
    • Energy saving and labor utilization
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association


    Applications:


    High Quality Packages & Shockproof Packaging

    Mobile Phone Package, Camera Package, Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns

    Cup salver

    2, 4 cup salver

    Artware

    Mask, Christmas Balls, Easter Eggs , Boutiques…

    Agricultural products

    Fruit tray, seeding cup

    Disposable Medical Care Products

    Bedpan, Sick Pad, Female Urinal…

    Double Plate Reciprocating Egg Tray Forming Machine , Pulp Moulding Machinery


    Business Terms:


    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    30-60 days

    4

    Packages

    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
