Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages

Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages

    • Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages
    • Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages
    • Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages
  • Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: NANYA
    Certification: CE,TUV,SGS, ISO9001
    Model Number: HF-05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 60-120 Days
    Payment Terms: T/T, L/C, Cash, Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Raw Material: Virgin Pulp Fuel: Thermo Oil / Electricity
    Capacity: 150kg/h Forming Type: Thermoforming
    After-Sale Service: Engineers Overseas Available Automation: Fully Automatic
    Applications: For Fine Electronic Packages Warranty: 12 Months
    High Light:

    Pulp Molding Machines


    Moulded Pulp Machine

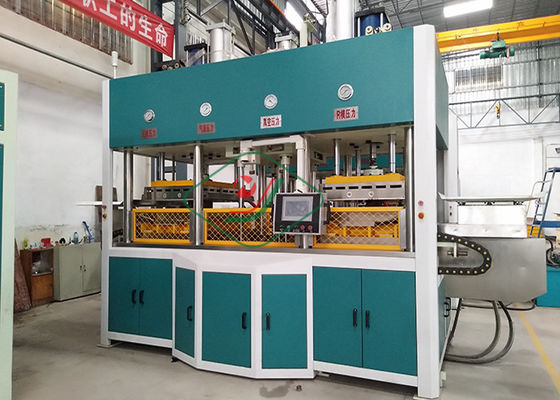

    Virgin Paper Molded Pulp Thermoforming Machine for Fine Electronic Packages




    HF- 05



    Main Machine Model & Quantity


    Working Station 1 Forming Station and 2 Hot Press Stations
    Mould Platen Size 1100*800mm

    Heating Method

    Thermo Heating

    Workshop Requirement

    600 m2

    Power Installation


    Material Consumption


    Water Consumption


    Workers Requirement

    6 persons

    Container Requirement for Shipment

    4 x 40’HQ

    Forming Type

    Vacuum suction, thermoforming

    Drying Method

    Drying in mould




    • The procedures of forming, drying and hot-press shaping are completed in one machine automatically.
    • The raw material i the virgin pulp, like the sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp, and so on, which are 100% biodegradable and environmental friendly.
    • This machine can apply to manufacture high quality pulp molding products, such as mobile phone box, make-up box, camera box, jewelry box and electronic products.
    • By changing moulds, the machines can make different shape of products.
    • The machine makes sure each surface of product is very smooth. Besides, this kind of machine supports some special design printing, like company’s logo or image.
    • Add some additives in the process to get water proofed or oil proofed performance.
    • Adopting the international famous brand controls, the machine performs smoothly and reliably.


    Product Information & Our Warranty:


    • Fully Automatic Production Line for High-grade Pulp Molding Products
    • Status: Brand new
    • Product Type: Pulp Moulding Equipment
    • Processing Type: Pulping System-forming system-vacuum system-air compress system-edge trimming system
    • Place of origin: Guangdong, China
    • Brand: NANYA
    • Model Type:HF-10
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months after installation
    • After-Sale Service: Engineers available to service machinery overseas


    Competitive Advantages:


    • Fully automatic
    • Energy saving and labor utilization
    • High quality production line machine for pulp molding products
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Set up in 1994 - Chinese famous trademark
    • 20 years experience in this field, Chinese reliable supplier, supported by the government and university.

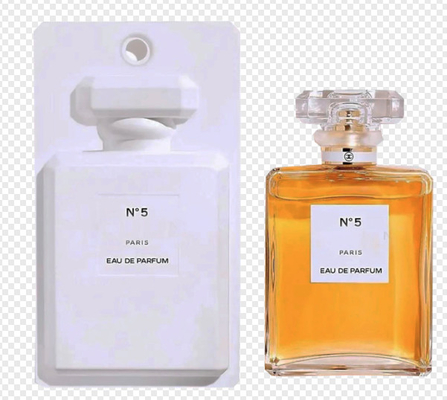

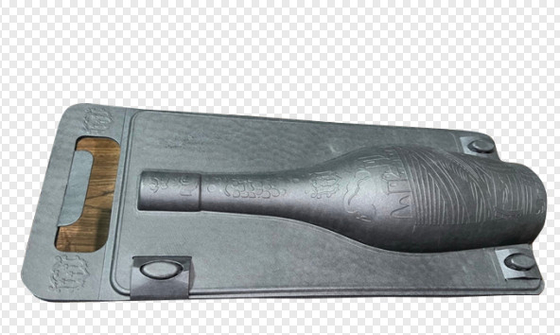

    Fine Electronic Packages

    Mobile phone box

    Make-up box

    Camera box

    Jewelry box

    Electronic product

    Paper tableware

    Gift box


    3D ceiling panels

    Virgin Paper Molded Pulp Machine Thermoforming Machine for Fine Electronic Packages 0



    Working theory:


    1. The track or worker carries the raw material into the conveyor ;
    2. The conveyor pours down the raw material into the hydrapulper mixing with certain mater.
    3. The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency. Next the pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably.
    4. Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wire mesh of the mold with the effect of the vacuum. So the wet products are shaped and dried on the working platform.



    YOUTUBE Video Link:

    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



    Business Terms:





    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight


    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).


    Delivery Time

    60-120 days



    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.



    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.



    12 months after installation


    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;


    Quotation Validity

    90 days after the offering date
