Molded Pulp Mobile Phone Package Machine For Industrial Inner Package

Molded Pulp Mobile Phone Package Machine For Industrial Inner Package

  • Molded Pulp Mobile Phone Package Machine For Industrial Inner Package
  • Molded Pulp Mobile Phone Package Machine For Industrial Inner Package
  • Molded Pulp Mobile Phone Package Machine For Industrial Inner Package
Molded Pulp Mobile Phone Package Machine For Industrial Inner Package
Product Details:
Place of Origin: China (mainland)
Brand Name: NANYA
Certification: CE,TUV,SGS, ISO9001
Model Number: HF10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 60-120 Days
Payment Terms: T/T, L/C, Cash, Western Union
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Processing Material: Sugarcane Pulp/bamboo Pulp/wood Pulp Fuel: Thermal Oil Or Electric
Capacity: 300kg/h Forming Type: Thermoforming Drying
After-Sale Service: Engineers Overseas Available Automation: Fully Automatic
Applications: High Level Industrial Package Warranty: 12 Months
Machine: Molded Pulp Machine Palten Size: 1100*800mm / 800*650mm
High Light:

300kg/H Molded Pulp Machine

,

1000m2 Molded Pulp Machine

Molded Pulp Mobile Phone Package Machine For Industrial Inner Package


Descriptions:

  • The procedures of forming, drying and hot-press shaping are completed in one machine automatically.
  • The raw material i the virgin pulp, like the sugarcane bagasse pulp, bamboo pulp, wood pulp, straw pulp, and so on, which are 100% biodegradable and environmental friendly.
  • This machine can apply to manufacture high quality pulp molding products, such as mobile phone box, make-up box, camera box, jewelry box and electronic products.
  • By changing moulds, the machines can make different shape of products.
  • The machine makes sure each surface of product is very smooth. Besides, this kind of machine supports some special design printing, like company’s logo or image.
  • Add some additives in the process to get water proofed or oil proofed performance.
  • Adopting the international famous brand controls, the machine performs smoothly and reliably.



Specifications:

Model

HF-10

Capacity

300kg/h

Main Machine Model & Quantity

YC011—10sets

Working Station 1 Forming Station and 2 Hot Press Stations
Mould Platen Size 1100*800mm / 800*650mm

Heating Method

Thermal Oil or Electric

Workshop Requirement

1000 m2

Power Installation

400kw

Material Consumption

240~280kg/h

Water Consumption

1000~1600kg/h

Workers Requirement

8 persons

Container Requirement for Shipment

8 x 40’HQ

Forming Type

Vacuum suction, thermoforming

Drying Method

Drying in mould

The above specification is for reference only, for different capacity, we'll provide customized solution accordingly to specific requirements.


Product Information & Our Warranty:

  • Fully Automatic Production Line for High-grade Pulp Molding Products
  • Status: Brand new
  • Product Type: Pulp Moulding Equipment
  • Processing Type: Pulping System-forming system-vacuum system-air compress system-edge trimming system
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type:HF-10
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months after installation
  • After-Sale Service: Engineers available to service machinery overseas

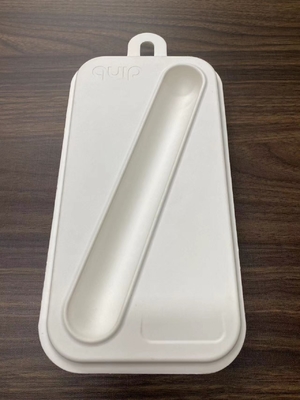

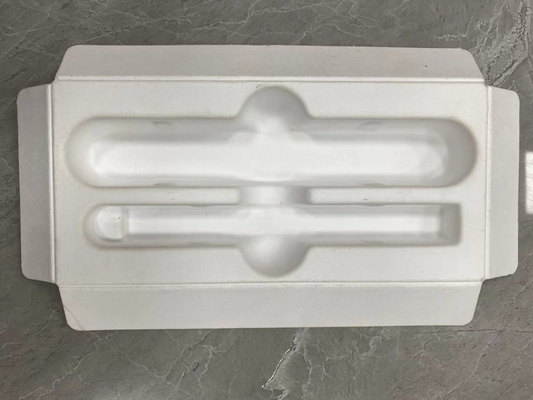

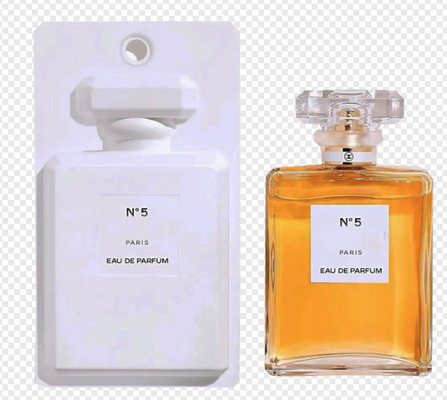

Applications:

Inner Industrial Package for

Mobile phone box

Make-up box

Camera box

Jewelry box

Electronic product

Paper tableware

Gift box

Crafts

3D ceiling panels

Molded Pulp Mobile Phone Package Machine For Industrial Inner Package 0





Working theory:

  1. The track or worker carries the raw material into the conveyor ;
  2. The conveyor pours down the raw material into the hydrapulper mixing with certain mater.
  3. The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency. Next the pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably.
  4. Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wire mesh of the mold with the effect of the vacuum. So the wet products are shaped and dried on the working platform.



YOUTUBE Video Link:



http://ww.youtube.com/watch?v=SskObphnQZo&t=13s
For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.



Why Choose NANYA:



- Established in 1994, pioneer and leader in pulp molding industry

- Professional in all kind of pulp molding machine, having over 100 model machines for choice

- Offer whole line of machine, also design service

- Offer Installation service/ Training service

- Considerate after sales service, reply in 24 hours



Business Terms:

NO.

ITEM

DESCRIPTION

1

Payment Terms

T/T, L/C at sight or cash or Western Union

2

Delivery Terms

FOB Guangzhou, China.
( C&F or CIF are also available).

3

Delivery Time

60-120 days

4

Packages

Packages suitable for ocean transport.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

6

Warranty

12 months after installation

7

After sales service

Free spare parts, video technical support, installation guidance, commissioning​
