Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray

Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray

    • Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray
    • Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray
    • Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray
  • Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray

    Product Details:

    Place of Origin: Guangzhou China
    Brand Name: NANYA
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ZC026

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 25 days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Hot Pressing Machinery Automation: Semi Automatic
    Working Cycle: 6~10S Working Pressure: 5Tons
    Applications: Egg Box, Cup-holder, Medical Tray, Craftworks... Dimension: 1150×900×2800mm
    High Light:

    paper pulp molding machinery

    ,

    paper pulp moulding machine

    Semi Automatic Hot Pressing Machinery for Paper Egg Box / Egg Tray with 5 Tons





    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: Hot Pressing Machinery
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Voltage: 220V - 440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas





    Specifications:



    Machine Model ZC026
    Machine Name Hot Pressing Machinery
    Automation  Semi Automatic
    Mould Plate Size 650*450mm
    Working Pressure 5tons
    Gas-liquid Pressure Cylinder 125*400mm
    Electricity Heating 7.6kw
    Working Temperature 160~190℃
    Working Cycle 6~10s
    Compressed Air Required 0.5~0.6Mpa, 0.6m3/min
    Physical Dimension 1150×900×2800mm
    Weight 800kg
    Other special specification can be customized according to clients’ requirement.





    Descriptions:

    • Hot-press machine uses high temperature (160~190℃) and high press (5tons) to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat;
    • The working temperature is 160~190℃, but it can be adjustable(after setting the temperature, the constant temperature will be automatically regulated);
    • With infrared security devices;
    • With security device of prevent top mould fall;
    • With function of top mould and bottom mould blowing

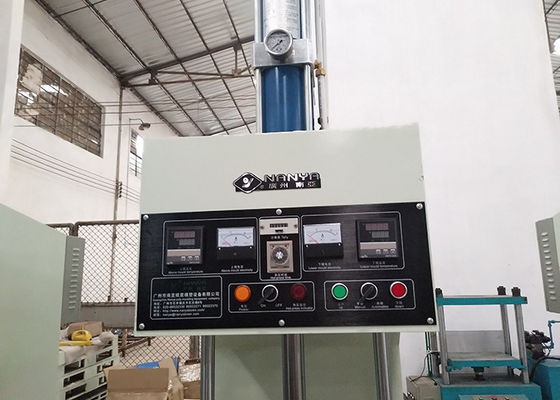

    Machine Glance:

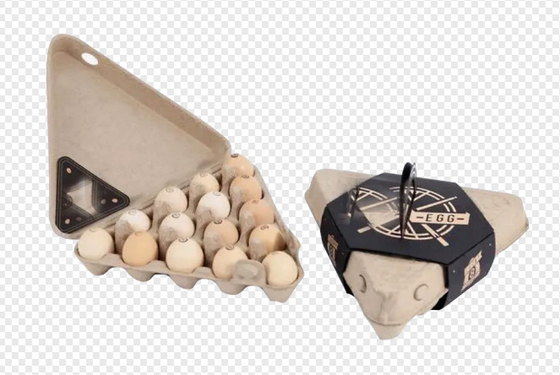

    Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray 0





    YOUTUBE Link:



    https://www.youtube.com/watch?v=llfE-H9eEtY





    Applications:



    Egg tray

    20,30,40packed egg tray…  quail egg tray

    Egg carton

    6, 10,12,15,18,24 packed egg carton…

    Agricultural products

    Fruit tray, seeding cup

    Cup salver

    2, 4 cup salver

    Disposable Medical Care Products

    Bedpan, sick pad, female urinal…

    packages

    Shoe tree, industrial package…

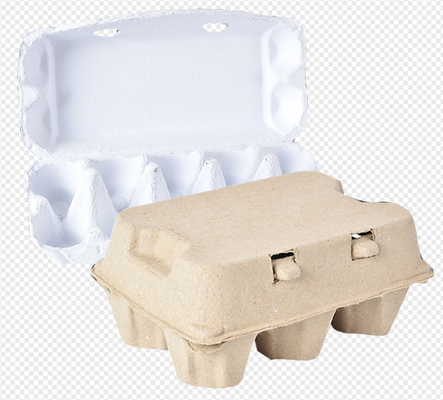

    Semi Automatic Hot Press Paper Pulp Molding Machine For Paper Egg Box / Egg Tray 1





    Competitive Advantages:

    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university
    • The standing director of Chinese packaging association





    Business Terms



    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,

    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.

    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    25 days

    4

    Packages

    Packages suitable for ocean transport.

    The small parts are packaged by wooden boxes.

    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

    Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date
