Automatic Paper Pulp Molding Hot Press Machine Applied Simens Servo Motor with 20 Tons

Name: Automatic Paper Pulp Molding Hot Press Machine Applied Simens Servo Motor with 20 Tons
Brand: Nanya
SKU: ZC140
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (139 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Nanya
Certification:	CE/TUV/SGS/ISO9001
Model Number:	ZC140

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	30~60 days
Payment Terms:	T/T or western Union or L/C
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Machine	Capacity:	20 Tons
Standard:	CE/TUV/SGS/ISO9001	Applications:	High Quality Industrial Package, Egg Carton, Coffee-cup Tray, Medical Tray, Craft...
After-sales Service Provided:	Engineers Available To Service Overseas	Mould Plate Size:	850×500mm
Warranty:	12 Months	Motor Application:	Simens Servo Motor
High Light:	Tray Forming Machinery , Tray Forming Equipment

Automatic Paper Pulp Molding Hot Press Machine Applied Simens Servo Motor with 20 Tons

Specifications:

Model Type	ZC140
Product Name	Automatic hot- press machine
Working Pressure	20tons
Nominal Voltage	220V±10%
Power Consumption	12kw
Hot Pressing Temperature	15℃~180℃ (adjustable)
Working Cycle	15~60seconds (Adjustable)
Structure	Four- guide pillar
Lifting cylinder in upper die	120×250mm
Mould Plate size	850×500m
Air Pressure	0.5 ～0.6MPa

Descriptions:

This is an automatic hot- press machine.
Hot-press machine utilizes the high temperature and high press to fix the shape of the dried paper tray products so that the appearance of the products will be smoother and more beautifully.
This type of machine applies PLC control and touch screen operate and Simens servo nmotor. so its electrical control system is quite stable and its aerodynamic performance is satisfied.
The new hot-press machine takes cylinder supported by air pressure and hydraulic pressure as its motive force. So this machine has high efficiency, high pressure and saves electricity as well.
The upper and lower templates have independent vacuum/ blowing function, and each template is
divided into three independent chambersThe products are automatically blow down to the transfer
belt, stacking and counting. When reaching the numbers previously set, the finished products are
sent out by belt.

Production Information and Our Warranty:

Status: Brand new
Product Type: Automatic hot- press machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: ZC140
Voltage: 220V-440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Competitive Advantages:

Energy saving and labor utilization
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
The standing director of Chinese packaging association

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray

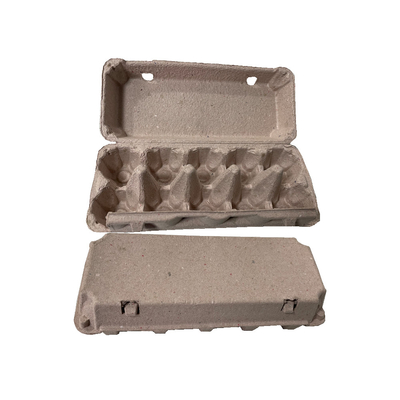

Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…
Food container	Dishware, tableware, lunch box, bowl…
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
Disposable Medical Care Products	Bedpan, sick pad, female urinal…

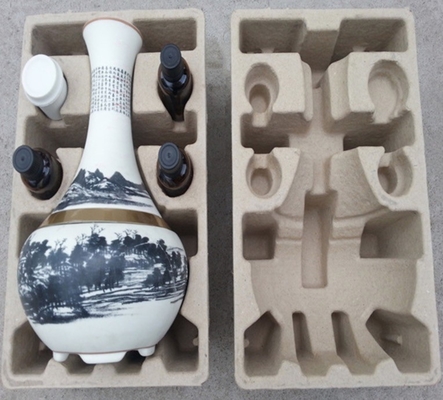

High quality packages	Mobile phone package, camera package,

Competitive Advantages:

Energy saving and labor utilization
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
The standing director of Chinese packaging association

Business Terms:

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	30-60 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineer to instruct buyer for installation, test-run and training. All the charges of air ticket, VISA , accommodation and food of the engineer should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
