Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V

Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V

  • Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V
  • Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V
  • Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V
Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V
Product Details:
Place of Origin: CHINA
Brand Name: NANYA
Certification: CE/TUV/SGS/ISO9001
Model Number: ER6000-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 120 Days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 6000Pcs / H
Drying Type: Hot Air Dry Raw Material: Waste Paper / Waste Carton / Newspaper
Forming Type: Vacuum Suction After Service: Engineers Available To Service Overseas
Voltage: 220 V - 450 V Certificate: CE/TUV/SGS/ISO9001
Application: Egg Tray, Egg Carton, Fruit Tray, Medical Tray
High Light:

Egg Tray Forming Machine

,

Egg Tray Production Line

Eco Moulded Pulp Paper Egg Tray / Fruit Making Machinery with 6 Layers Dryer





Specifications:



Model Type

ER6000-B

Capacity

6000 pcs/hour

Workshop Requirement

600 m2

Electricity Consumption

~230 kw

Electricity Installed

350 kw

Material Consumption

380~420 kg/h

Water Consumption

1.5~2.2 kg/h

Worker Requirement

5~6 persons

Container Requirement for Shipment

9 x 40 HQ

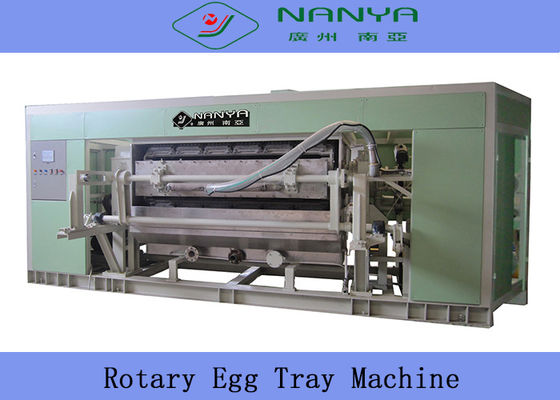

Forming Machine (Rotary Type)

Rotary type with 8 plates. Each for 6 pcs/time

Drying Line

22x3.4x4m  6-Layers

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.





Fuel Consumption   (One Item Selectable)



Natural gas

100~110 m3/h

LPG

36~40 m3/h

Diesel

90~98 kg/h

Heavy Oil

92~100 kg/h

Steam

1.8~2.0 ton/h

Wood

360~400 kg/h

Coal

240~270 kg/h





Descriptions:

  • It’s a fully automatic egg tray production line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
  • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
  • Products are produced automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.





Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: ER6000-B
  • Voltage: 220V - 450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas





Applications:



Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Eco Moulded Pulp Paper Egg Tray Machine with 6 Layers Dryer 220 V - 450 V 0













Youtube Video Link Showing the Whole Process:



https://www.youtube.com/watch?v=vG2VqoRdFgE





Competitive Advantages:

  • Fully automatic production line
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and universities.
  • The standing director of Chinese packaging association



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

120 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD80/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
