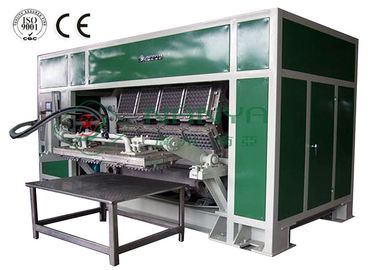

Stable Full Automatic Waste Newspaper Egg Tray Machine for Egg Box Forming

Product Details:

Place of Origin:	CHINA
Brand Name:	NANYA
Certification:	CE/TUV/SGS/ISO9001
Model Number:	ER4000-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	Normally 100 days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	20 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Machine	Capacity:	4000Pcs / H
Raw Material:	Waste Paper / Waste Carton / Newspaper / White Paper	Forming Type:	Vacuum Suction
After Service Provided:	Engineers Available To Service Overseas	Voltage:	220 V - 450 V
Certificate:	CE/TUV/SGS/ISO9001	Applications:	Egg Tray, Egg Carton, Medical Tray, Fruit Tray
Highlight:	Egg Tray Forming Machine , Egg Tray Production Line , Full Auto Egg Box Forming Machine

Stable Full Automatic Waste Newspaper Egg Carton / Egg Box Forming Machinery

Specifications:

Model Type	ER4000-A
Capacity	4000 pcs/hour
Workshop Requirement	900 m²
Electricity Consumption	~170 kw
Electricity Installed	250 kw
Raw Material	Waste Paper / Waste Carton / Newspaper / White Paper
Material Consumption	250~280 kg/h
Water Consumption	1.0~1.5 ton/h
Worker Requirement	4~5 persons
Container Requirement for Shipment	8 x 40 HQ
Forming Machine (Rotary Type)	Rotary type with 8 plates. Each for 4 pcs / time
Drying Line	42x1.6x2.4 m 1-Layer
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.

Fuel Consumption (One Item Selectable)

Natural gas	80~90 m³/h
LPG	28~32 m³/h
Diesel	68~76 kg/h
Heavy Oil	70~80 kg/h
Steam	1.4~1.6 ton/h
Wood	280~320 kg/h
Coal	180~ 210 kg/h

Descriptions:

It’s a fully automatic egg tray production line
Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
Products come out automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.

Production Information and Our Warranty:

Status: Brand New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong, China
Brand: NANYA
Model Type: ER4000-A
Voltage: 220V - 450V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Applications:

Egg tray	20,30,40packed egg tray… quail egg tray
Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup
Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…

Competitive Advantages:

Fully automatic production line
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and universities.
The standing director of Chinese packaging association

Youtube Video Link for Better Understanding:

https://www.youtube.com/watch?v=JCu3xNpnCsM

Business Terms:

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	100 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
