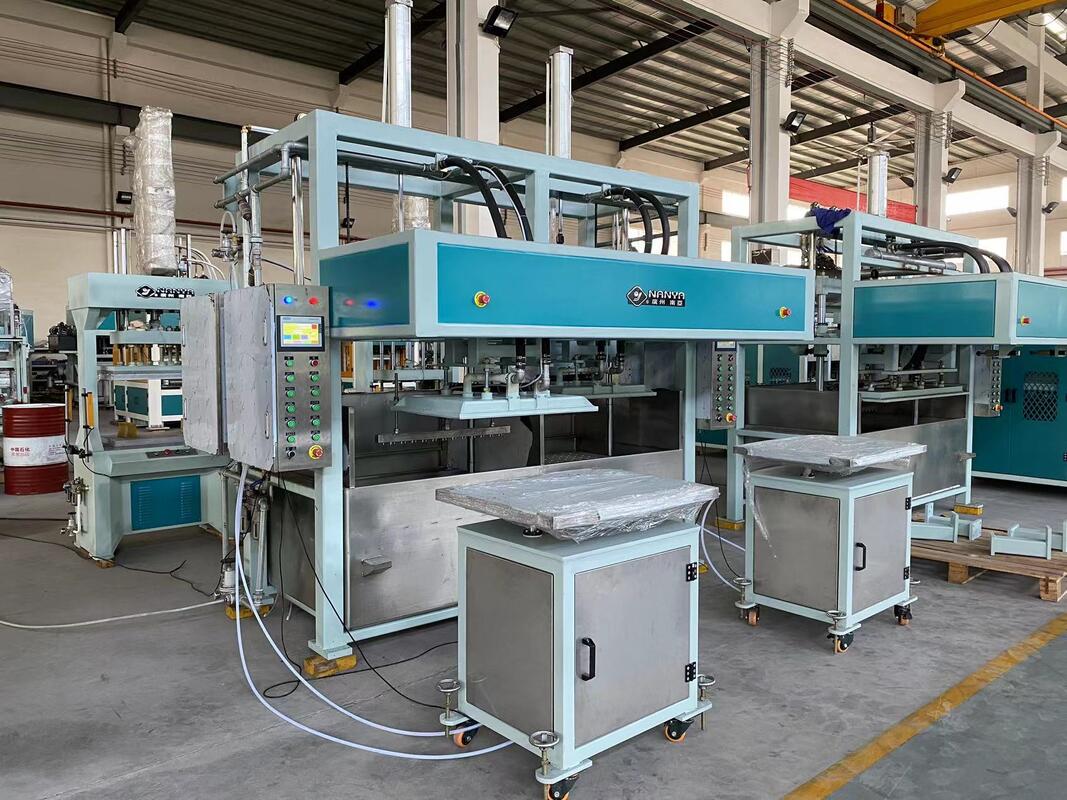

High Efficiency Pulp Molding Machinery for Industrial package

Product Details:

Place of Origin:	China
Brand Name:	Nanya
Certification:	CE/TUV/SGS/ISO9001
Model Number:	CY010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	45-75 Days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	20 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Machine	Capacity:	100-150kgs / H
Processing Material:	Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp	Forming Type:	Vacuum Suction
After-sales Service Provided:	Engineers Available To Service Overseas	Standard:	CE/TUV/SGS/ISO9001
Applicationa:	Industrial Package	Voltage:	220 V - 450 V
Highlight:	Pulp Moulding Machine , Egg Tray Making Machinery

High Efficiency Pulp Molding Machinery for Cup Holder

Specifications:

Model Type	CY010
Capacity	100-150kgs/h
Hydrapulper	1.5m³
Forming Machine	Plate Size 800600mm2
Workshop Requirement	Length≥30m Width≥15m
Power installation	115kw
Power consumption	70-80kw
1. For different capacity, customized allocation can be made according to the clients’ requirement. 2. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.

The Items Must Be Prepared before Installation

1	Workshop, foundation of the machine, Drain ditch in the workshop.
2	Raw Material supply system; include Pools or tanks for pulp making system (3 x 4M³).
3	Power supply, water supply.
4	Tools and consumable materials needed during the installation.
5	The quotation does not including drying machine. The customer should prepare halftones and trolleys for air-cure the product.

Descriptions:

This is a semi-automatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
The production line can be applied to making coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
Electrical control parts, Pneumatic control parts.
Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
The formed products can be dried by drying product line, drying house or under the sunshine directly.
There are diversified devices allocations for different specifications.

Production Information and Our Warranty:

Status: Brand New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong, China
Brand: NANYA
Model Type: CY010
Voltage: 220V - 450V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Applications:

Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…

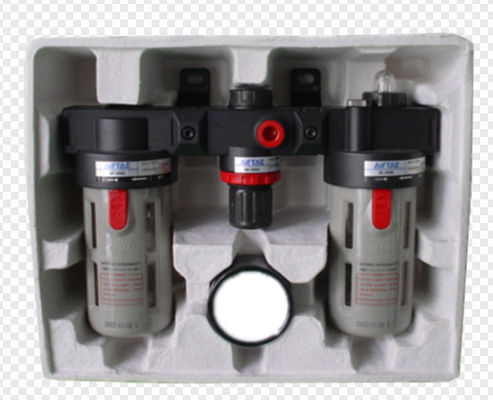

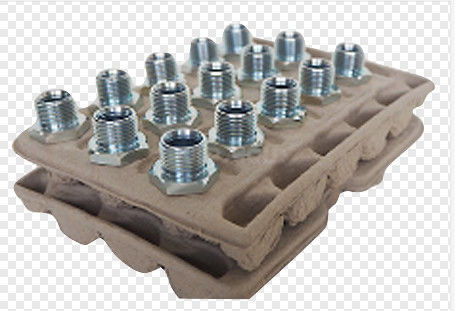

packages	Shoe tree, industrial package…

Competitive Advantages:

Semi-antomatic production line
Servo motor is applied
Energy saving and labor utilization
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
30 years experience in this field, Chinese reliable supplier, supported by the government and university
The standing director of Chinese packaging association

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	45-75 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD150/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
