Pulp Molded Insert Shock Proof 450V Tray Molding Machine

Pulp Molded Insert Shock Proof 450V Tray Molding Machine

  • Pulp Molded Insert Shock Proof 450V Tray Molding Machine
  • Pulp Molded Insert Shock Proof 450V Tray Molding Machine
  • Pulp Molded Insert Shock Proof 450V Tray Molding Machine
Pulp Molded Insert Shock Proof 450V Tray Molding Machine
Product Details:
Place of Origin: Guangzhou, China(mainland)
Brand Name: NANYA
Certification: CE
Model Number: CY010
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: contact us and get the latest price
Packaging Details: International Standard Shipping Package
Delivery Time: Normally 90 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50sets/month
Contact Now
Detailed Product Description
Product Name: Pulp Tray Moldind Machine Forming Type: Reciprocating Vacuum Suction
Application: Insert Shock-Proof Package Raw Material: Recycle Paper Pulp
Automation: Drop On Platform Automatically Speed: 20~25 Seconds/cycle
Dryer: With Single Layer Or Dry With Sunshine Service: Installation,Training,Technical Support
Voltage: 220-450V Marketing Type: New Product 2020
High Light:

150kg/hour Tray Molding Machine

,

450V Tray Molding Machine

,

160mm Pulp Tray Equipment

Pulp Molded Insert Shock-Proof Packaging Tray Molding Machinery



Technical Data


 Product Name   Industrial Tray Making Machine
 Machine Type  CY010
 Raw Material   Recycle paper
 Forming Method  Reciprocating Moulding
 Mould Plate Size  2400*800mm
 Capacity  120~150kg/hour/forming machine
 Product Height  <=160mm
 Application  Electronic Package Pulp Tray
 Dryer type  Single layer dryer
 Fuel  type for the dryer  Natural gas/ diesel/ LPG/steam/coal...

The above specification is for reference only, for different capacity, we'll provide customized solution based on specific requirements.



Introduction


1. This pulp tray production line is for making big size industrial trays or high capacity pulp trays.

2. The mold platen size is 800*600mm* 2 working stations, match a single layer dryer or dry under sunshine. The capacity of each forming machine is around 120~150kg/hour.It can mactch multiple forming machines in the production line.

3. Forming machine control: PLC and touch screen controlled.

4. The fuel for the dryer: Natural gas/ diesel/ LPG/steam/coal...

5. The main electronic parts brand: Siemens; The main Pneumatic parts brand: FESTO or SMC



How This Production Line Works


Pulping System The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine.
Forming System With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically.
Drying System Metal drying line / sunshine drying / drying room
Hot press system After dried, the products will be hot pressed to get a better shape and smoother surface.

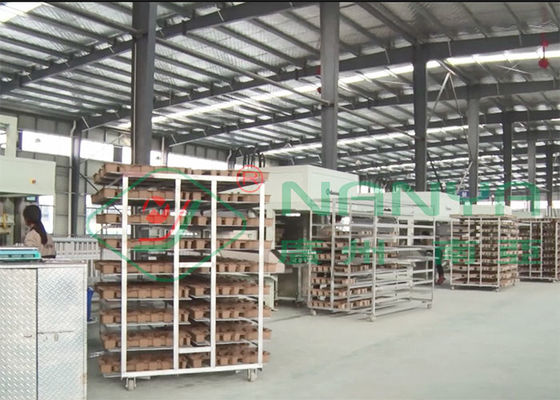

Forming Machine Picture


Pulp Molded Insert Shock Proof 450V Tray Molding Machine 0



YOUTUBE Video Link


https://youtu.be/aaWY0Lwd790

https://youtu.be/x_p4tUEdLhE

For more videos, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.

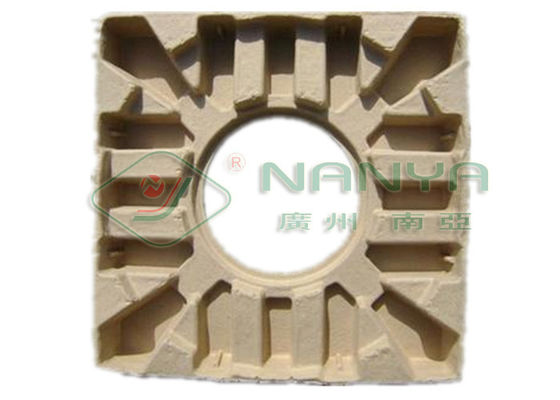

Finished Products


1. Electronic Package Pulp Tray, like for TV, cooker, battery, air conditioner, car parts and other electrical items.

2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup

Pulp Molded Insert Shock Proof 450V Tray Molding Machine 1

Business Terms


 MOQ One set for our own existing designs.
 Model Choice According to your requirement (like size and capacity), our engineer will help to make the model selection accordingly. And we also can provide the professional plant layout design for customers.
 Payment Terms T/T, L/C, D/P, D/A, Western Union, Money Gram, etc.
 Delivery Time Around 90 working days from the payment date.
 Assembly &commissioning We will assign our engineer for assembly and commissioning.



NANYA Advantages


1. Provide the professional technical support for designing plant layout and recommending suitable machine.

2. Provide the turn-key production line, installing, commissioning and staff training.

3. Provide one year warranty and lifetime maintenance.

4. Provide one year spare parts free, and a large stock of components and parts for emergency requirement.

5. Provide 24hours/7days online service.
