Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System

Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System

  • Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System
  • Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System
  • Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System
  • Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System
Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: EW600-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45 - 75 Days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 600Pcs / H
Drying Type: Hot Air Dry Processing Material: Waste Paper / Waste Carton / Newspaper / White Paper
Forming Type: Vacuum Suction After-sales Service Provided: Engineers Available To Service Overseas
Voltage: 220 V - 450 V Standard: CE/TUV/SGS/ISO9001
High Light:

Egg Carton Making Machine

,

Egg Carton Machinery

Eco- friendly Full Automatic Egg Tray / Egg Box / Fruit Tray Molded Pulp Equipment 600 Pcs / H

Specifications:



Model Type

EW600-A

Capacity

600 pcs/hour

Workshop Requirement

250 m2

Electricity Consumption

~35 kw

Electricity Installed

50 kw

Raw Material  Waste Paper/Waste Carton/Newspaper/White Paper

Material Consumption

40~70 kg/h

Water Consumption

150~180 kg/h

Worker Requirement

3~4 persons

Container Requirement for Shipment

2 x 40 HQ

Forming Machine (Reciprocating Type)

plate size 1200*400 mm 3 pcs/time

Drying Line

16x2.2x2.4m  1-Layer

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant .


Fuel Consumption   (One Item Selectable)



Natural Gas

14~16 m3/h

LPG

5~6 m3/h

Diesel

12~14 kg/h

Heavy Oil

13~15 kg/h

Steam

0.3~0.35 ton/h

Wood

50~60 kg/h

Coal

35~40 kg/h


Descriptions:

  • It’s a Fully Automatic Egg Tray Production Line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
  • This type of production line is constituted by a hydrapulper system, a Reciprocating type forming machine, a single-layer drying line, and corollary equipments.
  • Products are produced automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



Working Theory:

  • The track or worker carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor ;
  • The conveyor pours down the raw material into the hydrapulper mixing with certain water;
  • The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
  • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum.  Then the wet products are shaped on the working platform;
  • Finally, the shaped products are sent to the dryer line automatically. After one round or two, the products are completely dry.



Schematic Diagram:

Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System 0


Production Information and Our Warranty:

  • Status: Brand New
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: EW600-A
  • Voltage: 220V-450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas


Applications:



Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

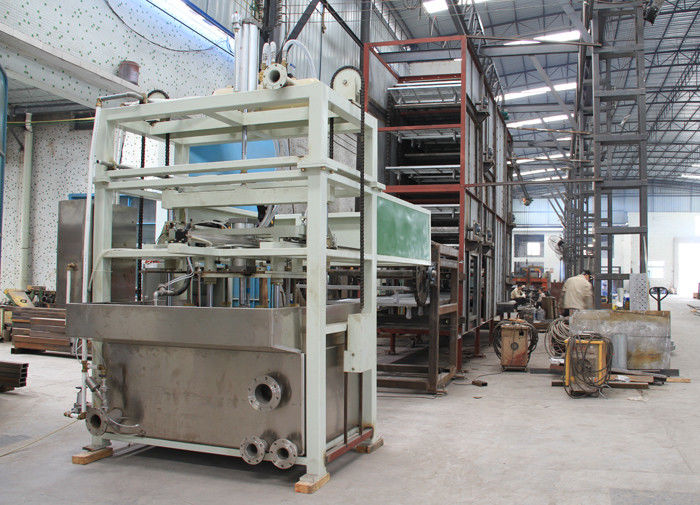

Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System 1
Eco - Friendly Egg Carton Making Machine Constituted By Hydrapulper System 2



Competitive Advantages:

  • Competitive Advantage:

  • Fully antomatic production line with high degree automation costs less labors;
  • TUV Supplier Assessment Certificate;SGS Supplier Assessment Certificate;CE Certificate
  •  Main accessories are adopted the international renowned brands. PLC. touch screen and servo motor of our machines are adopted Siemens brand;  relays are form Omron and Schneider brand; switching devices are from LG brand; pneumatic components are from Germany Festo Brand Japan SMC brand or South Korea ARK Brand;
  • We have the advanced testing methods ,test and inspect the new machine and make sure it reaches the standard requirement before delivery;
  • Nanya is an integrated company. Apart from working on pulp molding machines, meanwhile, we also study and develop production technology, which guarantees our customers the production technology support and service;
  • Technicians are available to be sent to install machine and train the workers for our customer. We have professional colleagues responsible for the after-sales service to reach customers’ expected capacity and minimize our their operating cost.


Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
