High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery

High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery

    • High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery
    • High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery
    • High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery
  • High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: NANYA
    Certification: CE
    Model Number: EF2000-AH

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 60 Days
    Payment Terms: T/T, L/C, Cash or Western Union, MoneyGram
    Supply Ability: 100 Sets Per Year
    Contact Now
    Detailed Product Description
    Product Name: Egg Carton Making Machine Capacity: High Capacity
    Raw Material: Waste Paper / Waste Carton / Newspaper Drying Type: With 6 Layers Dryer
    Installation: Engineers Available To Service Overseas Warranty: 12 Months
    Color: Green(can Be Customized) Other Name: Egg Carton Maker
    High Light:

    Egg Carton Making Machine

    ,

    Egg Carton Machinery

    High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery





    Egg Carton Making Machine Description



    1. Egg carton forming machine uses the waste paper as raw material, absorbs paper pulp, and shapes different products on the moulds by vacuum. The wet products will be transferred to dryer automatically.

    2. By changing moulds, the same machines can make different products, like egg carton, egg tray, fruit tray, industrial package items and etc.

    3. This production line consists of a pulping system, a double rotary forming machine, a single layer drying line, hot press system, vacuum system, air compressor system and auxiliary equipments.

    4. Our machinery adopts high quality electronic devices and pneumatic components, high performance and long service life





    Egg Carton Making Machine Specifications





     Model type  EF2000-AH Egg Carton Making Machine
     Brand  NANYA
     Output per hour  1800~2200Pcs / H (for 12 cell egg carton)
     Mould Quantity  8 sets forming moulds + 4 sets transfer moulds
     Forming Way  Double Rotary Vacuum Suction Forming
     Electricity consumption  ~100kw/h (~160kw for installed)
     Raw Material consumption  80~120kg/h
     Water consumption  400~600kg/h
     Operator required  3~4 persons/shi
     Drying  with single layers metal dryer
     Vacuum Pump  37kw
     Pulper Power  22kw





    Egg Carton Making Machine Main Advantages



    1. Different capacity  production for choice;

    2. Easy to install and operate;

    3. Rugged construction;

    4. Heat resistance;

    5. Competitive price;

    6. Green: No waste paper emission;





    YOUTUBE Video Links





    Double Rotary Egg Carton Machine  https://youtu.be/nEtQndYddGU
    For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.





    Applications





     Agricultral Items  Fruit trays/cup trays/seeding cups/agricultral cups/shoe tree
     Innner industrial packages  for TV, fan, battery, air conditioner and other electrical items
    Disposable Medical Care Products  Bedpan, kidney, sick pad, urinal pan…

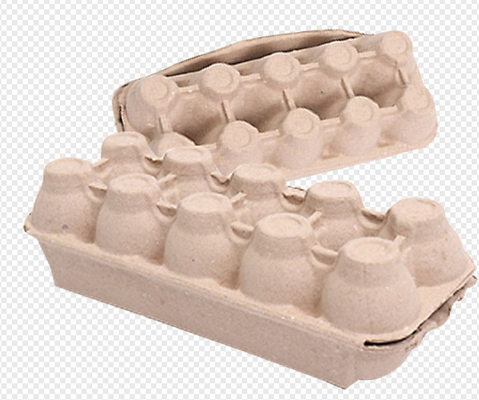

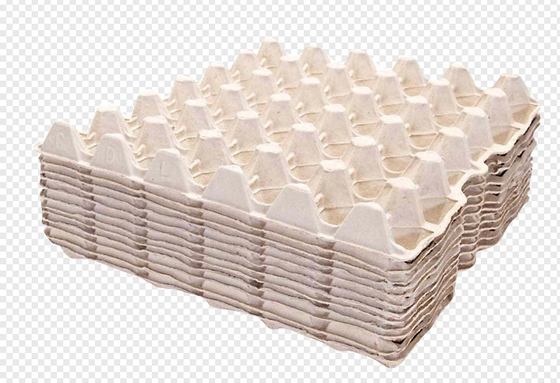

     The below is one type of egg carton made by our machine, by changing moulds, the machine can make different products.

     High Capacity Egg Carton Making Machine / Automatic Egg Tray Machinery 0





    FAQ



    Q: What does your factory produce?

    A: We make all kinds of pulp molding machine including egg tray machine, egg box machine, fruit tray machine, bottle tray machine, paper shoe stretcher machine, seedling tray machine, industrial inner package machine etc..



    Q: What about your standard delivery date?

    A; for different capacity, the delivery date is different, for the model type, the delivery date is 60 days.



    Q: Do you have guarantee on your products?

    A: We guarantee 12 months for the maintenance and repair of the forming machine.
