600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use

600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use

  • 600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use
  • 600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use
  • 600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use
600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: ES600-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45~75 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 600 Pcs / H
Processing Material: Waste Paper / Waste Carton / Newspaper / White Paper Forming Type: Vacuum Suction
After-sales Service Provided: Engineers Available To Service Overseas Standard: CE/TUV/SGS/ISO9001
Applicationa: Egg Tray, Egg Carton, Fruit Tray, Medical Tray Automation: Semi-automatic
High Light:

Pulp Moulding Machine

,

Egg Tray Making Machinery

Small Egg Tray Making Machine / Pulp Paper Moulded Egg Carton Production Line  600pcs/h ​

Specifications:



Model Type

ES600-C

Capacity

600pcs/h

Raw Material Waste Paper/Waste Carton/Newspaper/White Paper
Drying Method  Sun Drying

Hydrapulper

0.5m3, 5.5kw

Forming Machine

Plate Size 1200*400mm  3pcs/unit

Workshop Requirement

Workshop≥120m2  Drying Yard≥120m2

Power Requirement

40kw

1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g.
2. For different capacity, customized allocation can be made according to the clients’ requirement i
3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.


The Items Must Be Prepared before Installation


1

Workshop, foundation of the machine, Drain ditch in the workshop.

2

Raw Material supply system; include Pools or tanks for pulp making system (3 x 4M3).

3

Power supply, water supply.

4

Tools and consumable materials needed during the installation.

5

The quotation does not including drying machine.

The customer should prepare halftones and trolleys for air-cure the product.


Descriptions:

  • This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
  • The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
  • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
  • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
  • There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.



Working theory:

  • The worker or track carries the raw material, such as waste paper, waste carton or used newspaper into the conveyor ;
  • The conveyor pours down the raw material into the hydrapulper mixing with certain water;
  • The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
  • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum.  Then the wet products are shaped on the working platform;
  • Finally, worker puts out the shaped products, takes them to the drying yard and makes them drying under the shine.



Schematic Diagram:

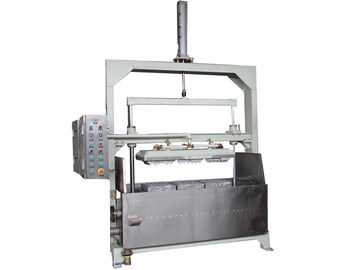

600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use 0



Production Information and Our Warranty:

  • Status: Brand New
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: ES600-C
  • Voltage: 220V - 450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas


Applications:



Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

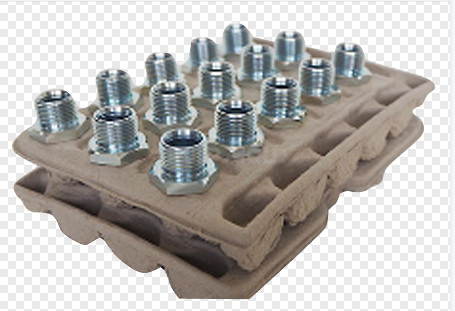

packages

Shoe tree, industrial package…

600pcs / H Pulp Moulding Machine Fruit Tray / Medical Tray Use 1




Competitive Advantages:

  • TUV Supplier Assessment Certificate;SGS Supplier Assessment Certificate;CE Certificate
  •  Main accessories are adopted the international renowned brands. PLC. touch screen and servo motor of our machines are adopted Siemens brand;  relays are form Omron and Schneider brand; switching devices are from LG brand; pneumatic components are from Germany Festo Brand Japan SMC brand or South Korea ARK Brand;
  • We have the advanced testing methods ,test and inspect the new machine and make sure it reaches the standard requirement before delivery;
  • Nanya is an integrated company. Apart from working on pulp molding machines, meanwhile, we also study and develop production technology, which guarantees our customers the production technology support and service;
  • Technicians are available to be sent to install machine and train the workers for our customer. We have professional colleagues responsible for the after-sales service to reach customers’ expected capacity and minimize our their operating cost.


Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
