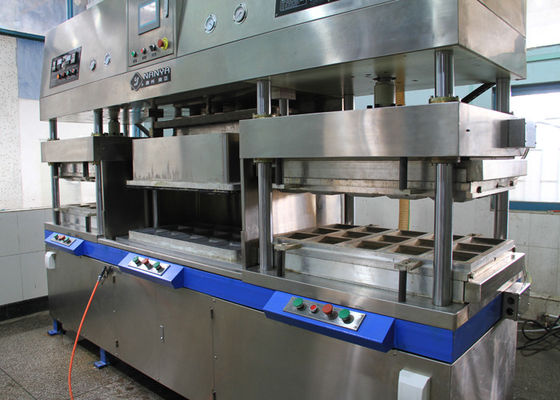

Semi Auto Paper Pulp Molding Take Away Fast Food Box Making Machine 700 Pcs / Hour

Semi Auto Paper Pulp Molding Take Away Fast Food Box Making Machine 700 Pcs / Hour


Specifications:



Description:

• Semi Automatic pulp molding machine
• It’s mainly used for high quality pulp molded products,such as dishware, artware, disposable medical  care products, high quality industrial package...
• We can supply the whole production line, including the hydrapulper system, the forming machine  (forming/drying/pressing integrative machine), and corollary equipments.
• Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
• SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous
•  brand of control parts to obtain excellent performance and universality maintainability.

Working Theory:

• The track or worker carries the raw material into the conveyor ;
• The conveyor pours down the raw material into the hydrapulper mixing with certain mater;
• Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
• The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
• Then the pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum;
• So the wet products are shaped and dried on the working platform from where the worker needs to take away the finished products;
• After that the products need to be edged and disinfected.

Production Information and Our Warranty:

• Status: Brand new
• Product Type: Thermoforming Machine
• Processing Type: Pulp Molding Machine
• Place of origin: Guangzhou China
• Brand: NANYA
• Model Type: TS-01 (So many models to meet different capacity)
• Voltage: 220-440V
• Approval: CE, TUV,SGS, ISO9001
• Warranty: 12 Months
• After-Sale Service: Engineers available to service machinery overseas


Competitive Advantages:

•  Energy saving and labor utilization
•  High quality thermoforming machine, forming, drying, pressing finished automatically in one machine
•  Overseas technical support available
•  Proprietary technology
•  TUV Supplier Assessment Certificate
•  SGS Supplier Assessment Certificate
•  CE Certificate
•  Nanya - Chinese famous trademark
•  30 years experience in this field, Chinese reliable supplier, supported by the government and university.
•  The standing director of Chinese packaging association


Applications:




Business Terms:




Technological Process
