Pulp Molding Tableware Production Line In Vietnam And India

Product Details:

Place of Origin:	China
Brand Name:	NANYA
Certification:	CE...
Model Number:	BY043

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard
Delivery Time:	60-75 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100+

Contact Now

Detailed Product Description

Raw Material:

Bagasse Pulp, Wood Pulp, Straw Pulp, Bamboo Pulp...

Forming Method:

Vacuum Suction&thermoforming

Control:

PLC+touch Screen

After Sales Service:

Engineers On-site Guide Installation

Highlight:

Vietnam Pulp molding tableware production line

Pulp molding tableware production line

India Pulp molding tableware production line

Semi-automatic Tableware Making Machine/ Pulp Plate Making Machine/ Pulp Meal Box Making machine 6-8ton/day

Description Of Pulp Molding Equipment
Pulp molded tableware is made form sustainable food grade virgin paper pulp, like bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
In the process adding food grade chemical agent, forming under dewatering, dry inside special molds, then trimming and disifection.

Specification Of Pulp Molding Equipment

NO.	Item	Information	Notes
1	Target products	Degradable pulp molding dishware
2	Automation	Semi-automatic
2	Automation	(Forming, drying/pressing in one macine)
3	Capacity	250-300 kg per hour
4	Workshop Recommend	>=2000m2	It could be adjusted according to the user's existing workshop
5	Type of Material	virgin pulp	Wood pulp;
			Or bagasse pulp;
			Or bamboo pulp;
			Or straw pulp
6	Material consumption	300-400kg per hour
7a	Electricity consumption	240~300kw	500kw installed
	if heat by conduction oil	240~300kw	500kw installed
	Fuel consumption	Natural gas 80~120m3/h	conduction oil boiler required: thermal power 1200000kcal/h
	if heat by conduction oil	Natural gas 80~120m3/h	conduction oil boiler required: thermal power 1200000kcal/h
7b	Electricity consumption	900~1300kw	1800kw installed
7b	if heat by electricity	(no fuel consumption)	1800kw installed
8	Water consumption	600-800kg/h
9	Chemical for Water Resistance	10~15kg/h
10	Chemical for Oil Resistance	2~ 3kg/h
11	Operator Required	24~26 people/shift

Descriptions:

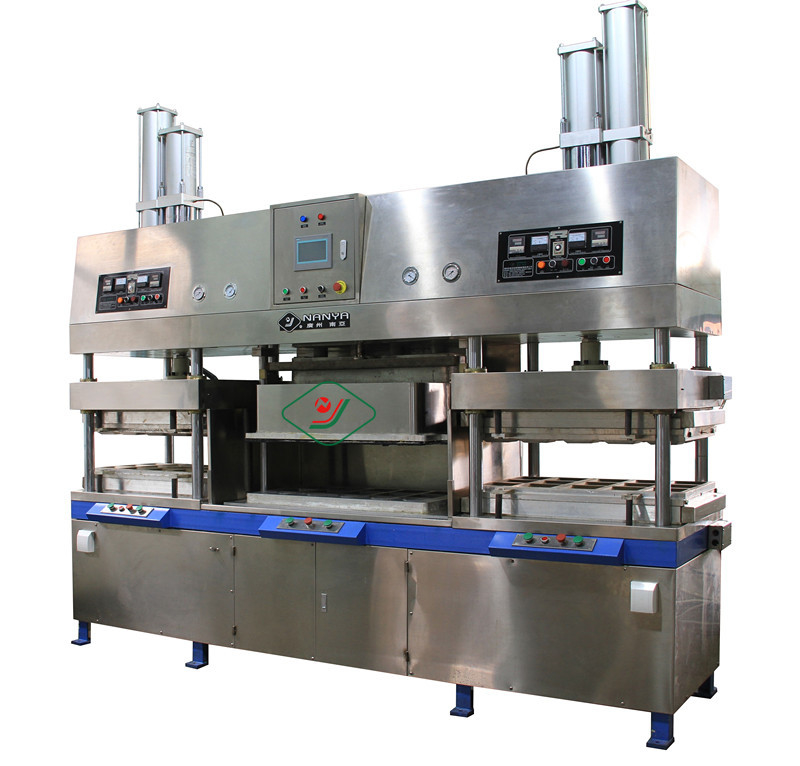

Model: BY043
Semi automatic machine for pulp molding products, need a worker to transfer the wet products.
Mould plate size: 1100×800mm;
Including one forming station + two drying/pressing station.
Forming method: Vacuum sucking (reciprocating type).
Drying method: thermal forming (drying in mold).
Heating by electricity or conduction oil;
Cycle time: 25~35second for tableware products;
Production capacity:6-8 ton/day(24h);
All parts that contact the pulp are stainless steel.
PLC + touch screen control; The main electrical elements are Siemens; The main pneumatic element is FESTO or SMC.

Application Of Pulp Molding Equipment

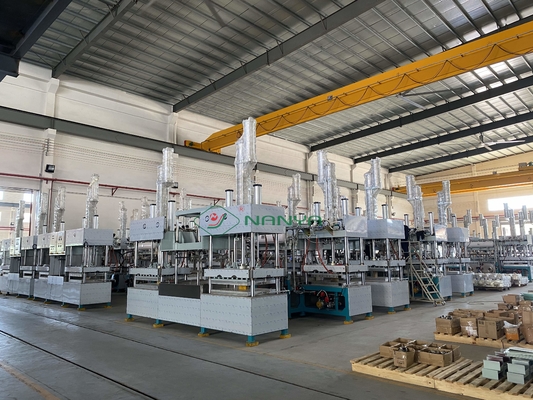

Manufacturing Plant
Tableware making machine

Advantages Of Pulp Molding Equipment
1.Mainly producing the pulp molded products, such as meal box, meal tray, coffee cups, cutlery, etc.
2.Material for the molded pulp products is bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.

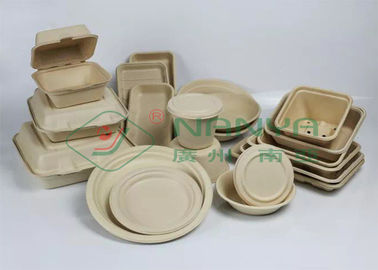

Food container	Dishware, tableware, lunch box, bowl, coffee cups…
Cutlery	Fork, Knife, Spoon

Our services

After-sales Service: Engineers available to service machinery overseas
After Warranty Service: Video technical support, Online support

FAQ:

How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
What can you buy from us?
The whole production line, such as Hydrapulper, Forming machine,etc
What kind of material we can use as the raw material?
Any kind of waste paper like bagasse pulp, bamboo pulp, wood pulp, bulrush pulp, wheat straw pulp and other pulp.
What kind of Fuel can be used for the whole production line?
Electricity, conduction oil.

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China.
3	Delivery time	150days. (if the holiday of Chinese New Year is during the manufacture time, Delivery time should extend 30 days)
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 1 engineer to instruct buyer for installation, test-run and training. All the charges of air ticket, VISA , accommodation and food of the engineer should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90days after the offering date.
