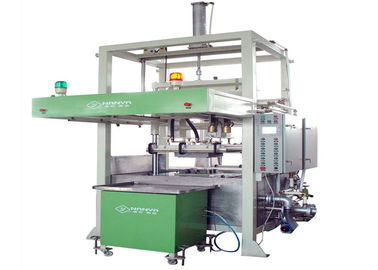

Reciprocating Fully Automatic Industrial Packaging Products Forming Machine

Model Type

CY060

Product Name

Automatic Reciprocating-single cylinder forming machine

 Nominal Voltage

220V±10%

Rated Frequency

50Hz

Absorbing Pulp Time

0~30seconds (Adjustable)

Dehydrating Time

0~30seconds (Adjustable)

Production Cycle

12~60seconds(Adjustable)

Vacuum

-0.07 ~ -0.05MPa

Input Air Pressure

0.5~0.7MPa

Power Consumption

≤1KW

Cylinder Diameter

125mm

Cylinder Route

650 mm

Maximum Height

760mm

Mineral Height

110mm

The Height of the product

≤160mm

Mould Plate Size

1000×660mm

Machine Dimension

2200×2300×3060mm

For this type of machine, we have mould plate sizes of 1200*700mm and 1200*800mm for customer’s choice.

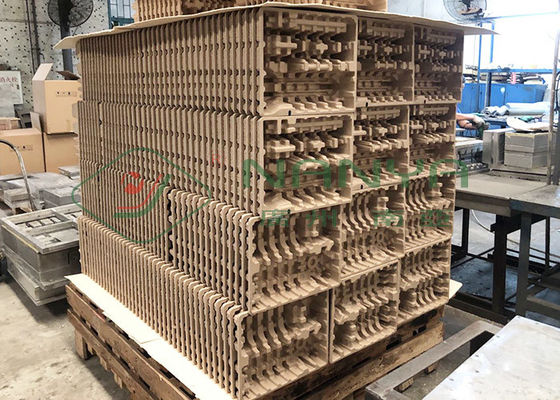

High Quality Packages & Shockproof Packaging

Mobile Phone Package, Camera Package, Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns

Artware

Mask, Christmas Balls, Easter Eggs , Boutiques…

Agricultural products

Fruit tray, seeding cup

Disposable Medical Care Products

Bedpan, Sick Pad, Female Urinal…

NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

30-60 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

1. The seller will send spare parts for one year use by free.
2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
