Horizontal l Hydrapulper Egg Tray Forming Machine , Pulp Molding Equipment

Product Details:

Place of Origin:	China
Brand Name:	Nanya
Certification:	CE/TUV/SGS/ISO9001
Model Number:	ZJ030

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	30~60 days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Machine	Standard:	CE/TUV/SGS/ISO9001
Applications:	Egg Tray, Fruit Tray, Coffee-cup Tray, Medical Tray, Craft...	Processing Material:	Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
After-sales Service Provided:	Engineers Available To Service Overseas	Warranty:	12 Months
Capacity:	3.5-4 Tons/day	Product Dimension:	2200×1400×2000mm
Highlight:	Paper Tray Forming Machine , Tray Forming Equipment

Paper Pulp Molding Horizontal l Hydrapulper for Egg Tray / Fruit Tray / Tableware

Specifications:

Model Type	ZJ030
Product Name	Horizontal Hydrapulper
Capacity	3.5-4 tons/day
Volume	2m³
Dielectric Consistence	4-6%
Power installation	22kw
Voltage	380V
Impeller Knife	Cast Iron
Material Code	Q235 6mm & Cast Iron
Rotational Speed	465r/min
Rotor Diameter	500mm
Driving V-belt	C2900*4
The Inner Diameter of the Tank	1400mm
The Aperture of the Sieve Plate	3~6mm
Product Dimension	2200×1400×2000mm
For Horizontal Hydrapulper, we have 0.4m³,0.8 m³ and 1.5 m³ volumes for customer’s choice.

Descriptions:

A whole pulp-making system includes a hydrapulper, a pulp pump, a water pump and a agitator.
Hydrapulper is the main equipment in pulp making system. It stirs and crushes the raw materials (wasted paper or original pulp plate) of the paper molding products with the help of hydraulic force. Then the hydrapulper mixes them into the water. And the pulp material is formed which meets the requirement and can make the pulp molding products anytime.
The standard model hydrahpulper consists of 0.5m³-5m³specifications. The allocated motor power ranges from 5.5-75kw, which meets the needs of processing of different sizes products quite well. According to clients’ special requirements, the equipments of other specifications and full-stainless can be provided as well.

Production Information and Our Warranty:

Status: Brand new
Model Tpye: ZJ030
Product Type: Paper Pulp Hydrapulper
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Voltage: 380V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Competitive Advantages:

Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 30 years experience in this field, Chinese reliable supplier, supported by the government and university.
The standing director of Chinese packaging association

Applications

Egg tray	20,30,40packed egg tray… quail egg tray

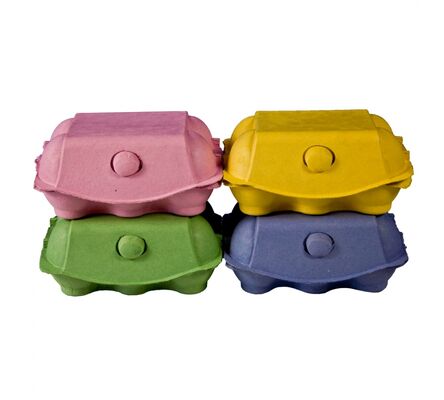

Egg carton	6, 10,12,15,18,24 packed egg carton…
Agricultural products	Fruit tray, seeding cup

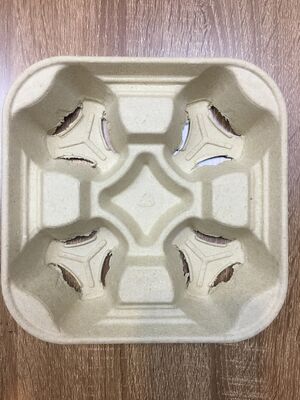

Cup salver	2, 4 cup salver
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
packages	Shoe tree, industrial package…
Food container	Dishware, tableware, lunch box, bowl…
Artware	Mask, Christmas balls, Easter Eggs , boutiques…
Disposable Medical Care Products	Bedpan, sick pad, female urinal…
High quality packages	Mobile phone package, camera package,

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	30-60 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
