Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room

Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room

  • Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room
  • Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room
  • Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room
  • Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room
  • Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room
Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: EC400B-ES3000B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45~75 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 400-3000 Pcs/h
Automation: Semi-automatic Standard: CE/TUV/SGS/ISO9001
Processing Material: Waste Paper / Bagasse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp Voltage: 220 V - 450 V
After-sales Service: Engineers Available To Service Overseas Applications: Egg Tray, Fruit Tray, Coffee-cup Tray, Medical Tray, Craft...
Highlight:

paper pulp molding machinery

,

paper pulp moulding machine

,

Waste Paper Egg Box Making Machine

Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A drying Room





Specifications:



Model Type

ES400-B

ES600-B

ES800-B

ES1200-B

ES2000-B

ES3000-B

Capacity

400pcs/h

600pcs/h

800pcs/h

1200pcs/h

2000pcs/h

3000pcs/h

Hydrapulper

0.5m3, 5.5kw

0.5m3, 5.5kw

1.5m3, 15kw

1.5m3, 15kw

2m3,22kw

2.5m3,27kw

Forming Machine

Plate Size 800*400mm

2pcs/unit

Plate Size 1200*400mm

3pcs/unit

Plate Size 1600*400mm

4pcs/unit

Plate Size 1200*800mm

6pcs/unit

Plate Size 1600*400mm

6pcs/unit

Plate Size 1200*800mm

6pcs/unit

Drying Line

4m×4m×2.5m

6m×4m×2.5m

8m×4m×2.5m

12m×4m×2.5m

12m×6m×2.5m

24m×4m×2.5m

Workshop Requirement

Length≥10m

Width≥10m

Length≥15m

Width≥10m

Length≥15m

Width≥12m

Length≥20m

Width≥12m

Length≥25m

Width≥12m

Length≥27m

Width≥14m

Power Requirement

40kw

45kw

65kw

90kw

110kw

150kw

1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g.

2. For different capacity, customized allocation can be made according to the clients’ requirement.

3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant.





Descriptions:

  • This is a semiautomatic pulp molding production line. Product forming process & drying process are finished through the semi-automatic equipment with workers operating for the connection during the two processes.
  • The production line can be applied to making egg tray, fruit tray, coffee-cup tray, medical tray craftworks as well as inner package for industrial products.
  • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
  • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.
  • The formed products can be dried by drying product line, drying house or under the sunshine directly.
  • There are diversified devices allocations for different specifications. The capacity references for 30-packed egg tray have 400pcs/h, 600pcs/h, 800pcs/h,1200pcs/h, 2000pcs/h and 3000pcs/h and so on.



Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: Semi-automatic egg tray production line
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: ES400-B ~ ES3000-B
  • Voltage: 220V - 440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas



Applications:

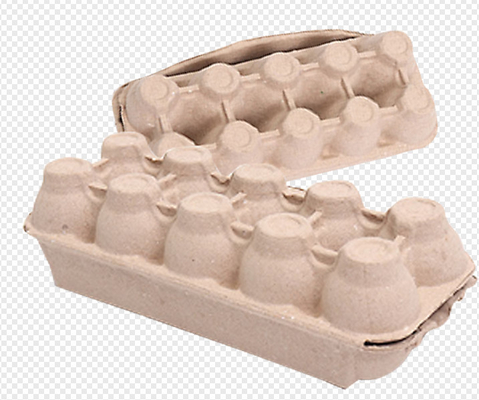

Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room 0





Competitive Advantages:

  • Semiautomatic production line
  • Siemens servo motor is applied
  • Energy saving and labor utilization
  • High quality thermoforming machine, forming, drying, pressing finished automatically in one machine Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 30 years experience in this field, Chinese reliable supplier, supported by the government and university
  • The standing director of Chinese packaging association



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,

70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.

(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.

All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.

Besides, the buyer should pay the engineers subsidy of USD150/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date





Schematic Diagram:



Waste Paper Pulp Molding Egg Tray / Carton / Box Making Machine with A Drying Room 1
