Quality Product Is Our Passion; Service&Innnovation Is Our Mission.

|
| Place of Origin: | China |
| Brand Name: | Nanya |
| Certification: | CE/TUV/SGS/ISO9001 |
| Model Number: | ES400A-ES3000A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 45~75days |
| Payment Terms: | T/T, L/C, Cash or western Union |
| Supply Ability: | 50 sets per month |
| Product Name: | Pulp Molding Machine | Capacity: | 400-3000 Pcs/h |
|---|---|---|---|
| Automation: | Semi-automatic | Forming Type: | Vacuum Suction / Hot-wind Drying |
| Standard: | CE/TUV/SGS/ISO9001 | Processing Material: | Water Paper / Bagasse Pulp / Bamboo Pulp / Straw Pulp / Wood Pulp |
| Voltage: | 220 V - 450 V | After-sales Service: | Engineers Available To Service Overseas |
| High Light: | paper pulp molding machinery,paper pulp moulding machine,Electronic Package Pulp Molding Equipment |
||

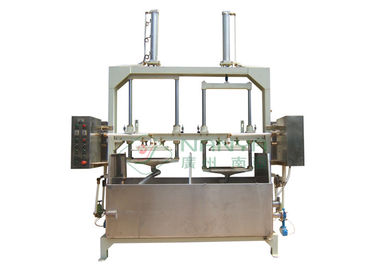

Semi Automatic Paper Pulp Molding Machine Producing Electronic Package
Specifications:
|
Model Type |
ES400-A |
ES600-A |
ES800-A |
ES1200-A |
ES2000-A |
ES3000-A |
|
Capacity |
400pcs/h |
600pcs/h |
800pcs/h |
1200pcs/h |
2000pcs/h |
3000pcs/h |
|
Hydrapulper |
0.5m3, 5.5kw |
0.5m3, 5.5kw |
1.5m3, 15kw |
1.5m3, 15kw |
2.5m3,22kw |
2.5m3,27kw |
|
Forming Machine |
Plate Size 800*400mm 2pcs/unit |
Plate Size 1200*400mm 3pcs/unit |
Plate Size 1600*400mm 4pcs/unit |
Plate Size 1200*800mm 6pcs/unit |
Plate Size 1600*800mm 4*2pcs/unit |
Plate Size 1200*800mm 6*2pcs/unit |
|
Drying Line |
8m×2.5m×3m |
14m×2.2m×3m |
14m×2.5m×3m |
20m×2.5m×3m |
30m×2.5m×3m |
40m×3m×3m |
|
Workshop Requirement |
Length≥15m Width≥10m |
Length≥20m Width≥10m |
Length≥20m Width≥12m |
Length≥30m Width≥12m |
Length≥40m Width≥12m |
Length≥50m Width≥12m |
|
Power Requirement |
40kw |
45kw |
70kw |
95kw |
125kw |
160kw |
|
1. The product of the equipment is the 30-packed egg tray with the size 300*300mm and the dry weight 65g-70g. 2. For different capacity, customized allocation can be made according to the clients’ requirement i 3. Workshop size is only for reference and it can be slightly adjusted according to actual size of client’s plant. |
||||||
Descriptions:
Production Information and Our Warranty:
Applications:
|

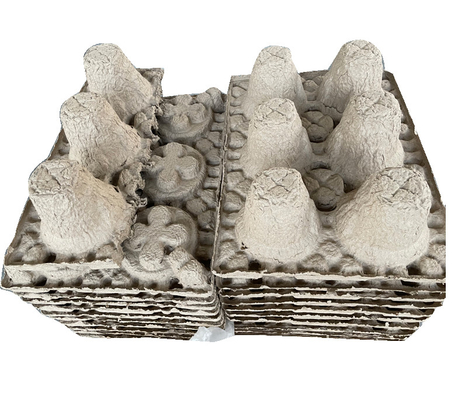

Egg tray |
20,30,40packed egg tray… quail egg tray |
|
Egg carton |
6, 10,12,15,18,24 packed egg carton… |
|
Agricultural products |
Fruit tray, seeding cup |
|
Cup salver |
2, 4 cup salver |
|
Disposable Medical Care Products |
Bedpan, sick pad, female urinal… |
|
packages |
Shoe tree, industrial package… |
 |
|
Competitive Advantages:
Business Terms
|
NO. |
ITEM |
DESCRIPTION |
|
1 |
Payment Terms |
30% down payment by T/T, 70% before shipment by T/T or L/C at sight |
|
2 |
Delivery Terms |
FOB Guangzhou, China. |
|
3 |
Delivery Time |
45-75 days |
|
4 |
Packages |
Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support. |
|
5 |
Installation |
Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD200/person/day and offer translation service. |
|
6 |
Warranty |
12 months after installation |
|
7 |
After service |
|
|
8 |
Quotation Validity |
90days after the offering date |
Schematic Diagram:
