Thermoforming Paper Pulp Molding Equipment For Top Grade Fine Molded Pulp Products

Name: Thermoforming Paper Pulp Molding Equipment For Top Grade Fine Molded Pulp Products
Brand: Nanya
SKU: HF01~HF10
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (152 reviews)

Product Details:

Place of Origin:	China(mainland)
Brand Name:	Nanya
Certification:	CE,TUV,SGS, ISO9001
Model Number:	HF01~HF10

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	60-120 Days
Payment Terms:	T/T, L/C, Cash, Western Union
Supply Ability:	1000 sets/year

Contact Now

Detailed Product Description

Processing Material:	Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp	Fuel:	Diesel, Heavy Oil, LPG, Natural Gas, Coal, Wood, Steam…
Capacity:	30~300 Kg/h	Forming Type:	Thermoforming Drying
After-Sale Service:	Engineers Available To Service Machinery Overseas	Automation:	Fully-automatic
Warranty:	12 Months	Applications:	Top Grade Fine Packaging Products
High Light:	Pulp Molding Machinery , Pulp Moulding Machinery , Egg Tray Thermoforming Machine

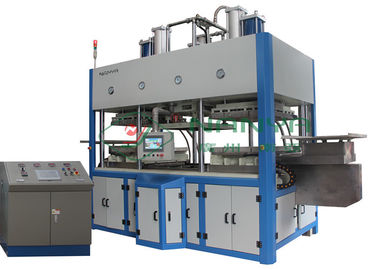

Fully Automatic Pulp Molding Egg Tray Thermoforming Machine 30 kg To 300 kg Per Hour

Specifications:

Model	HF-01	HF-02	HF-05	HF-10
Capacity	30kg/h	60kg/h	150kg/h	300kg/h
Main Machine Model & Quantity	YC011—1set	YC011—2sets	YC011—5sets	YC011—10sets
Heating Method	Electricity	Electricity	Heat Conduction	Heat Conduction
Workshop Requirement	200 m²	300 m²	600 m²	1000 m²
Power Installation	150kw	250kw	220kw	400kw
Material Consumption	20~25kg/h	50~60kg/h	120~140kg/h	240~280kg/h
Water Consumption	80~100kg/h	150~200kg/h	500~800kg/h	1000~1600kg/h
Workers Requirement	3 persons	4 persons	6 persons	8 persons
Container Requirement for Shipment	1 x 40’HQ	2 x 40’HQ	4 x 40’HQ	8 x 40’HQ
Forming Type	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming	Vacuum suction, thermoforming
Drying Method	Drying in mould	Drying in mould	Drying in mould	Drying in mould

Descriptions:

After wet pressing process, products will be dry in the mould completely.
This machine can apply to manufacture high quality pulp molding products, such as high-grade packaging, craft products, decoration and etc.
The machine makes sure each surface of product is smooth, which increases the value of the products. Besides, this kind of machine supports some special design printing, like company’s logo, which will certainly improves company’s image.
Products with high density and good strength and they won’t be out of shape.
With thin thickness, reduce the raw material. Easy package and piled, reduced transportation cost and improve economic benefits.
Less area of the workshop required.
Add some additives in the process to get special usability requirement. EG: waterproof, oil-proof, anti-static and etc.
The procedures of forming, drying and hot-press shaping are completed in one machine automatically.
By adopting the international famous brand controls, the machine performs reliably.
The machine has wide range of application and it can produce various specifications and different thickness of production by changing the moulds.

Product Information & Our Warranty:

Fully Automatic Production Line for High-grade Pulp Molding Products
Mainly used for the products with various structures but in big quantity, such as high-grade packaging, craft products and decration, masks and inside industiral packaging for electronic devices and so on.
Status: Brand new
Product Type: Production line for high-grade pulp molding products
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type:HF-01~HF-10
Voltage: 220V-440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Competitive Advantages:

Fully automatic
Energy saving and labor utilization
High quality production line machine for pulp molding products
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
20 years experience in this field, Chinese reliable supplier, supported by the government and university.
The standing director of Chinese packaging association

Applications:

Inner Industrial Package for	Electrical Equipment
	Electric Tools
	Car Parts
	Lamp & Lanterns
	Shoe Tree
	Compressor of Air-condition
	Electronic Products
	Instrument
	Communication Apparatus

Business Terms:

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	60-120 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
