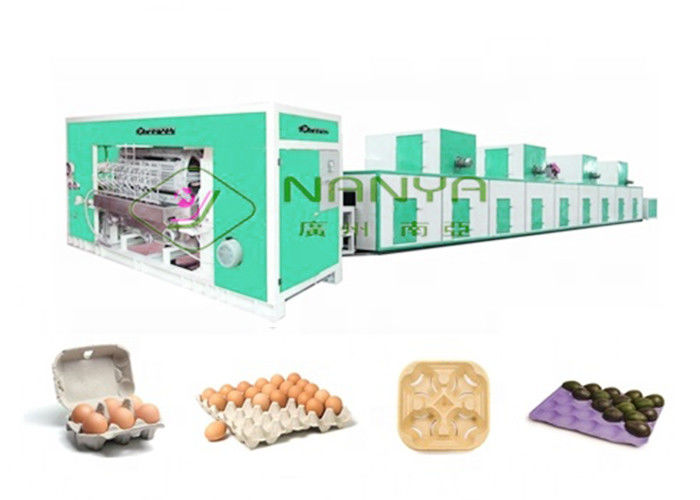

Raper Egg Carton 6000pcs/hour Rotary Molding Machine

Raper Egg Carton 6000pcs/hour Rotary Molding Machine

  • Raper Egg Carton 6000pcs/hour Rotary Molding Machine
  • Raper Egg Carton 6000pcs/hour Rotary Molding Machine
  • Raper Egg Carton 6000pcs/hour Rotary Molding Machine
  • Raper Egg Carton 6000pcs/hour Rotary Molding Machine
Raper Egg Carton 6000pcs/hour Rotary Molding Machine
Product Details:
Place of Origin: China(mainland)
Brand Name: NANYA
Certification: CE
Model Number: ER3000-A~ER6000-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: Normally 90-120 days
Payment Terms: L/C, T/T, Cash, Western Union
Supply Ability: 1000sets/year
Contact Now
Detailed Product Description
Product Name: Egg Tray Machine Process Type: Pulp Molding Equipment
Output: 3000~6000pcs/hour Forming Type: Rotary Forming + Transfer
Dryer Type: Single Layer Automatic Dryer Dryer Fuel: Egg Tray/Egg Carton/Cup Carrier...
Raw Material: Recycle Paper/waste Carton/newspaper Max. Product Height: 70mm
Warranty: 1 Year After Installation Control By: PLC + Touchscreen
High Light:

6000pcs/hour Rotary Molding Machine

,

800m2 Egg Tray Rotary Molding Machine

,

220kw Pulp Molding Equipment

Chicken Farm Recycle Paper Egg Tray / Egg Carton Rotary Molding Machine

Specifications:

Model Type

ER3000-A

ER4000-A

ER5000-A

ER6000-A

Capacity

3000pcs/hour

4000pcs/hour

5000pcs/hour

6000pcs/hour

Workshop Requirement

500m2

600m2

700m2

800m2

Electricity Consumption

~120kw
(180kw installed)

~160kw
(250kw installed)

~200kw
(300kw installed)

~220kw
(360kw installed)

Material Consumption

180~210kg/h

250~280kg/h

320~350kg/h

360~400kg/h

Water Consumption

600~800kg/h

800~1000kg/h

1000~1200kg/h

1200~1400kg/h

Worker Requirement

4~5person

4~5person

4~5person

5~6person

Container Requirement for Shipment

6 x 40HQ

7 x 40HQ

8 x 40HQ

9 x 40HQ

Forming Machine

Rotary type with 8 plates. Each for 3pcs/time

Rotary type with 8 plates. Each for 4pcs/time

Rotary type with 8 plates. Each for 5pcs/time

Rotary type with 8 plates. Each for 6pcs/time

Drying Production Line

42mx2.2mx3.6m

42mx2.6mx3.6m

42mx3.0mx3.6m

42mx3.4mx3.6m

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Fuel Consumption (One Item Selectable)

Type

ER3000-A

ER4000-A

ER5000-A

ER6000-A

Natural Gas

60~70m3/h

80~90m3/h

100~110m3/h

110~120m3/h

LPG

21~24m3/h

28~32m3/h

35~39m3/h

40~45m3/h

Diesel

50~60kg/h

68~76kg/h

85~92kg/h

95~100kg/h

Heavy Oil

52~62m3/h

70~80kg/h

88~95kg/h

98~105kg/h

Steam

1.1~1.3ton/h

1.4~1.6ton/h

1.7~1.9ton/h

1.9~2.2ton/h

Wood

210~240kg/h

280~320kg/h

350~390kg/h

400~450kg/h

Coal

140~160kg/h

180~210kg/h

220~250kg/h

260~300kg/h


Descriptions:

  • This is a Fully Automatic Egg Tray Production Line, with high automation and save lobor.
  • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single layer drying line, and corollary equipments.
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, egg boxes, cup carriers and disposable medical care products and etc.
  • The raw material is the waste paper, waste carton, used paper, books, magazines and etc, which can be got at cheap price.
  • It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
  • Applys International famous brand of control parts to obtain excellent performance and universality maintainability.



Working Theory:



  • The track or worker carries the raw material into the hydrapulper firstly;
  • Then hydrapulper mixing the raw material with certain mater;
  • Then the mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency.
  • The pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum.
  • Finally the wet products will move into the drying line automatically. Then the dried products will go into stacker and get packed.



YOUTUBE Links:



3000pcs/h with single layer dryer: https://www.youtube.com/watch?v=CX9NgjBZ0Nk



4000pcs/h with single layer dryer: https://www.youtube.com/watch?v=JCu3xNpnCsM



6000pcs/h with single layer dryer: https://www.youtube.com/watch?v=9XpyL-ggwi4



4000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s



6000pcs/h with 6 layers dryer: https://www.youtube.com/watch?v=YIeLPQnwO4M



Rotray Forming Machine Photo:

Raper Egg Carton 6000pcs/hour Rotary Molding Machine 0



30 Cells Egg Tray Image:

Raper Egg Carton 6000pcs/hour Rotary Molding Machine 1

Business Terms:

NO.

ITEM

DESCRIPTION

1

Payment Terms

T/T, L/C at sight

2

Delivery Terms

FOB Guangzhou, China OR CNF OR CIF terms.

3

Delivery Time

90~120 days

4

Packages

Packages suitable for ocean transport.

The small parts are packaged by wooden boxes.

The big parts are protected by wooden support.

5

Installation

Overseas engineering service is available

6

Warranty

12 months after installation

7

After service

We will send some spare parts to use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation.

8

Quotation Validity

90 days after the offering date



Competitive Advantages:

  • Established in 1994, NANYA is the earliest Pulp Molding manufacturer in China;
  • Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
  • NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
  • NANYA factory covers an area of 20,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 50 countries and regions;
  • Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.
