Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery

Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery

  • Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery
  • Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery
  • Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery
  • Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery
Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: ER3000-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export Standard Packing
Delivery Time: Normally 45-75 days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 20 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 3000Pcs / H
Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp After-sales Service Provided: Engineers Available To Service Overseas
Voltage: 220 V - 450 V Standard: CE/TUV/SGS/ISO9001
Applications: Egg Tray, Egg Carton, Medical Tray, Craftworks Drying Type: Hot-wind Drying
High Light:

Egg Tray Production Line

,

Egg Tray Forming Machine

Full Auto Rotary Industrial Package Egg Tray Machine / Energy Recycling Egg Carton Machinery


Specifications:



Model Type

ER3000-A

Capacity

3000 pcs/hour

Workshop Requirement

500 m2

Electricity Consumption

~120 kw

Electricity Installed

180 kw

Material Consumption

180~210 kg/h

Water Consumption

600~800 kg/h

Worker Requirement

4~5 persons

Container Requirement for Shipment

6 x 40 HQ

Forming Machine(Rotary Type)

 Rotary type with 8 plates. Each for 3 pcs / time

Drying Line

42x2.2x3.6 m   1-Layer

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Fuel Consumption   (One Item Selectable)



Natural gas

60~70 m3/h

LPG

21~24 m3/h

Diesel

50~60 kg/h

Heavy Oil

52~62 kg/h

Steam

1.1~1.3 ton/h

Wood

210~240 kg/h

Coal

140~ 160 kg/h



Descriptions:

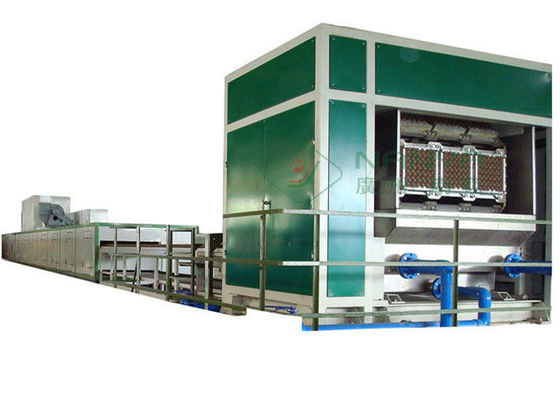

  • It’s a fully automatic egg tray production line
  • Mainly used for the products with simple structure but in big quantity, such as egg trays, egg carton, fruit trays, cup carriers and disposable medical care products.
  • This type of production line is constituted by a hydrapulper system, a rotary type forming machine, a single-layer drying line, and corollary equipments.
  • Products comes out  automatically from waster paper or other type of paper. It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts. Apply International famous brand of control parts to obtain excellent performance and universality maintainability.


Production Information and Our Warranty:

  • Status: Brand New
  • Product Type: Egg Tray Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong, China
  • Brand: NANYA
  • Model Type: ER3000-A
  • Voltage: 220V - 450V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas


Applications:

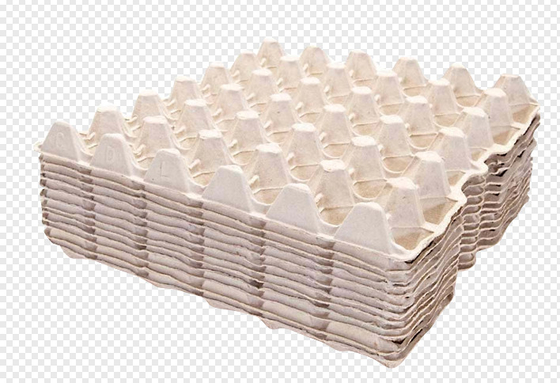

Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Cup salver

2, 4 cup salver

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

packages

Shoe tree, industrial package…

Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery 0



Competitive Advantages:

  • Fully automatic production line
  • Overseas technical support available
  • Proprietary technology
  • TUV Supplier Assessment Certificate
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and universities.
  • The standing director of Chinese packaging association


Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date





Full Auto Rotary Egg Tray Machine 3000pcs per hour / Energy Recycling Egg Carton Machinery 1
