8 Ton / Day Paper Tray Molding Machine

8 Ton / Day Paper Tray Molding Machine

  • 8 Ton / Day Paper Tray Molding Machine
  • 8 Ton / Day Paper Tray Molding Machine
  • 8 Ton / Day Paper Tray Molding Machine
8 Ton / Day Paper Tray Molding Machine
Product Details:
Place of Origin: Guangdong, China
Brand Name: NANYA
Certification: CE
Model Number: TS-10B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: Strong and Suitable for Marine Shipment
Delivery Time: 75days
Payment Terms: T/T, L/C, Cash or western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Paper Plate Making Machine Automation: Semi-automated
Heating Source: Electricity Or Thermo-oil Control System: PLC + Touch Screen Control, Siemens
Raw Material: Bagasse Pulp / Bamboo Pulp / Wood Pulp... Drying Method: Drying And Hot Pressing In Mold
Capacity: 6~8 Ton Per Day Application: Plate / Tray / Bowl / Cup / Lunch Box
Forming Way: Reciprocating Voltage: Match Local Voltage
High Light:

paper plate manufacturing machine

,

paper plates making machine

 Compostable Semi- Auto Wood Pulp Plate / Paper Tray Molding Machine ​




Main Advantages:


1. Save initial investment amount;

2. Suitable to apply to the countries or areas where the labor cost is cheaper;

3. The mold cost for semi automatic tableware machine is cheaper;

4. Simple and convenient to operate and maintain.



Specifications:


Machine Name Compostable Paper Plate Making Machine
Mold Platen Size 1100*800mm

Capacity

6~8 ton/day

Automation Semiautomatic (Could be improved to fully automatic by match additional robot)

Workshop Required

≥1000 m2

Electricity Consumption

220 kw

Electricity Installed

380 kw

If Heat by Conduction Oil Natural Gas: 60~90m³/h
Raw Material bagasse pulp/bamboo pulp/straw pulp/wood pulp
Application All kinds of tablware, such as Plate / Tray / Bowl / Cup / Lunch Box, etc

Material Consumption

250~ 350 kg/h

Water Consumption

600 ~ 800 kg/h

Worker Requirement

22 persons

Container Requirement for Shipment

5 x 40’ HQ



Descriptions:


1.This is a Semi Automatic Pulp Molding Tableware Production Line, around 6~8 ton per day capacity.

2. This line Could be improved to fully automatic by match additional robots.

3. The production line is constituted by a hydrapulper system, a semi automatic thermoforming machine(forming/drying/pressing integrative machine), and auxiliary equipments.

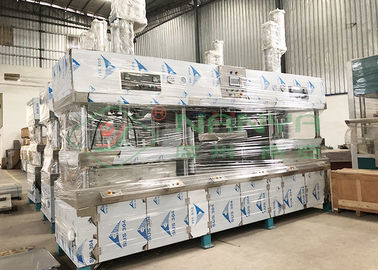

Main Forming Machine Photo:

8 Ton / Day Paper Tray Molding Machine 0



Finished Products:


  1. Tableware, dinnerware, Plate / Tray / Bowl / Cup / Lunch Box
  2. For jewelre box, wine box, tea box, makeup box;
  3. For high-grade electronics products, tools, hardware etc and etc
  4. Artware, like Mask, Christmas balls, Easter Eggs , boutiques…

The below are tableware items made by our machine, by changing moulds, the machine can make different products.

8 Ton / Day Paper Tray Molding Machine 1

Working Theory:



Pulping System:
Clean virgin paper will be made into pulp with certain concentration through pulping screening, grinding and addition of chemical agents.Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet.
Forming And Hot-Pressing System (with the function of forming, drying, hot pressing and stacking): The pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; the products can be transferred and stacked by workers or by robot arms.
Vacuum System: Supply vacuum for forming machine.
Air Compressor System: Supply compressed air for forming machine.
Cementing Machine & Laminating Machine: Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines.
Cutting System(Edge Trimming Machine): Cutting the extra edges of products, to get more compact and neat edge.
Disinfect System: UV or microwave disfect, then go to package



YOUTUBE Links:

Semi Automatic Paper Plate Machine   https://youtu.be/h56dWHyexI0
For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us.
